SMA Series RF Coaxial Connector,SMA-JW-1.5 right-angle male connector

  • SMA Series RF Coaxial Connector,SMA-JW-1.5 right-angle male connector
  • SMA Series RF Coaxial Connector,SMA-JW-1.5 right-angle male connector
  • SMA Series RF Coaxial Connector,SMA-JW-1.5 right-angle male connector
  • SMA Series RF Coaxial Connector,SMA-JW-1.5 right-angle male connector
Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number SMA-JW-1.5 right-angle male connector
Minimum Order Quantity 100 pcs
Price 10$-150$
Packaging Details standard export package
Delivery Time 2-9 weeks
Payment Terms T/T, L/C, Western Union
Supply Ability 100,000pcs per month
Product Details
Mechanical Life 500 Plug And Unplug Times Dielectric Withstand Voltage 1000V
Characteristic Impedance 50Ω Insulation Resistance ≥5000MΩ
Working Voltage 330V Center Conductor Resistance <3mΩ
Ambient Temperature -55°C～+155° Outer Conductor <2mΩ
Highlight

SMA right-angle male connector

,

SMA-JW-1.5 RF connector

,

custom SMA coaxial connector
Leave a Message
Product Description
SMA-JW-1.5 right-angle male connector

Product introduction:

a. It has the advantages of small size, wide frequency range, reliable mechanical and electrical performance, etc. It is currently the most widely used coaxial RF connector.

b. Used in communications, aerospace, navigation, weapon systems and microwave measurement equipment and other fields.

Main Technical Parameters:

Parameter Specification
Frequency Range Flexible Cable: 0～12.4GHz

Semi-Flexible Cable: 0～18GHz
Ambient Temperature -55°C～+155°C
Characteristic Impedance 50Ω
Voltage Standing Wave Ratio (VSWR) With Soft Cable: ≤1.15+0.02F

With Semi-Rigid And Semi-Flexible Cables: ≤1.10+0.02F
Insulation Resistance ≥5000MΩ
Working Voltage 330V
Dielectric Withstand Voltage 1000V
Contact Resistance Center Conductor: <3mΩ

Outer Conductor: <2mΩ
Mechanical Life 500 Plug And Unplug Times
Partial Fit Size (mm):

SMA Series Jack Contact Connector Interface:

SMA Series RF Coaxial Connector,SMA-JW-1.5 right-angle male connector 0
Symbol Min (mm) Max (mm)
B 1.27 (nominal) 1.27 (nominal)
C 4.6 4.67
D 1/4-36UNS-2A 1/4-36UNS-2A
E 1.88 1.98
F 4.32 --
G 5.54 --

SMA Series Pin Contact Connector Interface:
SMA Series RF Coaxial Connector,SMA-JW-1.5 right-angle male connector 1
Symbol Min (mm) Max (mm)
A 0.9 0.94
B 1.27 (nominal) 1.27 (nominal)
C 4.34 4.59
D 1/4-36UNS-2B 1/4-36UNS-2B
E -- 3.43

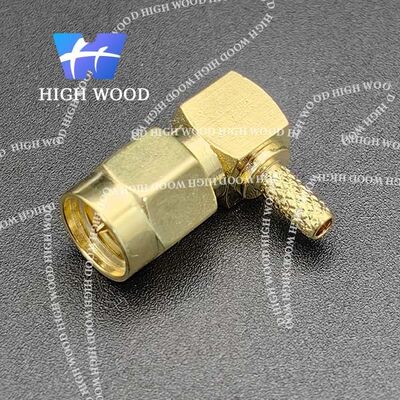

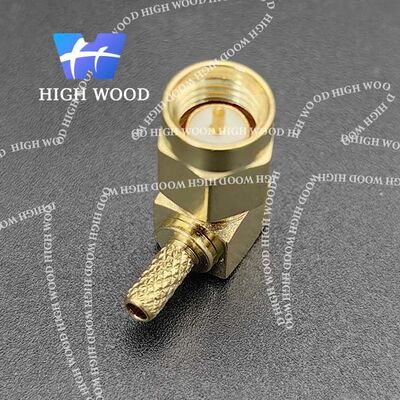

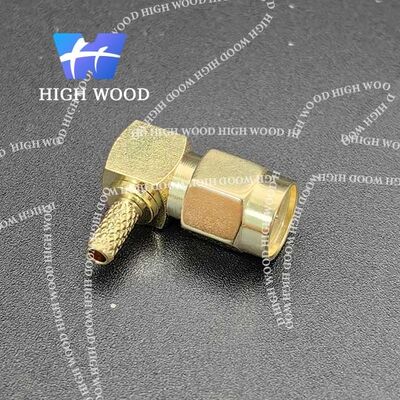

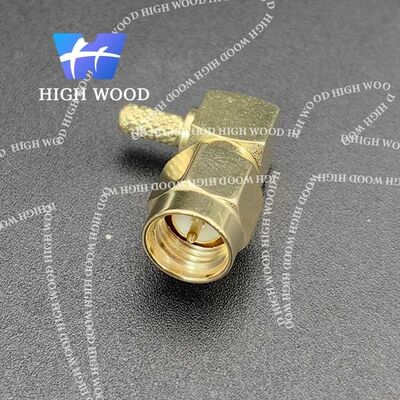

Product Display:
SMA Series RF Coaxial Connector,SMA-JW-1.5 right-angle male connector 2SMA Series RF Coaxial Connector,SMA-JW-1.5 right-angle male connector 3SMA Series RF Coaxial Connector,SMA-JW-1.5 right-angle male connector 4SMA Series RF Coaxial Connector,SMA-JW-1.5 right-angle male connector 5
