Aptiv Metri-Pack 280 Series Automotive Connectors HW280-028P2H26MTNNA
| Place of Origin | China |
|---|---|
| Brand Name | HIGH WOOD |
| Certification | AS9001 |
| Model Number | HW280-028P2H26MTNNA |
| Minimum Order Quantity | 100pcs |
| Price | 10$-150$ |
| Packaging Details | Standard export package |
| Delivery Time | 2-9weeks |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 50，000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shell Material | PPS+fiberglass | Withstand Voltage | 1000V AC |
|---|---|---|---|
| Insulation Resistance | ≥5000MΩ | Rated Current | 5A |
| Vibration | Random,power Spectral Density 43.92G | Impact | 300G |
| Temperature | -65℃~+200℃ | Waterproof | IP67 |
| High Light | IP67 Automotive Connectors,HW280-028P2H26MTNNA |
||
Product Description
HW280-028P2H26MTNNA
Low profile right angle PC tail HiPer-D® pin connectors feature rugged machined aluminum shell and stainless steel cover for improved EMI protection. Contacts are non-removable, size #20 or #22. Intermateable with standard M24308-type D-Subminiature connectors, the HiPer-D® features a resilient face seal for environmental protection and optional ground springs for improved resistance to electromagnetic interference. Threaded holes on the bottom of the connector allow attachment to circuit board. Contacts are potted with epoxy. Glass-reinforced thermoset epoxy insulators, fluorosilicone face seal. 1000 VAC, 5 Amps (#22) or 7.5 Amps (#20).
How to order:
| HW | 280-028P | 4H62 | ME | G | N | A | |
| Basic Part Number |
HW280-028P
|
||||||
|
Shell Size Contact Arrangement |
See Shell Size - Contact Arrangements Table | ||||||
| Shell Finish |
ME = Electroless Nickel MT = Nickel-PTFE JF = Cadmium with Yellow Chromate Z2 = Gold Z1 = Passivated Stainless Steel |
||||||
|
Ground Spring
|
G = Supplied with EMI Ground Spring N = No Ground Spring |
||||||
|
Mating Hardware
|
N = No Hardware (supplied with #4-40 tapped holes) P = #4-40 Female Jackposts |
||||||
| PC Tail Length | A = .125 (3.18) Tail Length B = .250 (6.35) Tail Length | ||||||

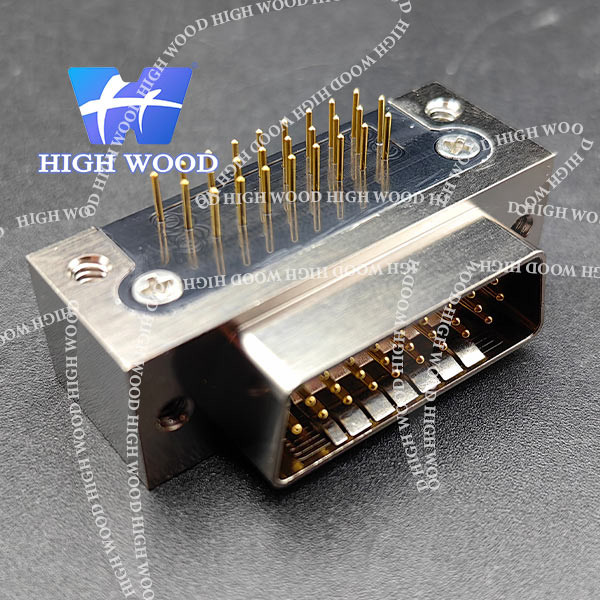

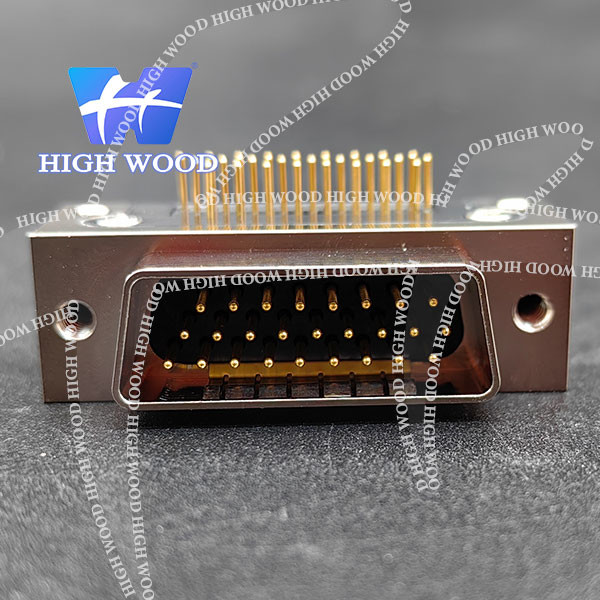

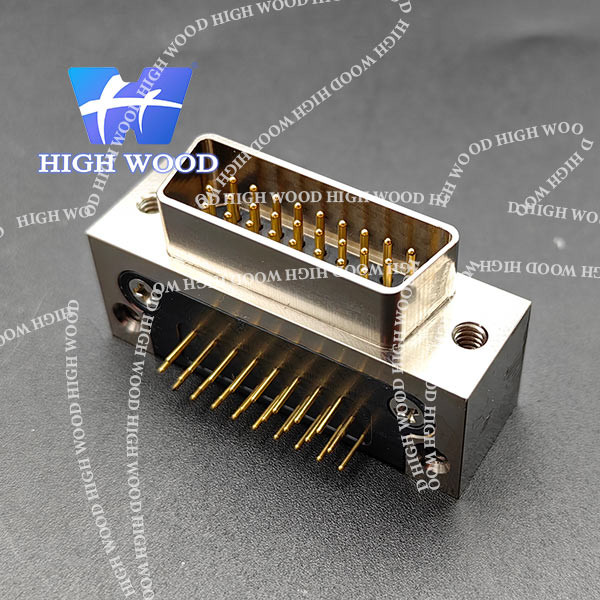

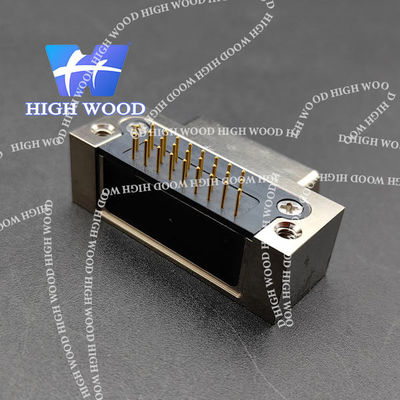

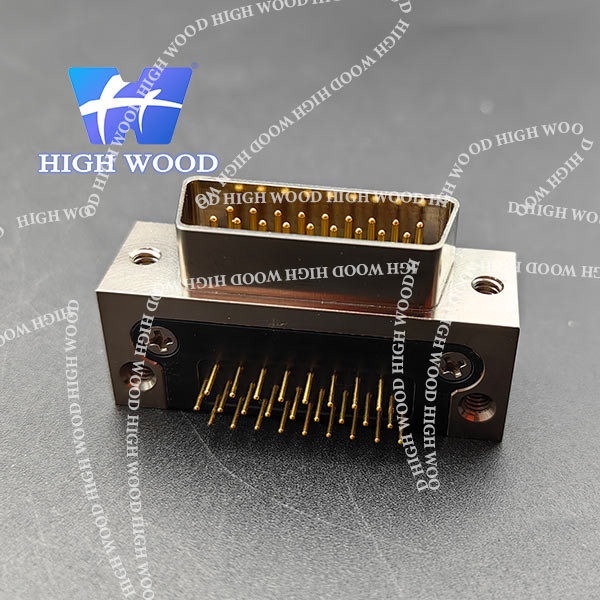

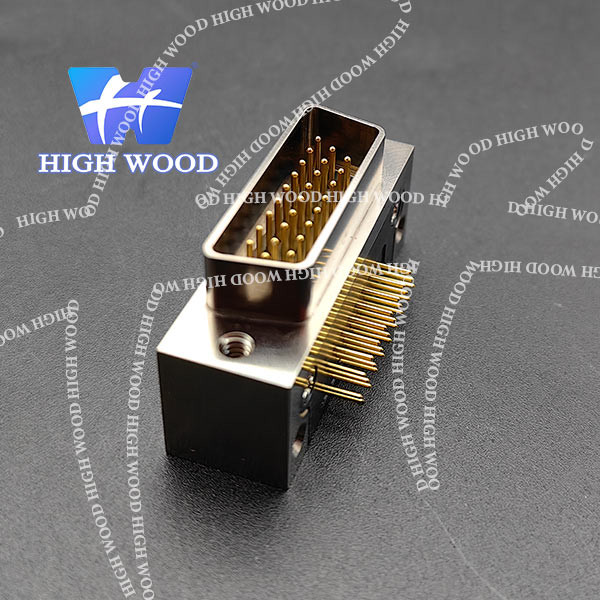

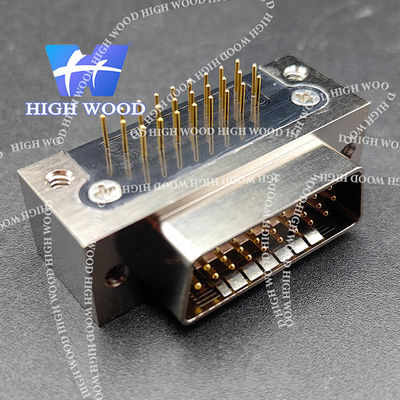

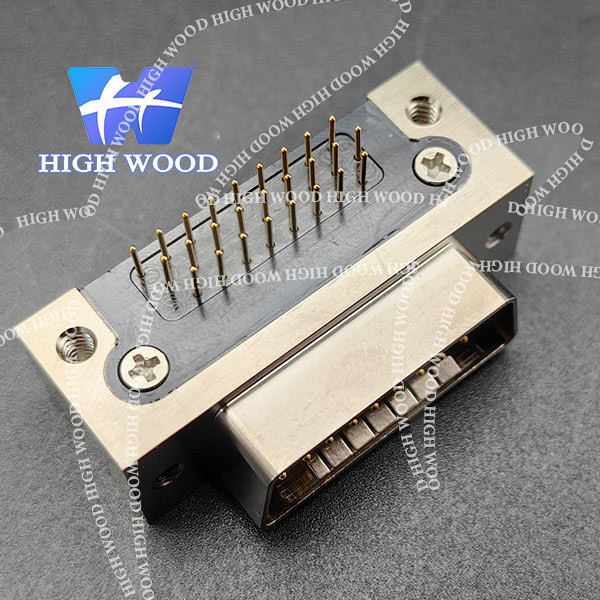

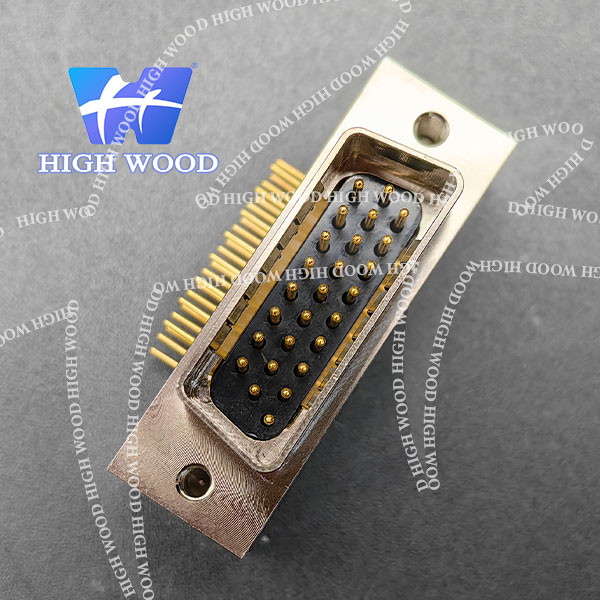

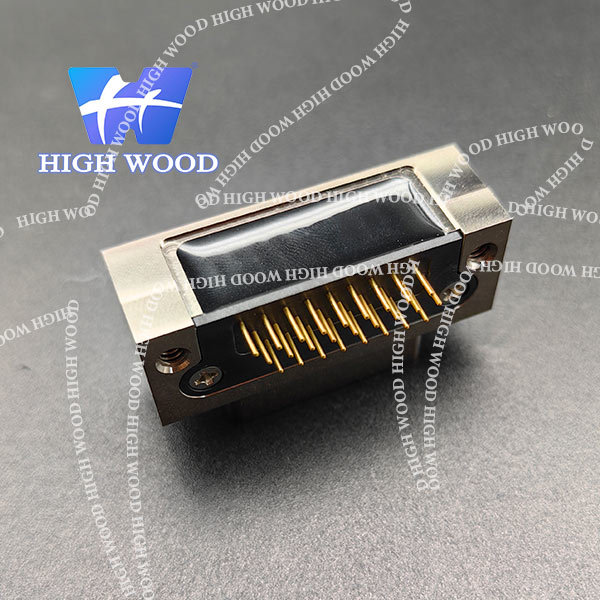

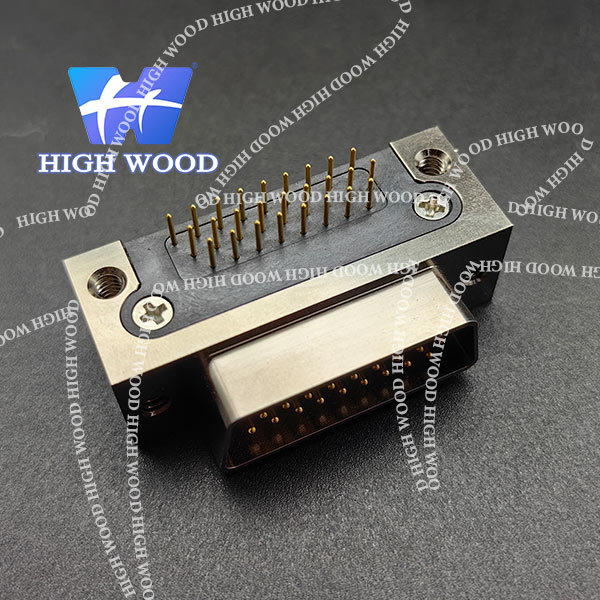

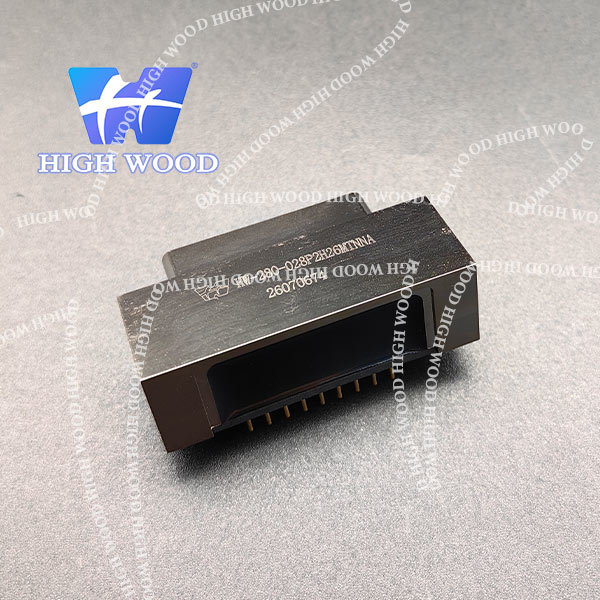

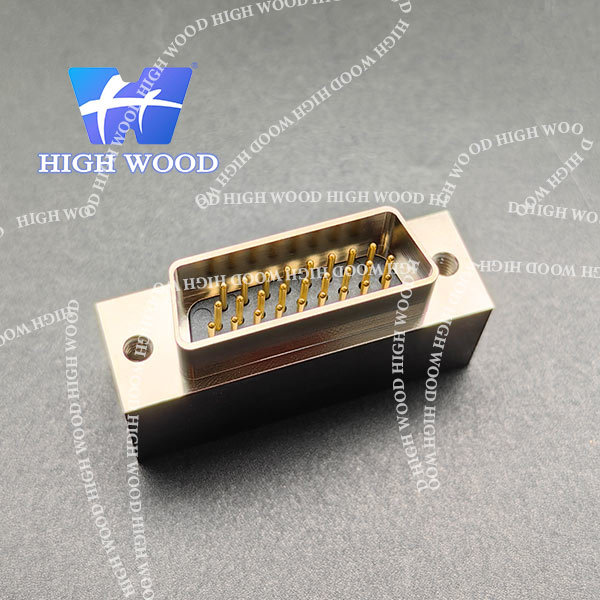

Product pictures:
Shell Size - Contact Arrangements:
| Shell Size- Contact Arr. | Contact Size and Qty | |
| #20 | #22 | |
| Standard Density | ||
| 1S9 | 9 | |
| 2S15 | 15 | |
| 3S25 | 25 | |
| 4S37 | 37 | |
| 5S50 | 50 | |
| High Density | ||
| 1H15 | 15 | |
| 2H26 | 26 | |
| 3H44 | 44 | |
| 4H62 | 62 | |
| 5H78 | 78 | |
| 6H104 | 104 | |
Materials and Finishes:
| Shell | Aluminum alloy |
| Contacts | Copper alloy, 50 microin. gold plated |
| Insulators | Thermoset epoxy |
| Potting Compound | Epoxy |
| Interfacial Seal | Fluorosilicone rubber |
| Hardware | 300 series stainless steel |
Specifications:
| Current Rating | #22 5 AMPS, #20 7.5 AMPS |
| Test Voltage | 1000 VAC RMS |
| Insulation Resistance | 5000 megohms minimum |
| Operating Temperature | -65° C. to +200° C. |
| Ingress Protection | IP 67 |
| Shock | 300 g. |
| Vibration, Random | 43.92 g. |
Shell Size:
|
Shell Size |
A | B | C Basic | D | E | |||||
|
in ± .015 |
mm ± 0.38 |
in ± .015 |
mm ± 0.38 |
in. |
mm |
in ± .005 |
mm ± 0.13 |
in ± .005 |
mm ± 0.13 |
|
| 1 | 1.213 | 30.81 | .494 | 12.55 | .984 | 24.99 | .726 | 18.44 | .389 | 9.88 |
| 2 | 1.541 | 39.14 | .494 | 12.55 | 1.312 | 33.32 | 1.054 | 26.77 | .389 | 9.88 |
| 3 | 2.088 | 53.04 | .494 | 12.55 | 1.852 | 47.04 | 1.594 | 40.49 | .389 | 9.88 |
| 4 | 2.729 | 69.32 | .494 | 12.55 | 2.500 | 63.50 | 2.242 | 56.95 | .389 | 9.88 |
| 5 | 2.635 | 66.93 | .605 | 15.37 | 2.406 | 61.11 | 2.139 | 54.33 | .501 | 12.73 |
| 6 | 2.729 | 69.32 | .668 | 16.97 | 2.500 | 63.50 | 2.272 | 57.71 | .563 | 14.30 |
