S6(ARINC600) SERIES CONNECTOR,S6GM2ZPY0112-G.

Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number S6GM2ZPY0112-G
Minimum Order Quantity 100pcs
Price 10$-150$
Packaging Details Standard export package
Delivery Time 2-9weeks
Payment Terms T/T, L/C, Western Union
Supply Ability 100,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Shock 11ms Half Sine Wave Acceleration 50G Insulation Resistance > 5000M (500V DC)
Temperature -65℃~+150℃ Endurance 500 Cycles
Insertion Loss ≤0.5dB Salt Spray Class F: 96h W: 500h M: 192h (acidic Atmosphere)
Leave a Message
Product Description

S6GM2ZPY0112-G

  • Compliant with ARINC600 standard
    Error-proof using hexagonal encoding with 99 error-proof keys
    Different materials and coatings can be selected for the housing to suit different environmental requirements
    Mix common low frequency, power supply, high frequency, high speed differential and light contact parts for
    integrated signal transmission
    Modular structure design allows users to choose different combinations of modules according to their usage
    requirements
    Standard 8#RF contacts use frequency 0~500MHz, floating 8#RF contacts use frequency 0~18GHz


How to order:

S6(ARINC600) SERIES CONNECTOR,S6GM2ZPY0112-G. 0



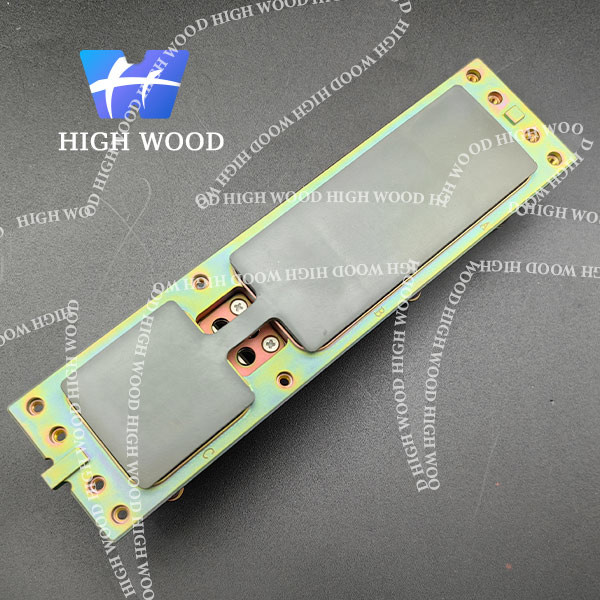

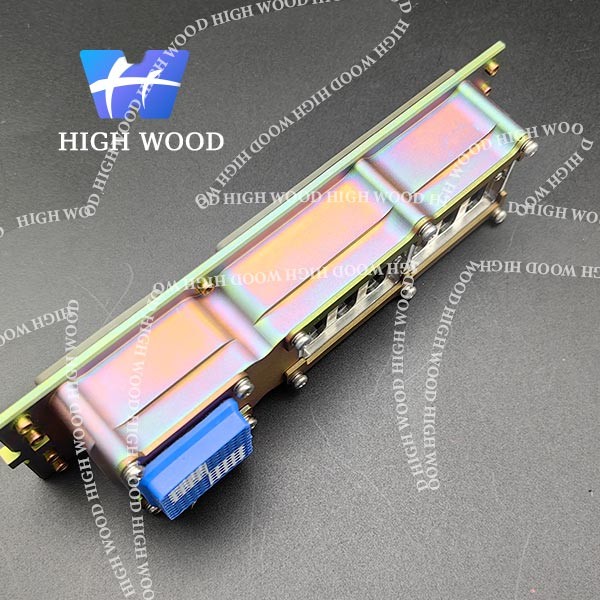

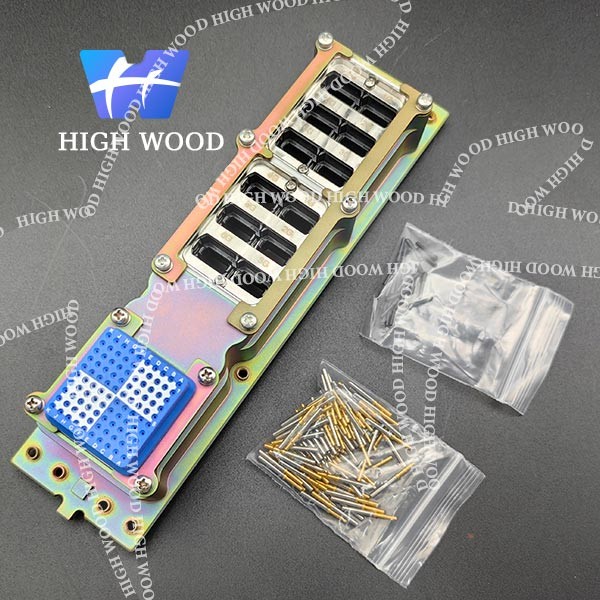

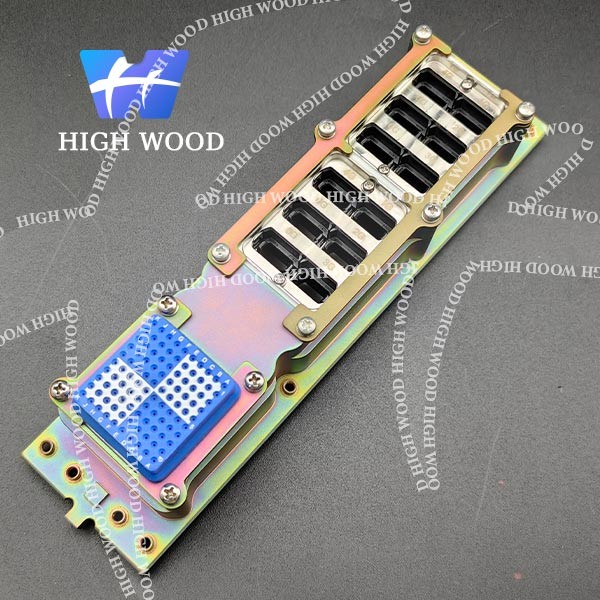

Product pictures:

S6(ARINC600) SERIES CONNECTOR,S6GM2ZPY0112-G. 1S6(ARINC600) SERIES CONNECTOR,S6GM2ZPY0112-G. 2S6(ARINC600) SERIES CONNECTOR,S6GM2ZPY0112-G. 3S6(ARINC600) SERIES CONNECTOR,S6GM2ZPY0112-G. 4S6(ARINC600) SERIES CONNECTOR,S6GM2ZPY0112-G. 5





Rated current, contact resistance, voltage resistance of low frequency contacts



Contact

Specification

Cable

specification (AWG)

Rated current A

Contact

Resistance max

mΩ

Withstanding Voltage (V)
Sea level 15000m 30480m



22D

26

24

22

2

3

5



11



1300



500



——



20#

24

22

20

3

5

7.5



8.5



1500



500



——



16#

20

18

16

7.5

10

13



5



1500



——



500

12#

14

12

17

23

2.5 1500 —— 500
10# 10 40 1.2 1500 —— 500
8# 8 53 0.7 1500 —— 500
4# 6 80 0.35 1500 —— 500





Specification:

Machine life: 500 plugging cycles

. Shock: 11ms half sine wave acceleration 50G

. Vibration: Functional vibration: 15-2000 Hz, power spectral density 0.126G2/Hz, duration 6 h

Durable vibration: 15-2000Hz, power spectral density 0.201G2/Hz, duration 7.5h

. Temperature range: -65℃~+150℃

. Salt fog: Class F: 96h W: 500h M: 192h (acidic atmosphere)

. Liquid resistant: oil resistant to multiple fuels, coolants, etc.

. Insulation resistance: > 5000M (500V DC)






High Speed Differential Signal:

Transfer Rate 1.65Gbps Near-end Crosstalk ≥30dB
Characteristic Impedance 100Ω Insertion Loss ≤0.5dB(250MHz)





CAN bus signal and ARINNC429 signal:
Transfer Rate 1Mbps
Characteristic Impedance 120Ω
Rated Voltage 50V

Electromagnetic Shielding Interference(dB/min)

800MHz~1000MHz 50dB
300MHz~400MHz 51dB
200MHz 53dB
100MHz 55dB
