S6(ARINC600) SERIES CONNECTOR,S6GM2ZPYA081-G.
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xShock | 11ms Half Sine Wave Acceleration 50G | Insulation Resistance | > 5000M (500V DC) |
---|---|---|---|
Temperature | -65℃~+150℃ | Endurance | 500 Cycles |
Insertion Loss | ≤0.5dB | Salt Spray | Class F: 96h W: 500h M: 192h (acidic Atmosphere) |
S6/GM2ZPYA081-G
-
Compliant with ARINC600 standard Error-proof using hexagonal encoding with 99 error-proof keys Different materials and coatings can be selected for the housing to suit different environmental requirements Mix common low frequency, power supply, high frequency, high speed differential and light contact parts forintegrated signal transmission Modular structure design allows users to choose different combinations of modules according to their usagerequirements Standard 8#RF contacts use frequency 0~500MHz, floating 8#RF contacts use frequency 0~18GHz
How to order:

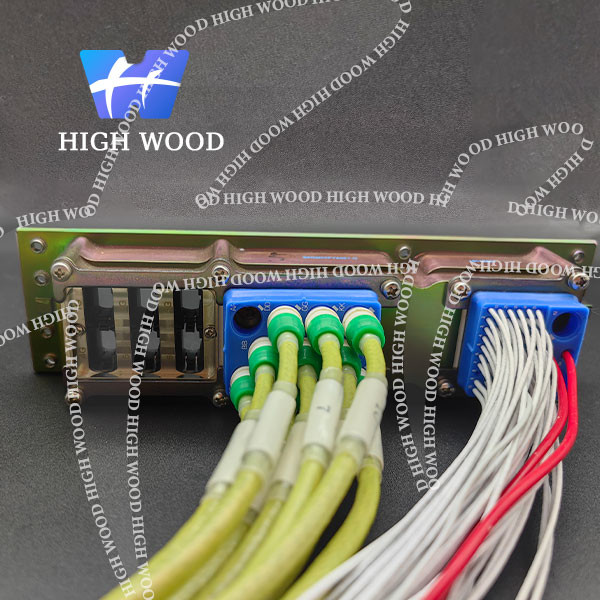

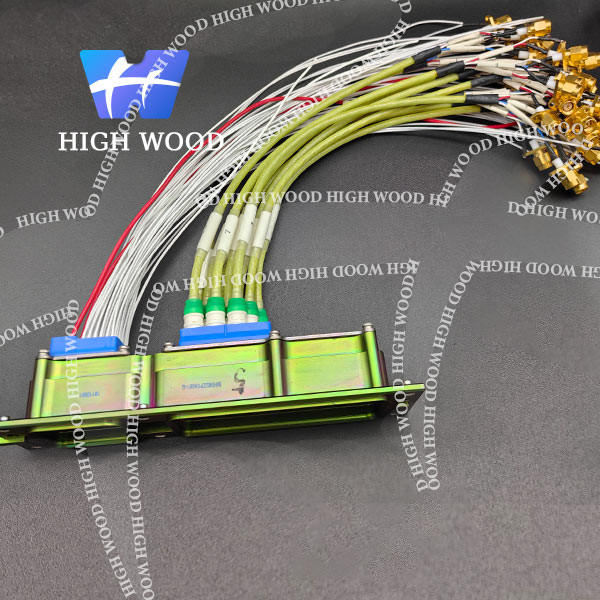

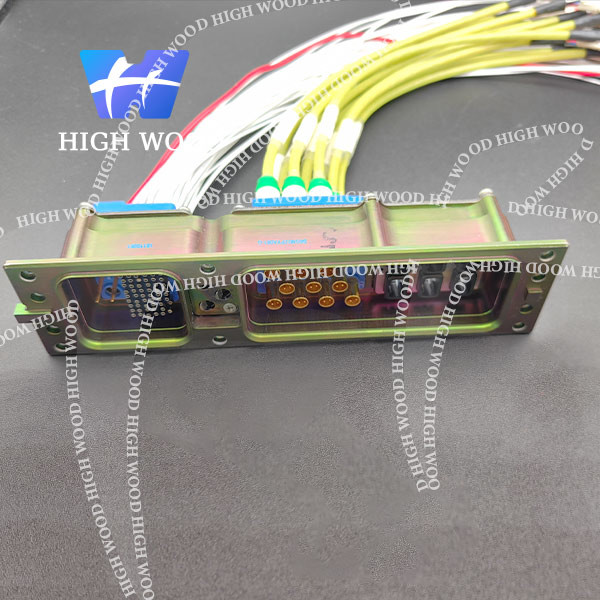

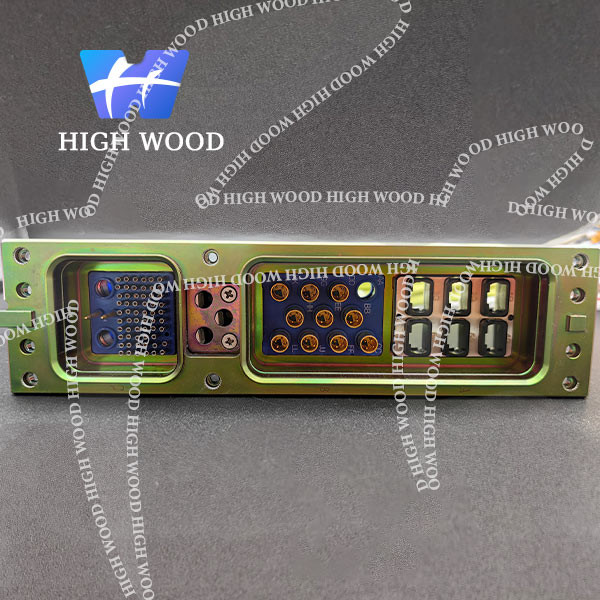

Product pictures:
Rated current, contact resistance, voltage resistance of low frequency contacts
Contact Specification |
Cable specification (AWG) |
Rated current A |
Contact Resistance max mΩ |
Withstanding Voltage (V) | ||
Sea level | 15000m | 30480m | ||||
22D |
26 24 22 |
2 3 5 |
11 |
1300 |
500 |
—— |
20# |
24 22 20 |
3 5 7.5 |
8.5 |
1500 |
500 |
—— |
16# |
20 18 16 |
7.5 10 13 |
5 |
1500 |
—— |
500 |
12# |
14 12 |
17 23 |
2.5 | 1500 | —— | 500 |
10# | 10 | 40 | 1.2 | 1500 | —— | 500 |
8# | 8 | 53 | 0.7 | 1500 | —— | 500 |
4# | 6 | 80 | 0.35 | 1500 | —— | 500 |
Specification:
Machine life: 500 plugging cycles
. Shock: 11ms half sine wave acceleration 50G
. Vibration: Functional vibration: 15-2000 Hz, power spectral density 0.126G2/Hz, duration 6 h
Durable vibration: 15-2000Hz, power spectral density 0.201G2/Hz, duration 7.5h
. Temperature range: -65℃~+150℃
. Salt fog: Class F: 96h W: 500h M: 192h (acidic atmosphere)
. Liquid resistant: oil resistant to multiple fuels, coolants, etc.
. Insulation resistance: > 5000M (500V DC)
High Speed Differential Signal:
Transfer Rate | 1.65Gbps | Near-end Crosstalk | ≥30dB |
Characteristic Impedance | 100Ω | Insertion Loss | ≤0.5dB(250MHz) |
Transfer Rate | 1Mbps | |
Characteristic Impedance | 120Ω | |
Rated Voltage | 50V | |
Electromagnetic Shielding Interference(dB/min) |
800MHz~1000MHz | 50dB |
300MHz~400MHz | 51dB | |
200MHz | 53dB | |
100MHz | 55dB |
