MIL-DTL-38999 Series Ⅰ，Ⅱ，And Ⅲ Connectors, M85049/38-11N

  • MIL-DTL-38999 Series Ⅰ，Ⅱ，And Ⅲ Connectors, M85049/38-11N
  • MIL-DTL-38999 Series Ⅰ，Ⅱ，And Ⅲ Connectors, M85049/38-11N
  • MIL-DTL-38999 Series Ⅰ，Ⅱ，And Ⅲ Connectors, M85049/38-11N
  • MIL-DTL-38999 Series Ⅰ，Ⅱ，And Ⅲ Connectors, M85049/38-11N
Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number M85049/38-11N
Minimum Order Quantity 100pcs
Price 10$-150$
Packaging Details Standard export package
Delivery Time 2-9weeks
Payment Terms T/T, L/C, Western Union
Supply Ability 100，000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Contacts 20-60 Shell Size 9-24
Voltage Rating 500V Endurance 500 Cycles
Operating Temperature -55°C To +125°C Insulator Thermo-set Plastic
Current Rating 3A Insulation Resistance 1000MΩ Min
High Light

500V MIL-DTL-38999 Connectors

,

M85049/38-11N
Leave a Message
Product Description

M85049/38-11N



Product Introduction:

Complies with GJB599B(MIL-DTL-38999) Ⅲ series interface
Outer shell can choose different materials and coatings to adapt to different environmental requirements
Five-key positioning with blind insertion and error-proof insertion functions
hree-head thread quick connection with anti-loosening mechanism
Precision docking with ceramic pins and casing
Various tail attachment forms are available
With adapter socket (optional gas seal) form, get rid of the cable bondag

Part Number:
M85049 38 -15 N 9 A
Basic series
Type :14 = Back nut

16 = 90o elbow cable clamp











18 = Straight cable clamp with shielding

20 = Shielding back shell











38 = Straight cable clamp











39 = 90o elbow cable clamp with shielding

69 = Heat shrinkable sleeve











01 = Earthing and impaction

06 = Spring thread-guard











91 = Straight cable clamp (composite material)











92 = 90o elbow cable clamp (composite material)


Shell size:09, 11, 13, 15, 17, 19, 21, 23, 25

Finish :W = Olive green cadmium plating

           N = Electroless nickel plating



S = Stainless steel passivated A = Black anodized











J = Olive green cadmium plating (composite material)











M = Electroless nickel plating (composite material)


Outlet diameter :Omit = Standard size

01 = 1.57 ~ 3.18 mm, 02 = 3.18 ~ 6.35 mm











03 = 6.35 ~ 9.53 mm, 04 = 9.53 ~ 12.70 mm











05 = 12.70 ~ 15.88 mm, 06 = 15.88 ~ 19.05 mm











07 = 19.05 ~ 22.23 mm, 08 = 22.23 ~ 25.40 mm











09 = 25.40 ~ 28.58 mm, 10 = 28.58 ~ 31.75 mm


Length :Omit = Standard length (64.4 mm)

A = 89.8 mm











B = 115.2 mm











C = 140.6 mm



Straight cable clamp (MS85049/38):
Shell No. A(max) Thread B C(max) D(min) D(max) L(max)
09 18.0 M12*1 20.0 2.49 5.94 27.0
11 21.0 M15*1 21.0 3.87 5.94 28.5
13 24.0 M18*1 23.4 4.83 8.33 30.0
15 28.0 M22*1 26.6 6.60 11.61 31.5
17 31.0 M25*1 30.6 7.19 15.60 33.5
19 34.0 M28*1 34.0 8.26 16.10 36.6
21 37.0 M31*1 35.8 8.71 17.73 39.8
23 40.0 M34*1 39.0 9.68 20.90 42.9
25 43.0 M37*1 40.6 10.62 21.66 45.0


Product pictures:

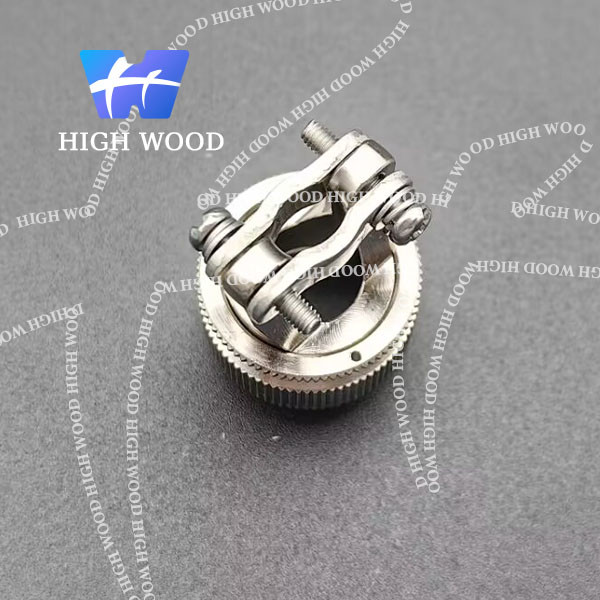

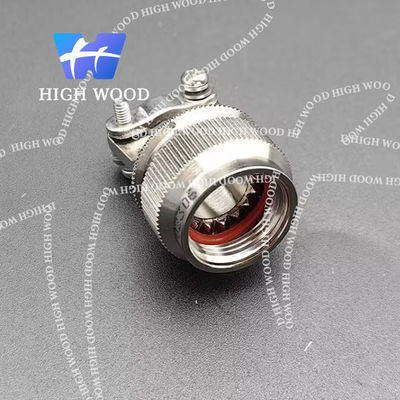

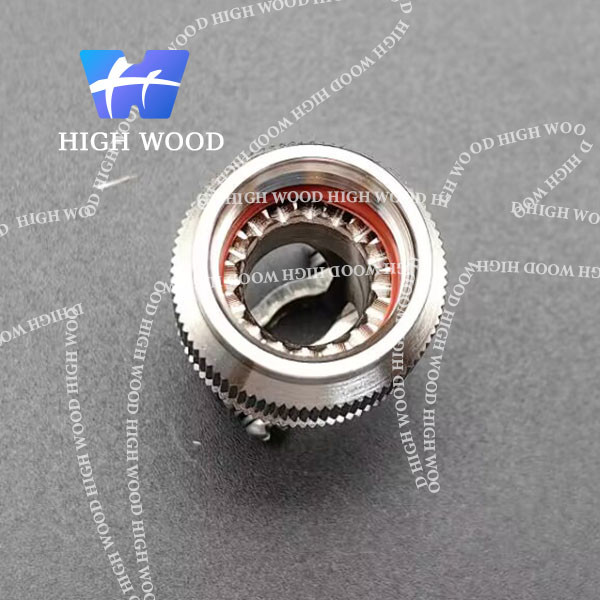

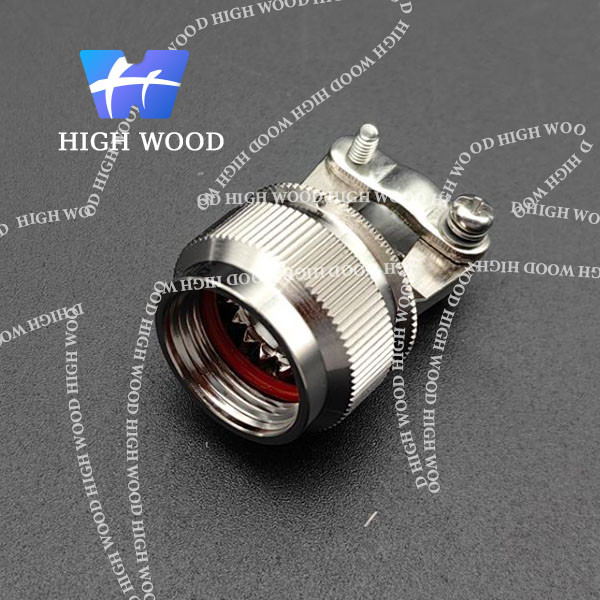

MIL-DTL-38999 Series Ⅰ，Ⅱ，And Ⅲ Connectors, M85049/38-11N 0MIL-DTL-38999 Series Ⅰ，Ⅱ，And Ⅲ Connectors, M85049/38-11N 1MIL-DTL-38999 Series Ⅰ，Ⅱ，And Ⅲ Connectors, M85049/38-11N 2MIL-DTL-38999 Series Ⅰ，Ⅱ，And Ⅲ Connectors, M85049/38-11N 3
