MIL-DTL-38999 Series Ⅰ，Ⅱ，And Ⅲ Connectors, M85049/38-13N
| Place of Origin | China |
|---|---|
| Brand Name | HIGH WOOD |
| Certification | AS9001 |
| Model Number | M85049/38-13N |
| Minimum Order Quantity | 100pcs |
| Price | 10$-150$ |
| Packaging Details | Standard export package |
| Delivery Time | 2-9weeks |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 100，000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Contacts | 20-60 | Shell Size | 9-24 |
|---|---|---|---|
| Voltage Rating | 500V | Endurance | 500 Cycles |
| Operating Temperature | -55°C To +125°C | Insulator | Thermo-set Plastic |
| Current Rating | 3A | Insulation Resistance | 1000MΩ Min |
| High Light | Thermo Set Plastic Insulator Connector,M85049/38-13N |
||
Product Description
M85049/38-13N
Product Introduction:
Complies with GJB599B(MIL-DTL-38999) Ⅲ series interface
Outer shell can choose different materials and coatings to adapt to different environmental requirements
Five-key positioning with blind insertion and error-proof insertion functions
hree-head thread quick connection with anti-loosening mechanism
Precision docking with ceramic pins and casing
Various tail attachment forms are available
With adapter socket (optional gas seal) form, get rid of the cable bondag
Part Number:
| M85049 | 38 | -15 | N | 9 | A |
| Basic series | |||||
| Type :14 = Back nut | |||||
|
16 = 90o elbow cable clamp |
|
|
|
|
|
|
18 = Straight cable clamp with shielding 20 = Shielding back shell |
|
|
|
|
|
|
38 = Straight cable clamp |
|
|
|
|
|
|
39 = 90o elbow cable clamp with shielding 69 = Heat shrinkable sleeve |
|
|
|
|
|
|
01 = Earthing and impaction 06 = Spring thread-guard |
|
|
|
|
|
|
91 = Straight cable clamp (composite material) |
|
|
|
|
|
|
92 = 90o elbow cable clamp (composite material) |
|||||
| Shell size:09, 11, 13, 15, 17, 19, 21, 23, 25 | |||||
|
Finish :W = Olive green cadmium plating N = Electroless nickel plating |
|||||
|
S = Stainless steel passivated A = Black anodized |
|
|
|
|
|
|
J = Olive green cadmium plating (composite material) |
|
|
|
|
|
|
M = Electroless nickel plating (composite material) |
|||||
| Outlet diameter :Omit = Standard size | |||||
|
01 = 1.57 ~ 3.18 mm, 02 = 3.18 ~ 6.35 mm |
|
|
|
|
|
|
03 = 6.35 ~ 9.53 mm, 04 = 9.53 ~ 12.70 mm |
|
|
|
|
|
|
05 = 12.70 ~ 15.88 mm, 06 = 15.88 ~ 19.05 mm |
|
|
|
|
|
|
07 = 19.05 ~ 22.23 mm, 08 = 22.23 ~ 25.40 mm |
|
|
|
|
|
|
09 = 25.40 ~ 28.58 mm, 10 = 28.58 ~ 31.75 mm |
|||||
| Length :Omit = Standard length (64.4 mm) | |||||
|
A = 89.8 mm |
|
|
|
|
|
|
B = 115.2 mm |
|
|
|
|
|
|
C = 140.6 mm |
Straight cable clamp (MS85049/38):
| Shell No. | A(max) | Thread B | C(max) | D(min) | D(max) | L(max) |
| 09 | 18.0 | M12*1 | 20.0 | 2.49 | 5.94 | 27.0 |
| 11 | 21.0 | M15*1 | 21.0 | 3.87 | 5.94 | 28.5 |
| 13 | 24.0 | M18*1 | 23.4 | 4.83 | 8.33 | 30.0 |
| 15 | 28.0 | M22*1 | 26.6 | 6.60 | 11.61 | 31.5 |
| 17 | 31.0 | M25*1 | 30.6 | 7.19 | 15.60 | 33.5 |
| 19 | 34.0 | M28*1 | 34.0 | 8.26 | 16.10 | 36.6 |
| 21 | 37.0 | M31*1 | 35.8 | 8.71 | 17.73 | 39.8 |
| 23 | 40.0 | M34*1 | 39.0 | 9.68 | 20.90 | 42.9 |
| 25 | 43.0 | M37*1 | 40.6 | 10.62 | 21.66 | 45.0 |

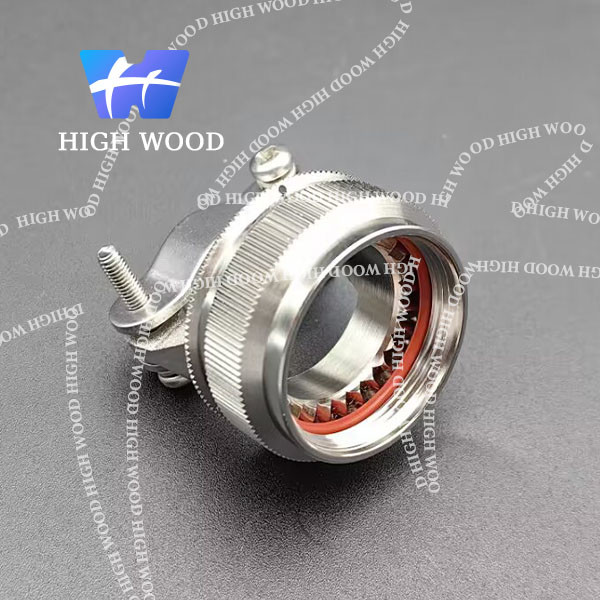

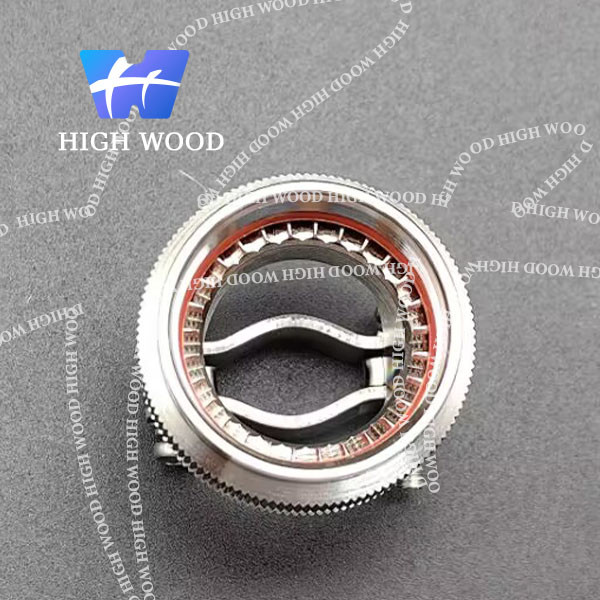

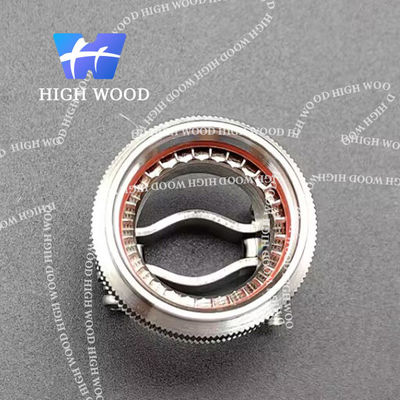

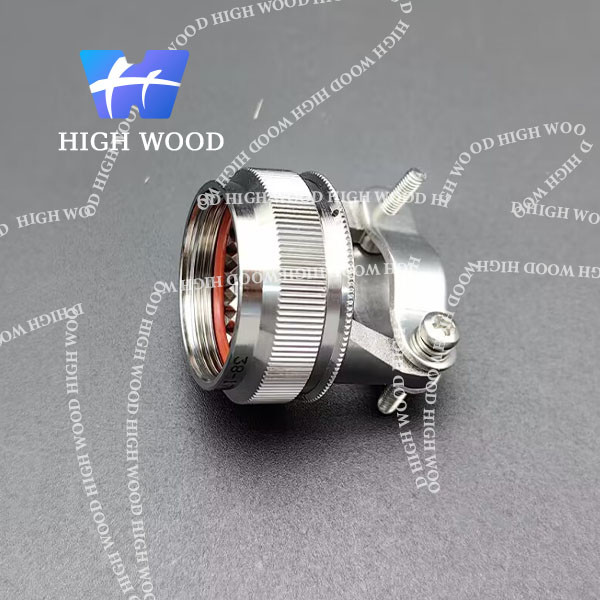

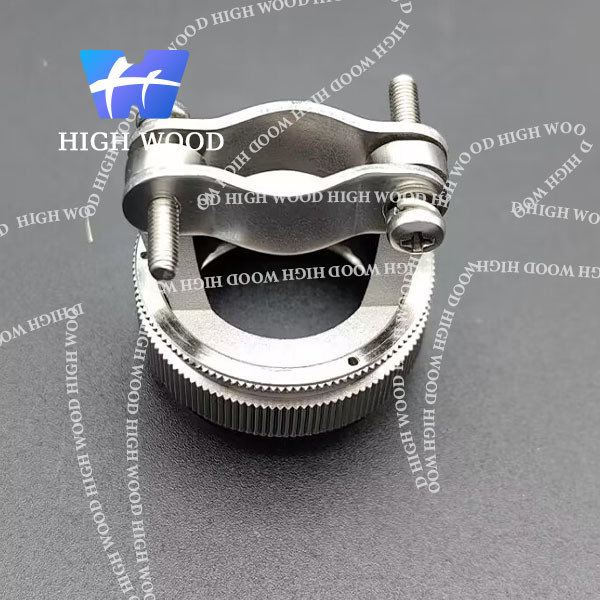

Product pictures:
