M16 Series 19-Pin Male Straight Solder Connector

  • M16 Series 19-Pin Male Straight Solder Connector
  • M16 Series 19-Pin Male Straight Solder Connector
  • M16 Series 19-Pin Male Straight Solder Connector
Place of Origin CHINA
Brand Name HIGH WOOD
Certification AS9001
Model Number M16 Series 19-Pin Male Straight Solder Connector
Minimum Order Quantity 100PCS
Price 5＄-50＄
Packaging Details standard expect package
Delivery Time 2-9weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 100，000pcs per month
Product Details
Operating Temperature Range -25 ℃ ~ +85 ℃ Mating Method Threaded Coupling
Durability ≥ 500 Mating Cycles Ingress Protection Rating IP67
Leave a Message
Product Description
M16 Series 19-Pin Male Straight Solder Connector

Product Features:



✅ Excellent resistance to acids, alkalis, chemical cleaners and reagents; resistant to welding sparks, withstand frequent twisting and bending.



✅ Resistant to oil contamination, coolant, lubricants and emulsions; straight female and straight male connector structures available.



Product Specifications:

Rated Current 7A: 2/3/4PIN; 6A:5PIN; 5A: 6/7/8/12/14/16/19/24PIN
Rated Voltage ≤200V: 2/3/4/5/6PIN; 60V: 7/8/12/14/16/19/24PIN
Contact Resistance ≤7Ω: 2/3/4/5/6/7/8PIN; ≤10Ω: 12/14/16/19PIN; ≤12Ω: 24PIN
Insulation Resistance ≥1500Ω: 2/3/4/5/6PIN; ≥1000Ω: 7/8/12/14/16/19/24PIN
Solder Cup Hole Diameter 1.0mm: 2/3/4/5/6/7/8PIN; 0.8mm: 12/14/16/19PIN; 0.6mm: 24PIN
Contact Body Hole Diameter 1.5mm: 2/3/4/5/6/7/8PIN; 1.0mm: 12/14/16/19PIN; 0.8mm: 24PIN
Coupling Method Threaded Locking
Termination Method Soldering
Mating Cycles 500 times
Operating Temperature -25℃ to +85℃
IP Rating IP67

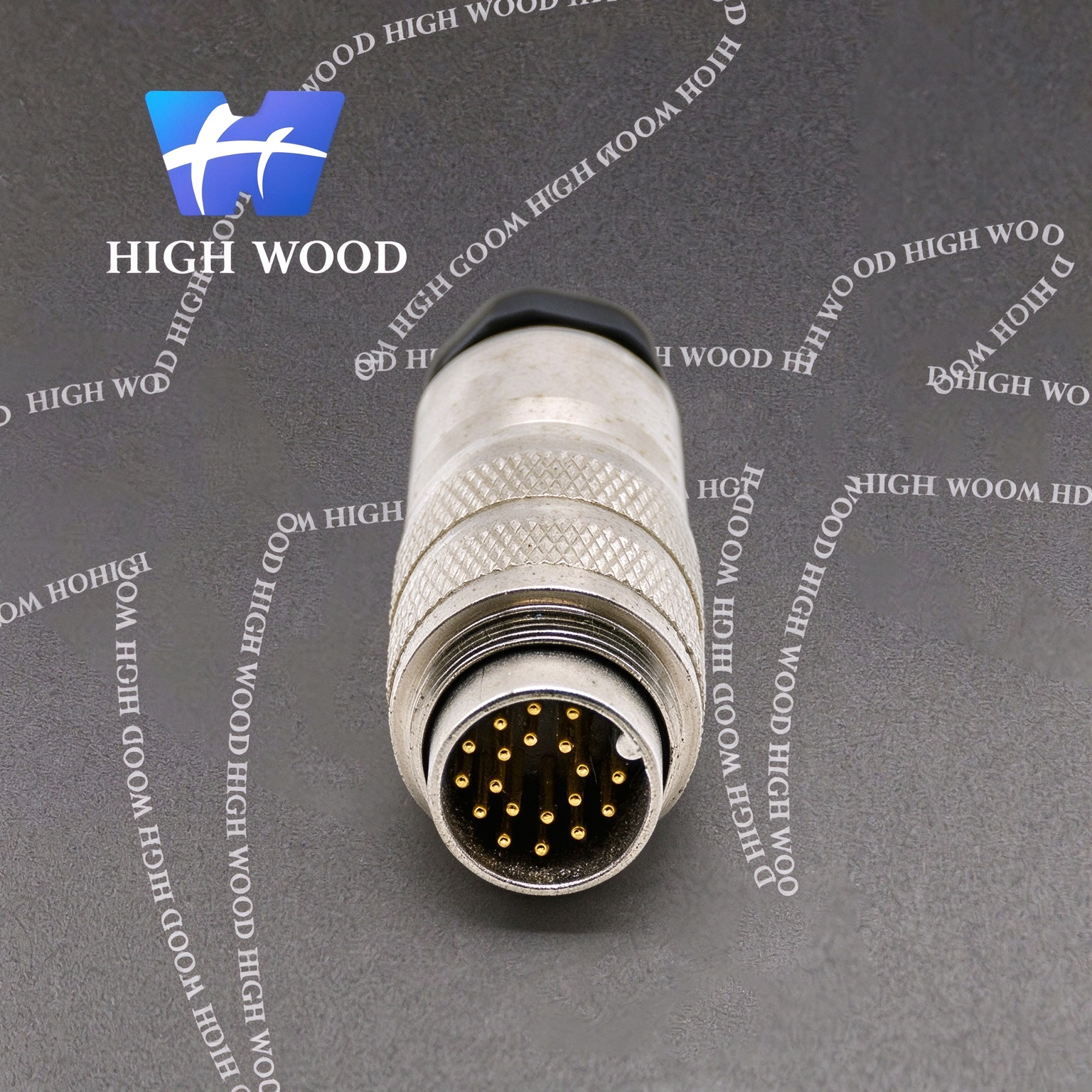

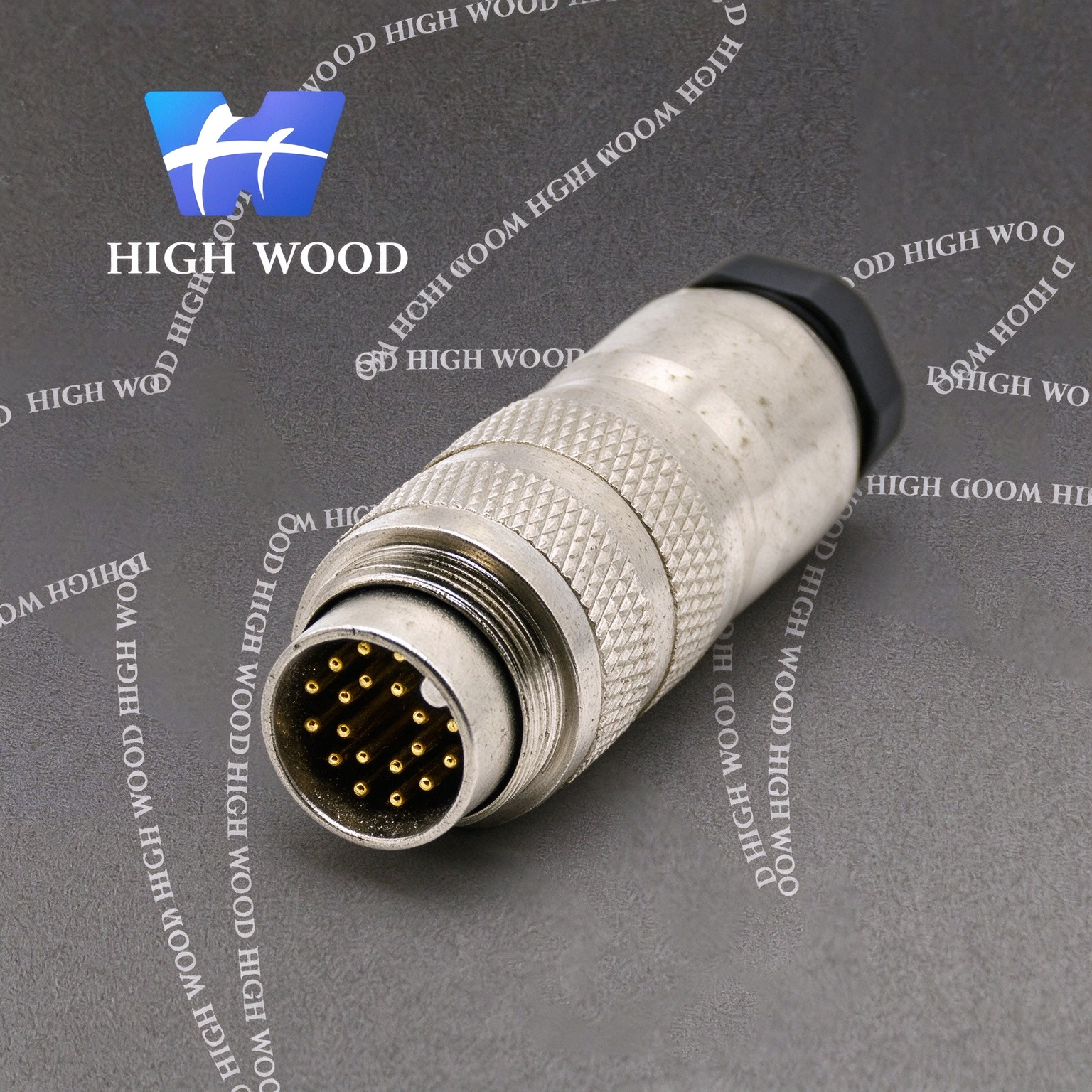

Product showing.



M16 Series 19-Pin Male Straight Solder ConnectorM16 Series 19-Pin Male Straight Solder ConnectorM16 Series 19-Pin Male Straight Solder Connector
