HW-CMM Connectors ,HW322V006F46-0102-2400-4400CMM， Micron-D Connector

  • HW-CMM Connectors ,HW322V006F46-0102-2400-4400CMM， Micron-D Connector
  • HW-CMM Connectors ,HW322V006F46-0102-2400-4400CMM， Micron-D Connector
  • HW-CMM Connectors ,HW322V006F46-0102-2400-4400CMM， Micron-D Connector
  • HW-CMM Connectors ,HW322V006F46-0102-2400-4400CMM， Micron-D Connector
  • HW-CMM Connectors ,HW322V006F46-0102-2400-4400CMM， Micron-D Connector
Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number HW322V006F46-0102-2400-4400CMM
Minimum Order Quantity 100PCS
Price 10＄--150＄
Packaging Details standard export package
Delivery Time 2--9 weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month
Product Details
Resistance To Insulation ≥1000MΩ Insulators PPS+glass Fiber
Accessory Stainless Steel Endurance 500cycles
Operating Temperature -55 ℃ - 125 ℃ Contact Copper Alloy Gold Plating
Highlight

HW-CMM Micron-D Connector

,

HW322V006F46 CMM connector

,

Micron-D Connector with warranty
Leave a Message
Product Description

HW322V006F46-0102-2400-4400CMM


The HW-CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications, pecializes in the design,development and manufacture of electronic connectors.




SPECIFICATIONS:



Materials Insulator Special PPS UL94-V0

Radiation resistance

No humidity absorption

Oxygen free
  Contacts Copper alloy/Ni+Au
  Fixing Hardware Stainless steel
Electrical Proof voltage Test at 1200V DC
  Insulation resistance ≥800MΩ
  Power Intensity and Contact resistance LF: ≤3A @25 °C, ≤2.2A @85 °C; Contact Resistance≤10mΩ

HP: ≤20A, Contact Resistance≤4mΩ
  Impedance 50 Ω
  SWR(Stationary wave rate) <1.05+0.04F (GHz)
  Frequency range up to 6GHz
Mechanical Mechanical operations Up to 500 cycles
  Contact retention in insulator ≥10N
  Contact replacement in insulator 3 cycles(Crimp contacts only)
Environmental Temperature range -60 °C to +150 °C

Reflow soldering process compatible

about +260 °C for 10s
  Vibration severity 0.75mm, 10G RMS 6h long random with superimposed sinusoid. No intermittencies measured(High Speed Logic Interrupt detector) with a trip threshold of 2ns.
  Shock severity 100G for 6ms
  Salt spray test 96h
  Humidity test 56 days@90% humidity

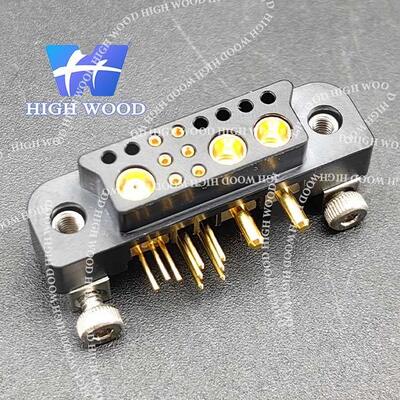

Product pictures:

HW-CMM Connectors ,HW322V006F46-0102-2400-4400CMM， Micron-D Connector 0HW-CMM Connectors ,HW322V006F46-0102-2400-4400CMM， Micron-D Connector 1HW-CMM Connectors ,HW322V006F46-0102-2400-4400CMM， Micron-D Connector 2HW-CMM Connectors ,HW322V006F46-0102-2400-4400CMM， Micron-D Connector 3
