HW-CMM Connector, HW-222Y08M11,2mm Pitch.

  • HW-CMM Connector, HW-222Y08M11,2mm Pitch.
  • HW-CMM Connector, HW-222Y08M11,2mm Pitch.
  • HW-CMM Connector, HW-222Y08M11,2mm Pitch.
  • HW-CMM Connector, HW-222Y08M11,2mm Pitch.
  • HW-CMM Connector, HW-222Y08M11,2mm Pitch.
Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number HW-222Y08M11
Minimum Order Quantity 100PCS
Price 10＄--150＄
Packaging Details standard export package
Delivery Time 2--9 weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month
Product Details
MECHANICAL Mechanical Operations:Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles P.C.LF CONTACTS(Female) Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ
INSULATOR Special PPS UL 94-V0 CRIMP LF CONTACTS Male: Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ
P.C.LF CONTACTS(Male) Male:tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ FIXING HARDARE Jackscrew:Stainless Steel Latch:Bertllium Copper/plated Nickel
Highlight

HW-CMM 2mm pitch connector

,

HW-222Y08M11 micron-D connector

,

HW-M80 electrical connector
Leave a Message
Product Description

HW-222Y08M11



The HW-CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications.




 Part numbering



HW-CMM Connector, HW-222Y08M11,2mm Pitch. 0

nn=number of LF contacts



Type L
Y 3
YL 4.5



A=nn-2
B=A+7
C=A+12







Product showing

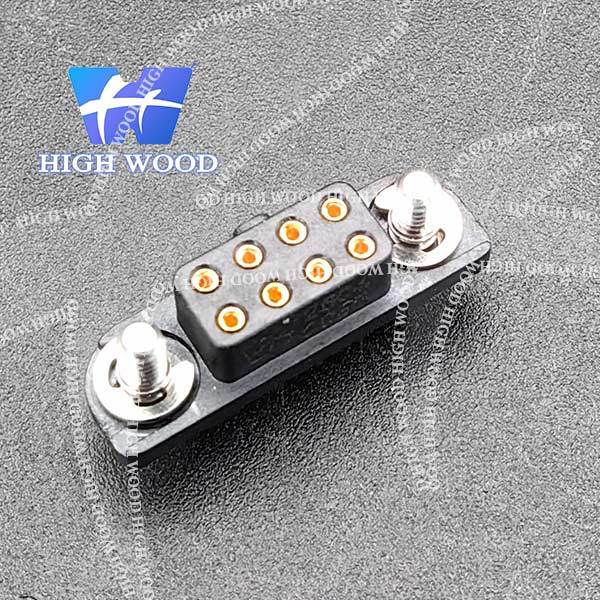

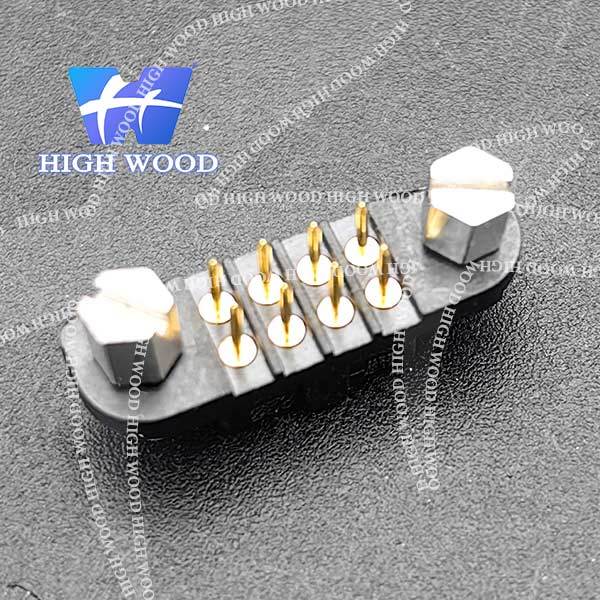

HW-CMM Connector, HW-222Y08M11,2mm Pitch. 1HW-CMM Connector, HW-222Y08M11,2mm Pitch. 2HW-CMM Connector, HW-222Y08M11,2mm Pitch. 3
