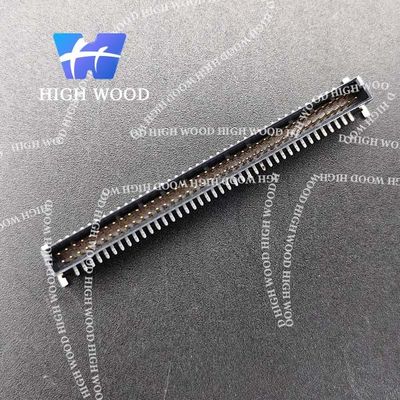

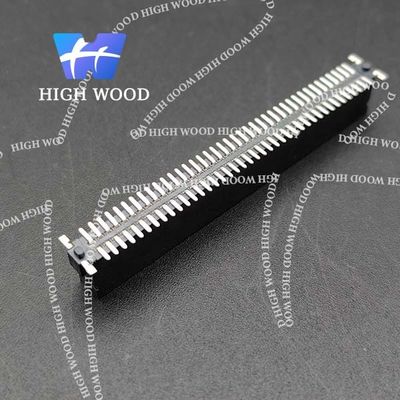

HW-M55-7018042R 1.27mm (0.05") Pitch PCB Horizontal SMT Connector
| Place of Origin | China |
|---|---|
| Brand Name | HIGH WOOD |
| Certification | AS9001 |
| Model Number | HW-M55-7018042R |
| Minimum Order Quantity | 100PCS |
| Price | 10＄--150＄ |
| Packaging Details | standard export package |
| Delivery Time | 2--9 weeks |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connection Type | Surface Mount (SMT) | Connector Orientation | Horizontal |
|---|---|---|---|
| Number Of Rows | 2 | Number Of Signal Contacts | 80 |
| Operating Temperature | -55 ℃ - 125 ℃ | Current Rating | 1.2A Max Per Contact |
| Finish / Plating On Contact Surface | Gold | ||
| Highlight | HW-M55-7018042R,PCB Horizontal SMT Connector,1.27mm Pitch Horizontal SMT Connector |
||
Product Description
HW-M55-7018042R
PRODUCT DESCRIPTION
- Double Row Surface Mount, 10mm total footprint depth, shrouded polarized connector – 68 contacts (34+34). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
- Board stacking connectors for 90 degree or coplanar board-to-board connection. Supplied in Tape and Reel. Gold finish on contact area, Tin finish on termination.
SPECIFICATION
Contact Pitch:
1.27mm (0.05")
Contact Gender:
Male/Plug
Connector Orientation:
Horizontal
Connection Type:
Surface Mount (SMT)
Current Rating:
1.2A max per contact
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
80
MATERIALS
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
LCP
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
