HW-M80 Connectors, HW-M80-4601242
| Place of Origin | China |
|---|---|
| Brand Name | HIGH WOOD |
| Certification | AS9001 |
| Model Number | HW-M80-4601242 |
| Minimum Order Quantity | 100PCS |
| Price | 10＄--150＄ |
| Packaging Details | standard export package |
| Delivery Time | 2--9 weeks |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resistance To Insulation | ≥1000MΩ | Insulators | PPS+glass Fiber |
|---|---|---|---|
| Accessory | Stainless Steel | Endurance | 500cycles |
| Operating Temperature | -55 ℃ - 125 ℃ | Contact | Copper Alloy Gold Plating |
Product Description

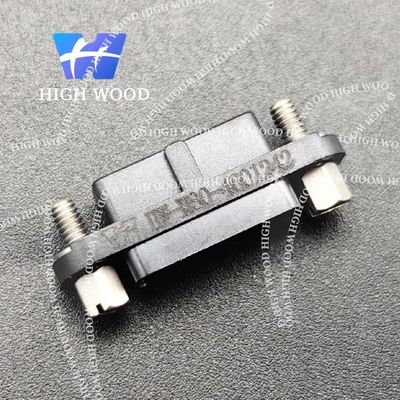

HW-M80-4601242
The HW-M80-4601242 has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications, specializes in the design,development and manufacture of electronic connectors.
Product pictures:
SPECIFICATIONS:
| Materials and surface treatment | |
| Insulators: | PPS+glass fiber |
| Contacts: | Copper alloy gold plating |
| Property of electricity | |
| Resistance to high pressure: | 800V AC/DC |
| Resistance to insulation: | ≥1000MΩ |
| LF pins: |
Operating current 25℃, ≤3A Operating current 85℃, ≤2.2A Contact resistance ≤25MΩ |
| HP Pins: | Operating current ≤20A |
| Mating times: | 500 times |
| Working temperature: | -55℃ to 125℃ |
