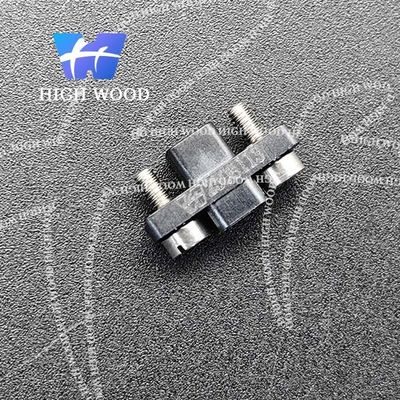

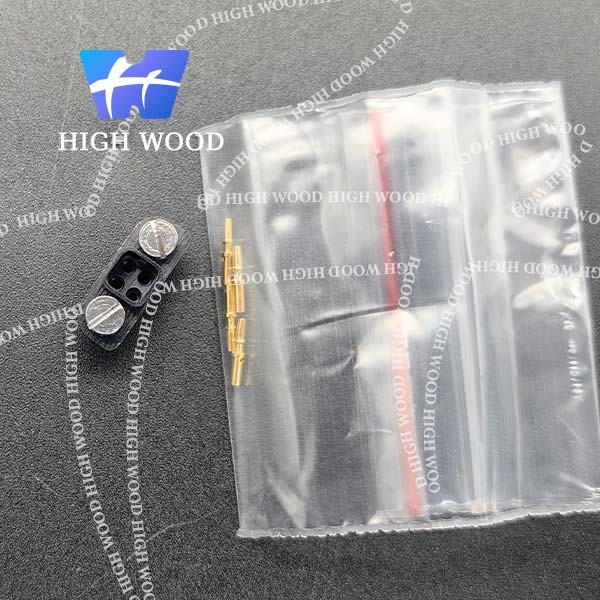

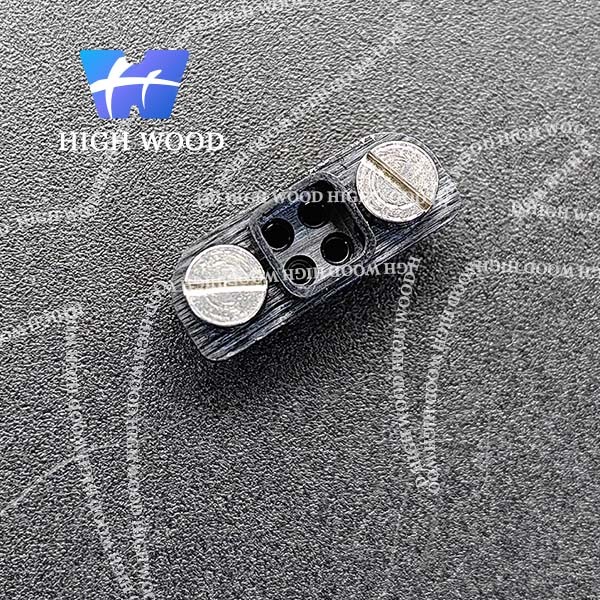

HW-CMM Connector, HW-222C04M11,2mm Pitch.
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMECHANICAL | Mechanical Operations:Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles | P.C.LF CONTACTS(Female) | Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ |
---|---|---|---|
INSULATOR | Special PPS UL 94-V0 | CRIMP LF CONTACTS | Male: Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ |
P.C.LF CONTACTS(Male) | Male:tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ | FIXING HARDARE | Jackscrew:Stainless Steel Latch:Bertllium Copper/plated Nickel |
HW-221C04M11
The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications.
Part numbering
nn=number of LF contacts
Type | Gauge |
S | 24-28 |
C | 22 |
Calculation
A=nn-2 |
B=A+7 |
C=A+12 |
FIXING HARDWARE FOR CMM 220 MALE
REFERENCE | ASSEMBLY ON PCB | OVERLL DIMENSIONS | RECOMMENDATION |
M11 |
M11 : CMM Female : Y-YL-T-S-C-E (D :straight) |
CMM 220 SERIES in male & female styles for HF/HP contacts
CMM 220 Male & Female Special contacts only |
Special contacts number | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | |
Distance between axis |
A | 4 | 8 | 12 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | |
B | 13 | 17 | 21 | 25 | 29 | 33 | 37 | 41 | 45 | 49 | 53 | 57 | 61 | 65 | ||
Length in mm | C | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 | 58 | 62 | 66 | 70 |
Product showing
