Product Details
CRIMP LF CONTACTS Male: Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ P.C.LF CONTACTS(Male) Male:tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ
P.C.LF CONTACTS(Female) Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ FIXING HARDARE Jackscrew:Stainless Steel Latch:Bertllium Copper/plated Nickel
INSULATOR Special PPS UL 94-V0 MECHANICAL Mechanical Operations:Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles
Leave a Message
Product Description

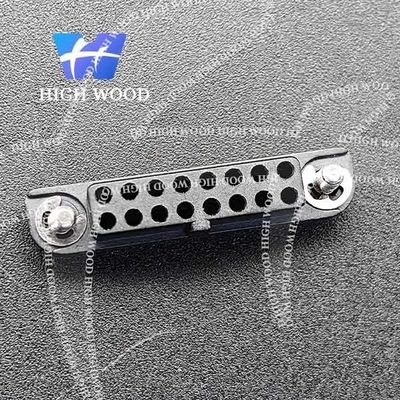

HW-222C16M11

The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications,pecializes in the design,development and manufacture of electronic connectors.




Part numbering:

HW-CMM Connector, HW-222C16M11 ,MTL-55302F,2mm Pitch. 0

Type L
S 24-28
C 22


FIXING HARDWARE FOR CMM 220 FEMALE

REFERENC ASSEMBLY ON PCB OVERALL DIMENSIONS RECOMMENDATION

M11


HW-CMM Connector, HW-222C16M11 ,MTL-55302F,2mm Pitch. 1

HW-CMM Connector, HW-222C16M11 ,MTL-55302F,2mm Pitch. 2

M11 :
CMM Female :
Y-YL-T-S-C-E
(D :straight)



MALE STRAIGHT ON CABLE P/N 30-33xx (solder or crimp):


Loaded Unloaded Ampere Cable A ØB ØC Length D hole Length E body Length F conductor Solder Crimp by HX3 Hexagone size/Dies Crimp by AF8
      AWG 20 AWG 18 AWG 16 AWG 14 AWG 12
3305 30-3305 5A ×         1,1mm

1,65
mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3308 30-3308 8A   ×       1,35mm

1,85
mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3310 30-3310 10A × × ×     1,7mm   6,2mm 6,7mm 6mm OK   OK
3315 30-3315 15A       ×   2mm   6,2mm 6,7mm 6mm OK   OK
3320 30-3320 20A         × 2,6mm   6,2mm 6,7mm 5,3mm OK   OK



Materials and coating:

Materials and coating
Insulating medium

Glass fiber reinforced PPS, UL94-V0

Radiation resistant, non hygroscopic, ozone resistant

Contact Copper alloy nickel base plating
Enclosure stainless steel
Electrical performance index
Voltage withstand test (sea level) 800V AC/DC
Insulation resistance ≥1000MΩ
Rated current

LF contact: working current 25 C, ≤ 3A;

Working current 85 C, ≤ 2.2A; contact resistance ≤10mΩ

Mechanical performance index
Mechanical life 500 times of plugging and unplugging
Environmental performance index
Operating ambient temperature -60℃ to 260℃



1. The contacts are distributed, and it is recommended to crimp the AWG22 wire for LF contacts;

2. After LF contact is pressed into the base with special tools, it is recommended to use the heat shrinkable sleeve

shrinks

its tail and fills the base cavity with glue;



Product details:







Materials and coating:

Materials and coating
Insulation medium Glass fiber reinforced PPS,UL94-VO Radiation resistant,non hygroscopic,ozone resistant
Contact LF contact copper alloy nickel base plating gold 0.8μ
Epiphy Stainless steel
Electrical performance index
Voltage withstand test(sea level) 600V AC/DC
Insulation resitance 100m
Contact Signal contact:working current 25*C,3A,working current 85C,2.2A,contact resistance10m
Mechanical performance index
Mechanical life 500 times of plugging and unolugging
Single core insertion and extraction force of contact LF contact:insertion force2N,pull-out force0.2N
Retention Force in contact bace 10N
Environmental performance index
Operating ambient temperature 60℃-260℃
Vibrating level 0.75mm, 10G (root mean square) random vibration superimposed with sinusoidal vibration, 6 hours, instant break less than 2 nanoseconds
lmpact grade 100G, 6 ms
Salt resistance HcFc 141 bMGX (ATOCHEM) solvent
Salt spray test 96h

Moisture

resistance

56 days, 90% humidity
