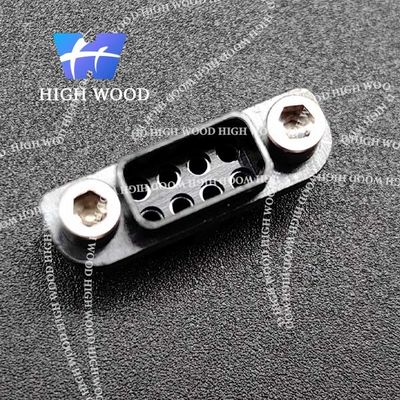

HW-CMM Connector, HW-222C08M16,MTL-55302F,2mm Pitch.
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xP.C.LF CONTACTS(Female) | Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ | CRIMP LF CONTACTS | Male: Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ |
---|---|---|---|
MECHANICAL | Mechanical Operations:Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles | INSULATOR | Special PPS UL 94-V0 |
FIXING HARDARE | Jackscrew:Stainless Steel Latch:Bertllium Copper/plated Nickel | P.C.LF CONTACTS(Male) | Male:tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ |
HW-222C08M16:
The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical.
Part numbering:
Type | L |
S | 24-28 |
C | 22 |
FIXING HARDWARE FOR CMM 220 FEMALE
REFERENC | ASSEMBLY ON PCB | OVERALL DIMENSIONS | RECOMMENDATION |
M16 |
M16 : |
MALE STRAIGHT ON CABLE P/N 30-33xx (solder or crimp):
Loaded | Unloaded | Ampere | Cable A | ØB | ØC | Length D hole | Length E body | Length F conductor | Solder | Crimp by HX3 Hexagone size/Dies | Crimp by AF8 | ||||
AWG 20 | AWG 18 | AWG 16 | AWG 14 | AWG 12 | |||||||||||
3305 | 30-3305 | 5A | × | 1,1mm |
1,65 |
6,2mm | 6,7mm | 4,5mm | OK | Hex.1,9 mm/C14923 | OK | ||||
3308 | 30-3308 | 8A | × | 1,35mm |
1,85 |
6,2mm | 6,7mm | 4,5mm | OK | Hex.1,9 mm/C14923 | OK | ||||
3310 | 30-3310 | 10A | × | × | × | 1,7mm | 6,2mm | 6,7mm | 6mm | OK | OK | ||||
3315 | 30-3315 | 15A | × | 2mm | 6,2mm | 6,7mm | 6mm | OK | OK | ||||||
3320 | 30-3320 | 20A | × | 2,6mm | 6,2mm | 6,7mm | 5,3mm | OK | OK |
Materials and coating:
Materials and coating | |
Insulating medium |
Glass fiber reinforced PPS, UL94-V0 Radiation resistant, non hygroscopic, ozone resistant |
Contact | Copper alloy nickel base plating |
Enclosure | stainless steel |
Electrical performance index | |
Voltage withstand test (sea level) | 800V AC/DC |
Insulation resistance | ≥1000MΩ |
Rated current |
LF contact: working current 25 C, ≤ 3A; Working current 85 C, ≤ 2.2A; contact resistance ≤10mΩ |
Mechanical performance index | |
Mechanical life | 500 times of plugging and unplugging |
Environmental performance index | |
Operating ambient temperature | -60℃ to 260℃ |
1. The contacts are distributed, and it is recommended to crimp the AWG22 wire for LF contacts;
2. After LF contact is pressed into the base with special tools, it is recommended to use the heat shrinkable
sleeve
shrinks
its tail and fills the base cavity with glue;
Product details:
Materials and coating:
Materials and coating | |
Insulation medium | Glass fiber reinforced PPS,UL94-VO Radiation resistant,non hygroscopic,ozone resistant |
Contact | LF contact copper alloy nickel base plating gold 0.8μ |
Epiphy | Stainless steel |
Electrical performance index | |
Voltage withstand test(sea level) | 600V AC/DC |
Insulation resitance | ≥100mΩ |
Contact | Signal contact:working current 25*C,≤3A,working current 85C,≤2.2A,contact resistance≤10mΩ |
Mechanical performance index | |
Mechanical life | 500 times of plugging and unolugging |
Single core insertion and extraction force of contact | LF contact:insertion force≤2N,pull-out force≥0.2N |
Retention Force in contact bace | ≥10N |
Environmental performance index | |
Operating ambient temperature | 60℃-260℃ |
Vibrating level | 0.75mm, 10G (root mean square) random vibration superimposed with sinusoidal vibration, 6 hours, instant break less than 2 nanoseconds |
lmpact grade | 100G, 6 ms |
Salt resistance | HcFc 141 bMGX (ATOCHEM) solvent |
Salt spray test | 96h |
Moisture resistance |
56 days, 90% humidity |
Product display:
