Micro-D MWDM Solder Cup Metal Shell Connectors MWDM2L-37NSM
| Place of Origin | China |
|---|---|
| Brand Name | HIGH WOOD |
| Certification | AS9001 |
| Model Number | MWDM2L-37NSM |
| Minimum Order Quantity | 100PCS |
| Price | 10＄--150＄ |
| Packaging Details | standard export package |
| Delivery Time | 2--9 weeks |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Current Rating | 3A | Insulators | PPS+glass Fiber |
|---|---|---|---|
| Shell Material | Stainless Steel | Endurance | 500cycles |
| Operating Temperature | -55 ℃ - 150 ℃ | Contact | Beryllium Copper Gold Over Nickel Plating |
Product Description
MWDM2L-37NSM
Micro-D Solder Cup Termination–These connectors feature gold-plated TwistPin contacts for best performance. Use with #26 AWG or smaller wire. Specify nickel-plated shells or cadmium plated shells for best availability.
Now Available with #24 AWG Contacts–AWG 24 wire offers increased mechanical strength and lower voltage drop. HIGH WOOD Micro-D solder cup connectors are now compatible with 24 AWG stranded or solid wire. Specify “N” for 24 AWG pin contacts, or “T” for 24 AWG socket contacts.

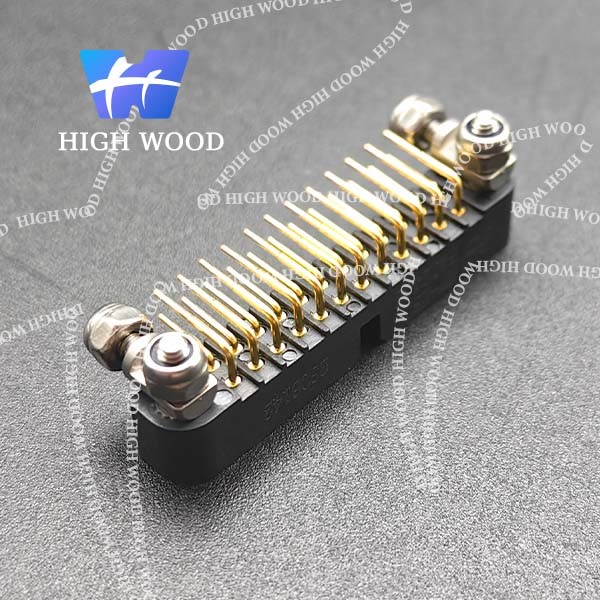

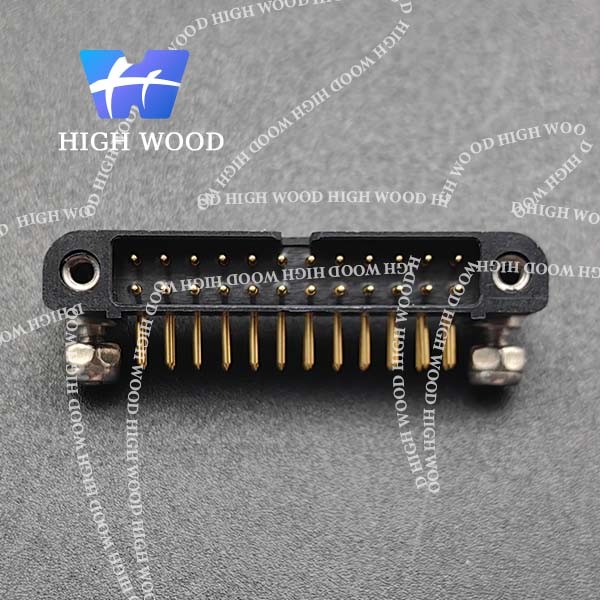

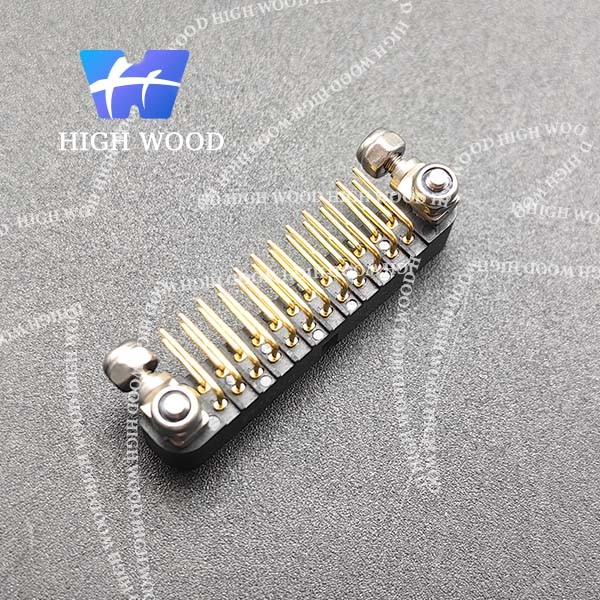

Product pictures:
SPECIFICATIONS:
