HW-M80 Connectors, HW-M804C10405F1-04-325-00-000
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xResistance To Insulation | ≥1000MΩ | Insulators | PPS+glass Fiber |
---|---|---|---|
Accessory | Stainless Steel | Endurance | 500cycles |
Operating Temperature | -55 ℃ - 125 ℃ | Contact | Copper Alloy Gold Plating |
High Light | Copper Alloy Gold Plating Connectors,HW-M804C10405F1-04-325-00-000 |
HW-M804C10405F1-04-325-00-000
The HW-M804C10405F1-04-325-00-000 has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications, pecializes in the design,development and manufacture of electronic connectors.

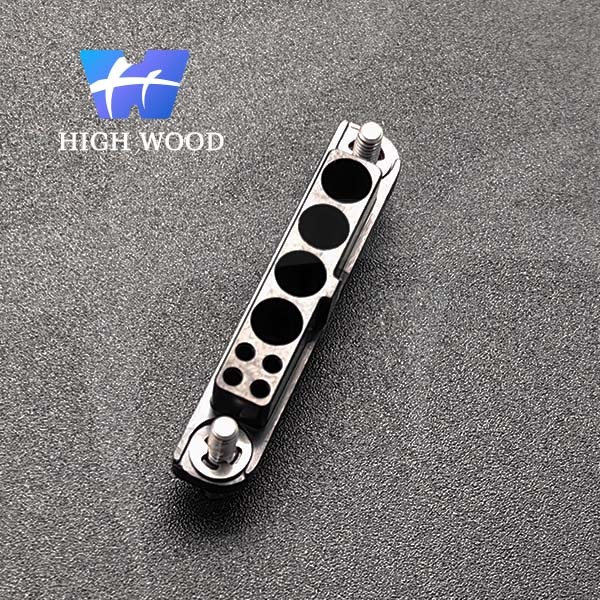

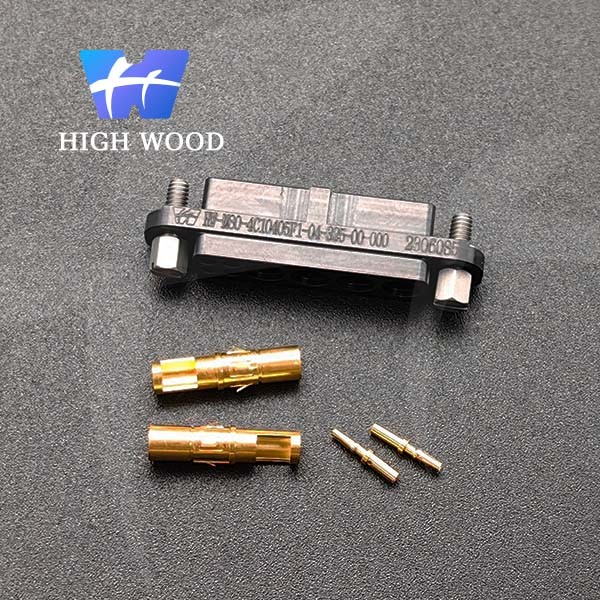

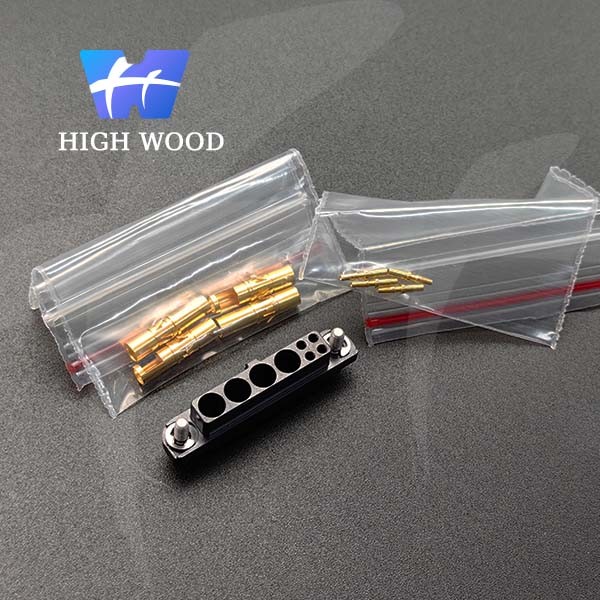

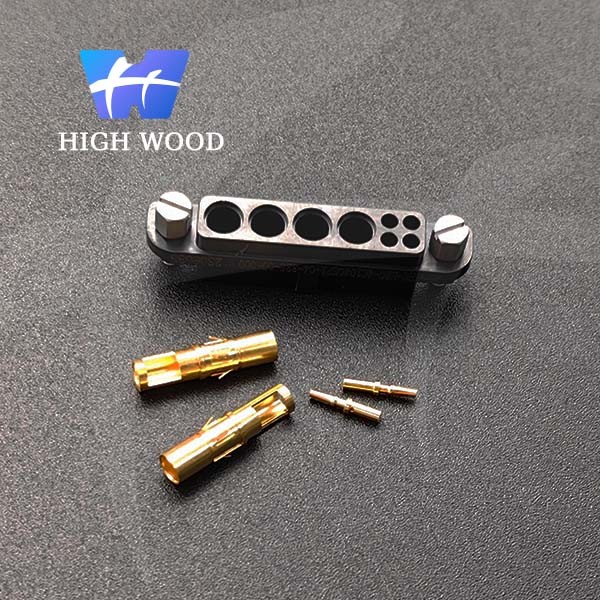

Product pictures:
SPECIFICATIONS:
Materials and surface treatment | |
Insulators: | PPS+glass fiber |
Contacts: | Copper alloy gold plating |
Property of electricity | |
Resistance to high pressure: | 800V AC/DC |
Resistance to insulation: | ≥1000MΩ |
LF pins: |
Operating current 25℃, ≤3A Operating current 85℃, ≤2.2A Contact resistance ≤25MΩ |
HP Pins: | Operating current ≤20A |
Mating times: | 500 times |
Working temperature: | -55℃ to 125℃ |
