HW-M80 Connectors, HW-M80-400000000-04-321-00-000

  • HW-M80 Connectors, HW-M80-400000000-04-321-00-000
  • HW-M80 Connectors, HW-M80-400000000-04-321-00-000
  • HW-M80 Connectors, HW-M80-400000000-04-321-00-000
  • HW-M80 Connectors, HW-M80-400000000-04-321-00-000
Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number HW-M80-400000000-04-321-00-000
Minimum Order Quantity 100PCS
Price 10＄--150＄
Packaging Details standard export package
Delivery Time 2--9 weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resistance To Insulation ≥1000MΩ Insulators PPS+glass Fiber
Accessory Stainless Steel Endurance 500cycles
Operating Temperature -55 ℃ - 125 ℃ Contact Copper Alloy Gold Plating
Highlight

PPS Glass Fiber Insulators Connectors

,

HW-M80-400000000-04-321-00-000
Leave a Message
Product Description

HW-M80-400000000-04-321-00-000

The HW-M80-400000000-04-321-00-000 has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications, pecializes in the design,development and manufacture of electronic connectors.

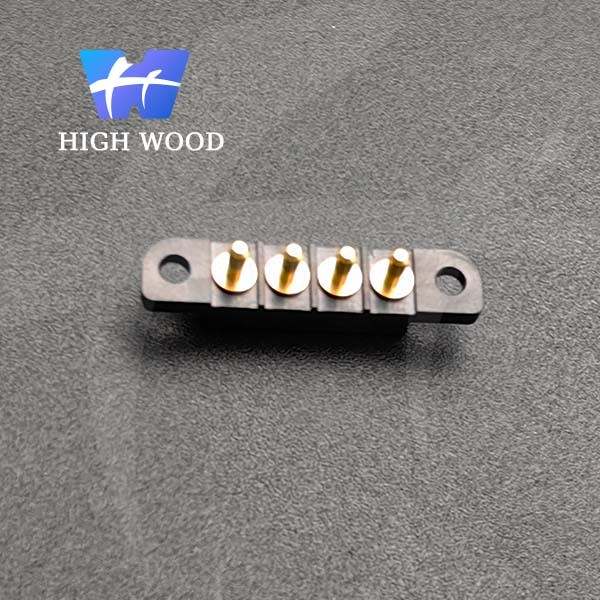

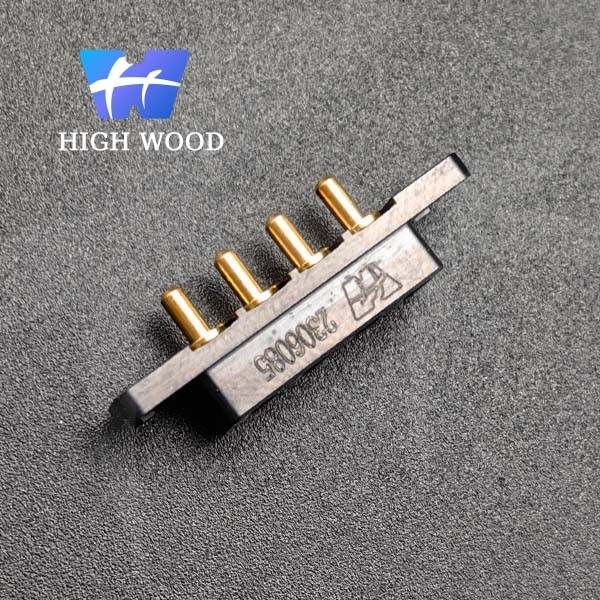

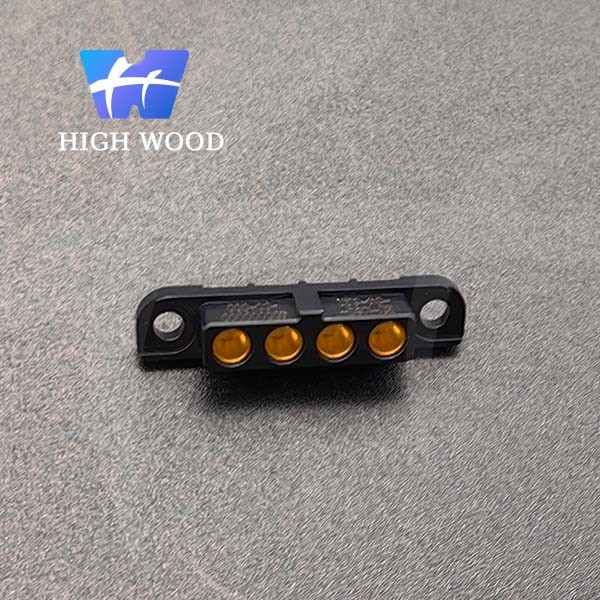

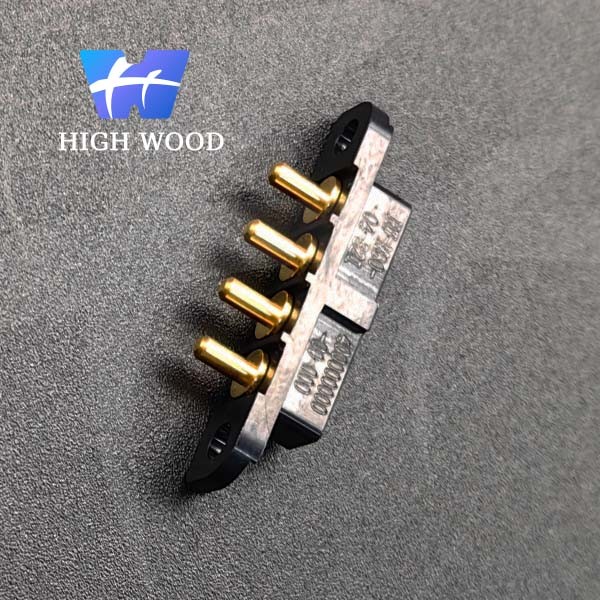

Product pictures:

 HW-M80 Connectors, HW-M80-400000000-04-321-00-000 0HW-M80 Connectors, HW-M80-400000000-04-321-00-000 1HW-M80 Connectors, HW-M80-400000000-04-321-00-000 2





SPECIFICATIONS:

Materials and surface treatment
Insulators: PPS+glass fiber
Contacts: Copper alloy gold plating
Property of electricity
Resistance to high pressure: 800V AC/DC
Resistance to insulation: ≥1000MΩ
LF pins:

Operating current 25℃, ≤3A

Operating current 85℃, ≤2.2A

Contact resistance ≤25MΩ
HP Pins: Operating current ≤20A
Mating times: 500 times
Working temperature: -55℃ to 125℃
