HW-M80 Connectors, HW-M80-4D10805F2-08-325-02-325
| Place of Origin | China |
|---|---|
| Brand Name | HIGH WOOD |
| Certification | AS9001 |
| Model Number | HW-M80-4D10805F2-08-325-02-325 |
| Minimum Order Quantity | 100PCS |
| Price | 10＄--150＄ |
| Packaging Details | standard export package |
| Delivery Time | 2--9 weeks |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resistance To Insulation | ≥1000MΩ | Insulators | PPS+glass Fiber |
|---|---|---|---|
| Accessory | Stainless Steel | Endurance | 500cycles |
| Operating Temperature | -55 ℃ - 125 ℃ | Contact | Copper Alloy Nickel Base Gold Plating |
Product Description
HW-M80-4D10805F2-08-325-02-325
The HW-M80-4D10805F2-08-325-02-325 has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications, pecializes in the design,development and manufacture of electronic connectors.

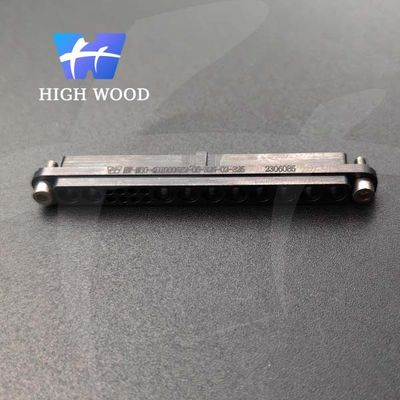

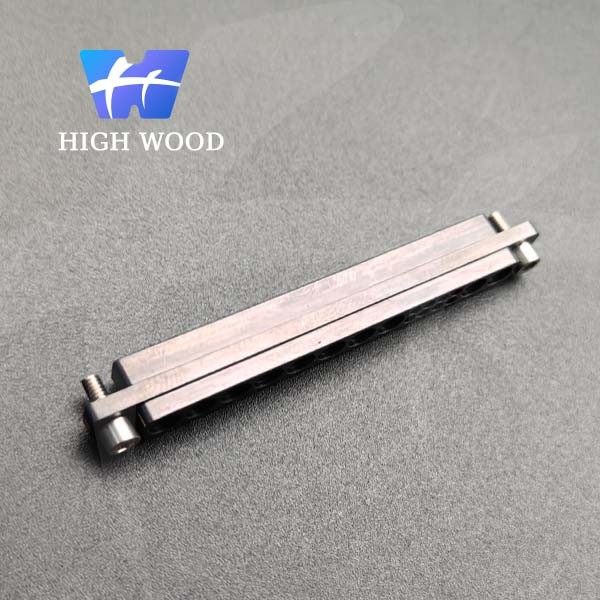

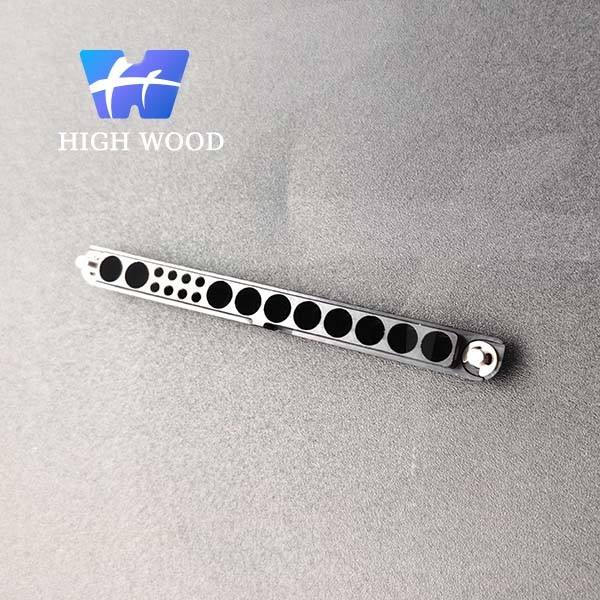

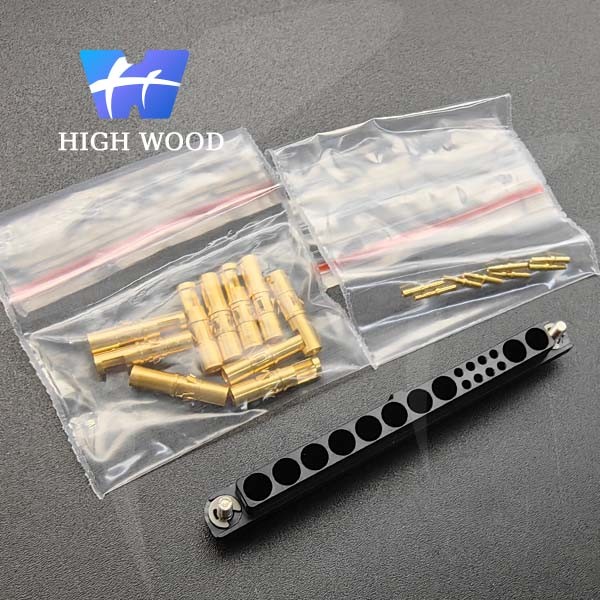

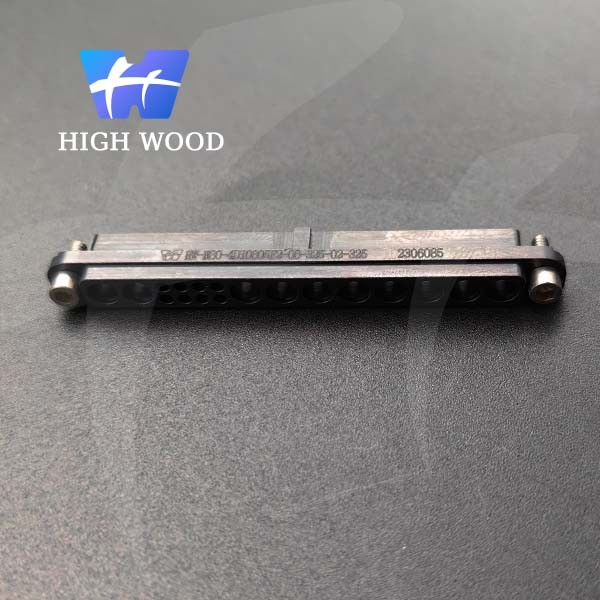

Product pictures:
SPECIFICATIONS:
| Material and coating | |
| Insulating medium | Glass fiber reinforced PPS,UL94-V0 is radiation resistant, non-moisture absorbing and ozone resistant |
| Contacts | Copper alloy nickel base gold plating |
| Accessory | Stainless steel |
| Electrical performance index | |
| Pressure test (sea level) | 800V AC/DC |
| Insulation Resistance | ≥1000MΩ |
| Rated Current | Signal contact: working current 25℃,≤3A; Working current 85℃, ≤2.2A; Contact resistance ≤10mΩ High current contact: ≤20A; Contact resistance ≤ 4mΩ |
| Mechanical performance index | |
| Mechanical life | 500 cycles |
| Environmental performance index | |
| Operating Temperature | -55 C℃ to 125 ℃ |
