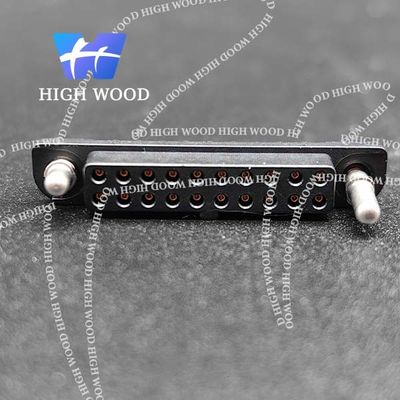

HW-CMM Connector , HW-222YL20M12LH , 2mm Pitch.

Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number HW-222YL20M12LH
Minimum Order Quantity 100PCS
Price 10$--150$
Packaging Details standard export package
Delivery Time 2--9 weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MECHANICAL Mechanical Operations:Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles P.C.LF CONTACTS(Female) Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ
INSULATOR Special PPS UL 94-V0 CRIMP LF CONTACTS Male: Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ
P.C.LF CONTACTS(Male) Male:tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ FIXING HARDARE Jackscrew:Stainless Steel Latch:Bertllium Copper/plated Nickel
Highlight

2500 Cycles HW-CMM Connector

,

HW-222YL20M12LH

Leave a Message
Product Description

HW-CMM Connector, HW-222YL20M12LH,2mm Pitch.

HW-222YL20M12LH:



The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications.




 Part numbering



HW-CMM Connector , HW-222YL20M12LH , 2mm Pitch. 0

nn=number of LF contacts



Type L
Y 3
YL 4.5



Calculation:

A=nn-2
B=A+7
C=A+12













FIXING HARDWARE FOR CMM 220 MALE



REFERENCE ASSEMBLY ON PCB OVERLL DIMENSIONS RECOMMENDATION
M12LH HW-CMM Connector , HW-222YL20M12LH , 2mm Pitch. 1 HW-CMM Connector , HW-222YL20M12LH , 2mm Pitch. 2

M12LH :CMM female :

YL-T

(D :straight)




MALE STRAIGHT ON CABLE P/N 30-33xx (solder or crimp)


Loaded Unloaded Ampere Cable A ØB ØC Length D hole Length E body Length F conductor Solder Crimp by HX3 Hexagone size/Dies Crimp by AF8
      AWG 20 AWG 18 AWG 16 AWG 14 AWG 12
3305 30-3305 5A ×         1,1mm

1,65
mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3308 30-3308 8A   ×       1,35mm

1,85
mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3310 30-3310 10A × × ×     1,7mm   6,2mm 6,7mm 6mm OK   OK
3315 30-3315 15A       ×   2mm   6,2mm 6,7mm 6mm OK   OK
3320 30-3320 20A         × 2,6mm   6,2mm 6,7mm 5,3mm OK   OK



Loaded Unloaded Ampere Cable A ØB ØC Length D hole Length E body Length F conductor Solder Crimp by HX3 Hexagone size/Dies Crimp by AF8
      AWG 20 AWG 18 AWG 16 AWG 14 AWG 12
3305 30-3305 5A ×         1,1mm

1,65

mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3308 30-3308 8A   ×       1,35mm

1,85

mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3310 30-3310 10A × × ×     1,7mm   6,2mm 6,7mm 6mm OK   OK
3315 30-3315 15A       ×   2mm   6,2mm 6,7mm 6mm OK   OK
3320 30-3320 20A         × 2,6mm   6,2mm 6,7mm 5,3mm OK   OK





CMM 220 SERIES in male & female styles for HF/HP contacts



CMM 220

Male & Female

Special

contacts only

Special contacts number 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Distance between

axis

A 4 8 12 16 20 24 28 32 36 40 44 48 52 56
B 13 17 21 25 29 33 37 41 45 49 53 57 61 65
Length in mm C 18 22 26 30 34 38 42 46 50 54 58 62 66 70





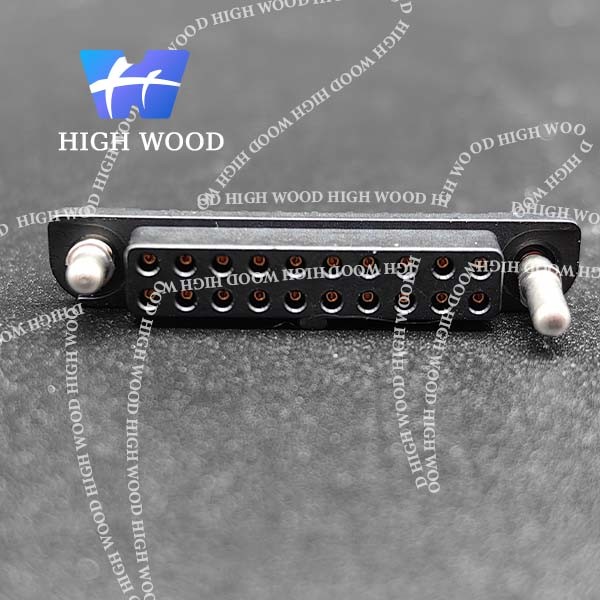

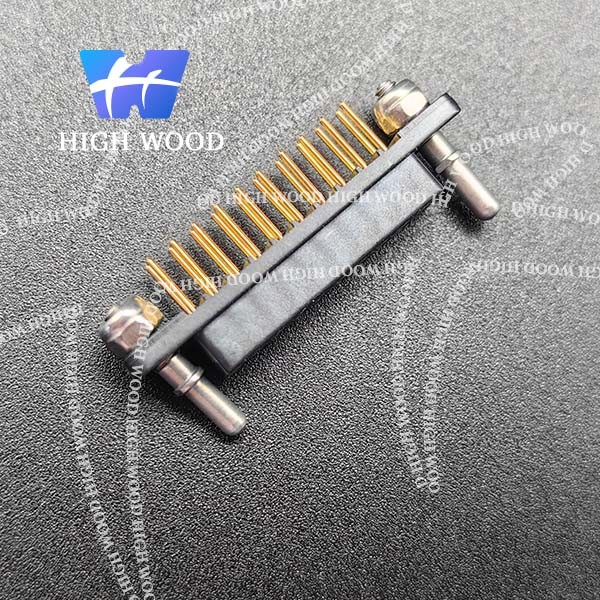

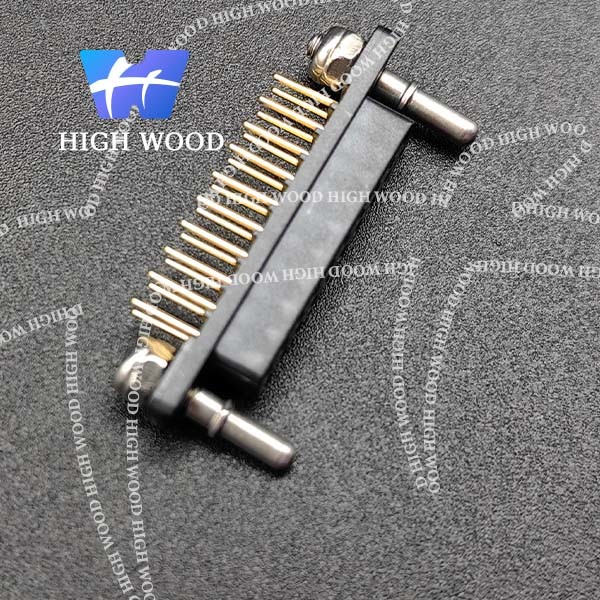

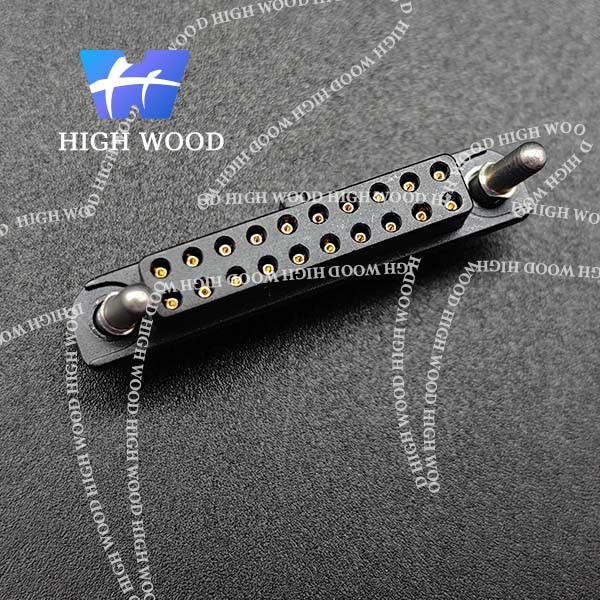

Product showing



HW-CMM Connector , HW-222YL20M12LH , 2mm Pitch. 3

HW-CMM Connector , HW-222YL20M12LH , 2mm Pitch. 4

HW-CMM Connector , HW-222YL20M12LH , 2mm Pitch. 5

HW-CMM Connector , HW-222YL20M12LH , 2mm Pitch. 6
