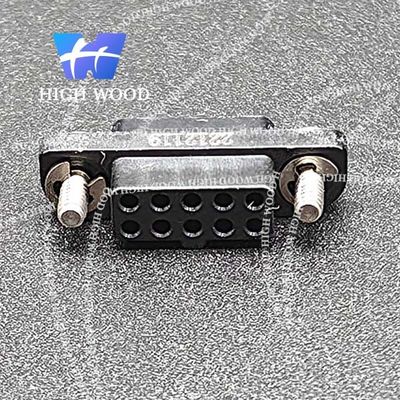

HW-CMM Connector, HW-M80-4611042,2mm Pitch.
| Place of Origin | China |
|---|---|
| Brand Name | HIGH WOOD |
| Certification | AS9001 |
| Model Number | HW-M80-4611042 |
| Minimum Order Quantity | 100PCS |
| Price | 10＄--150＄ |
| Packaging Details | standard export package |
| Delivery Time | 2--9 weeks |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| P.C.LF CONTACTS(Male) | Male:tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ | P.C.LF CONTACTS(Female) | Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ |
|---|---|---|---|
| MECHANICAL | Mechanical Operations:Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles | CRIMP LF CONTACTS | Male: Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ |
| FIXING HARDARE | Jackscrew:Stainless Steel Latch:Bertllium Copper/plated Nickel | INSULATOR | Special PPS UL 94-V0 |
Product Description
HW-M80-4611042:
The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications,NICOMATICs pecializes in the design,development and manufacture of electronic connectors.
Materials and coating:
| Materials and coating | |
| Insulation medium | Glass fiber reinforced PPS,UL94-VO Radiation resistant,non hygroscopic,ozone resistant |
| Contact | Copper alloy silver plated |
| Epiphy | Stainless steel |
| Electrical performance index | |
| electricity |
25℃,Maximum 3A 85℃,Maximum 2.2A contact resistance ≤25mΩ |
| Voltage withstand test(sea level) | 800V AC/DC |
| Insulation resitance | ≥500mΩ |
| Mechanical performance index | |
| Mechanical life | 500 times of plugging and unolugging |
| Environmental performance index | |
| Operating ambient temperature | -55℃ - 125℃ |
Product Details:
Product display:
