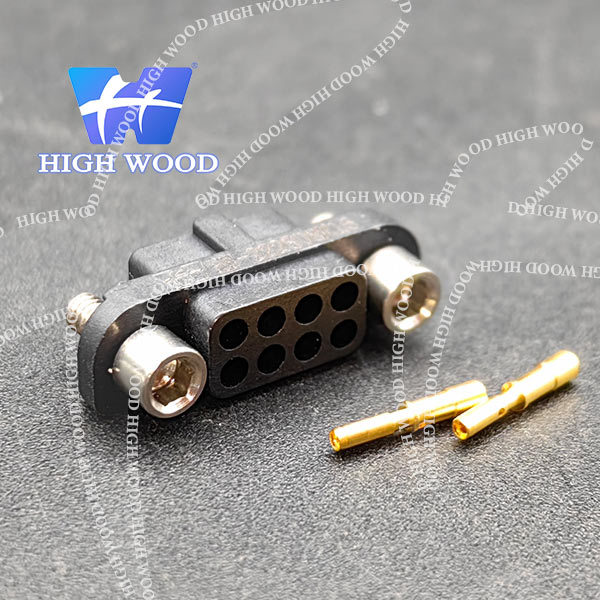

HW-CMM Connector, HW-222S08M16, 2mm pitch.

Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number HW-222S08M16
Minimum Order Quantity 100PCS
Price 10$--150$
Packaging Details standard export package
Delivery Time 2--9 weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CRIMP LF CONTACTS Male: Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ P.C.LF CONTACTS(Male) Male:tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ
P.C.LF CONTACTS(Female) Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ FIXING HARDARE Jackscrew:Stainless Steel Latch:Bertllium Copper/plated Nickel
INSULATOR Special PPS UL 94-V0 MECHANICAL Mechanical Operations:Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles
Leave a Message
Product Description

HW-222S08M16


The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications, pecializes in the design,development and manufacture of electronic connectors.





Part numbering:

HW-CMM Connector, HW-222S08M16, 2mm pitch. 0

FIXING HARDWARE FOR CMM 220 FEMALE:

REFERENC ASSEMBLY ON PCB OVERALL DIMENSIONS RECOMMENDATION

M16


HW-CMM Connector, HW-222S08M16, 2mm pitch. 1

HW-CMM Connector, HW-222S08M16, 2mm pitch. 2

M16 :
CMM Female :
Y-YL-T-S-C-E
(D :straight)



MALE STRAIGHT ON CABLE P/N 30-33xx (solder or crimp):


Loaded Unloaded Ampere Cable A ØB ØC Length D hole Length E body Length F conductor Solder Crimp by HX3 Hexagone size/Dies Crimp by AF8
      AWG 20 AWG 18 AWG 16 AWG 14 AWG 12
3305 30-3305 5A ×         1,1mm

1,65
mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3308 30-3308 8A   ×       1,35mm

1,85
mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3310 30-3310 10A × × ×     1,7mm   6,2mm 6,7mm 6mm OK   OK
3315 30-3315 15A       ×   2mm   6,2mm 6,7mm 6mm OK   OK
3320 30-3320 20A         × 2,6mm   6,2mm 6,7mm 5,3mm OK   OK



1. The contacts are distributed, and it is recommended to crimp the AWG22 wire for LF contacts;

2. After LF contact is pressed into the base with special tools, it is recommended to use the heat shrinkable sleeve

shrinks

its tail and fills the base cavity with glue;



Materials and coating:

Materials and coating
Insulation medium Glass fiber reinforced PPS,UL94-VO Radiation resistant,non hygroscopic,ozone resistant
Contact LF contact copper alloy nickel base plating gold 0.8μ
Epiphy Stainless steel
Electrical performance index
Voltage withstand test(sea level) 600V AC/DC
Insulation resitance ≥100mΩ
Contact Signal contact:working current 25*C,≤3A,working current 85C,≤2.2A,contact resistance≤10mΩ
Mechanical performance index
Mechanical life 500 times of plugging and unolugging
Single core insertion and extraction force of contact LF contact:insertion force≤2N,pull-out force≥0.2N
Retention Force in contact bace ≥10N
Environmental performance index
Operating ambient temperature 60℃-260℃
Vibrating level 0.75mm, 10G (root mean square) random vibration superimposed with sinusoidal vibration, 6 hours, instant break less than 2 nanoseconds
lmpact grade 100G, 6 ms
Salt resistance HcFc 141 bMGX (ATOCHEM) solvent
Salt spray test 96h

Moisture

resistance

56 days, 90% humidity

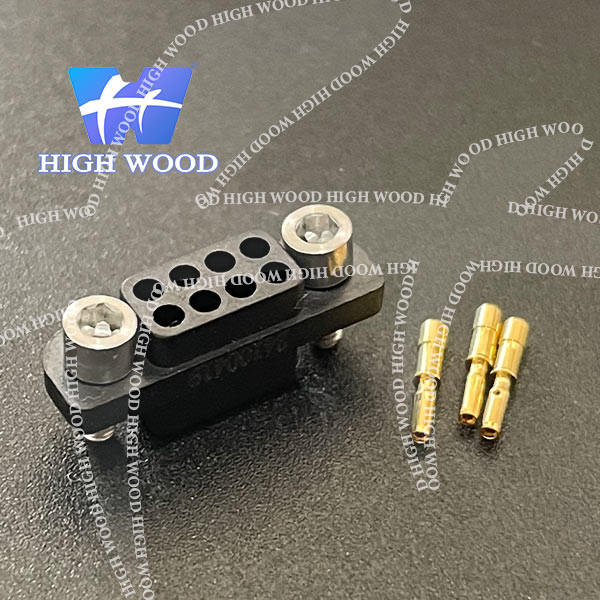

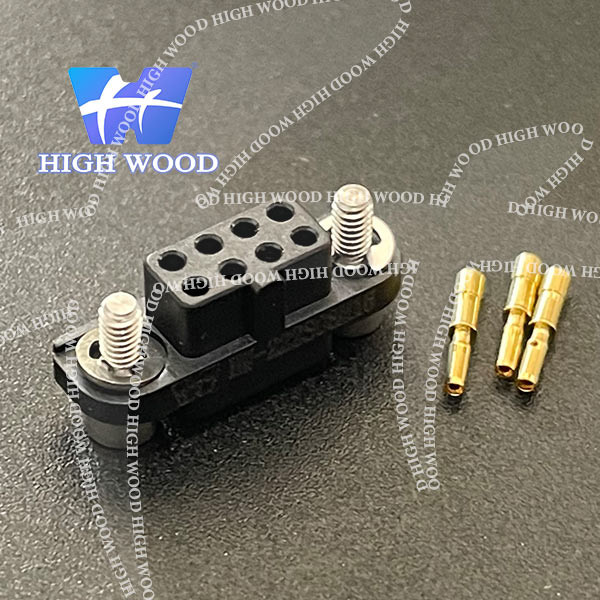

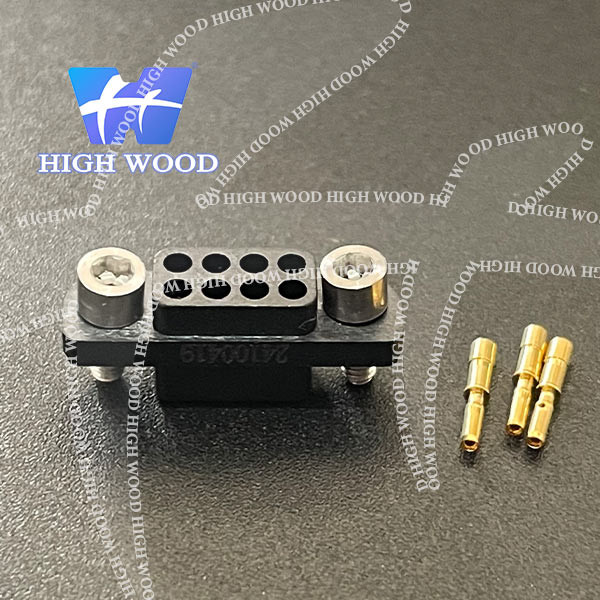

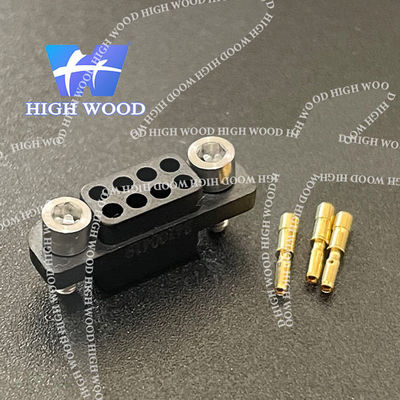

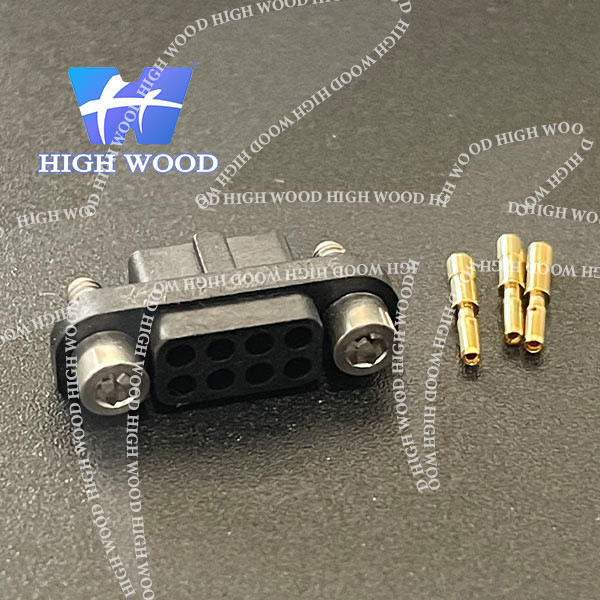

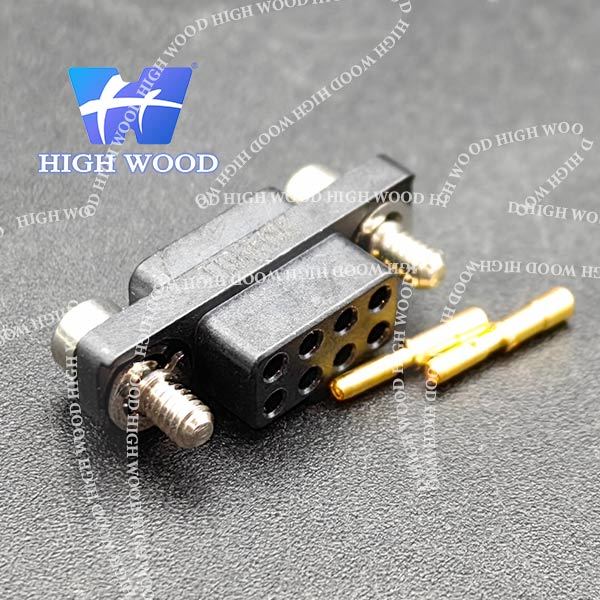

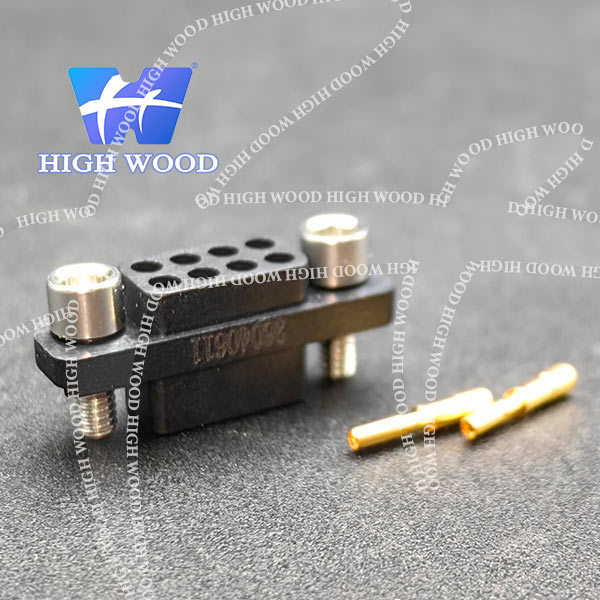

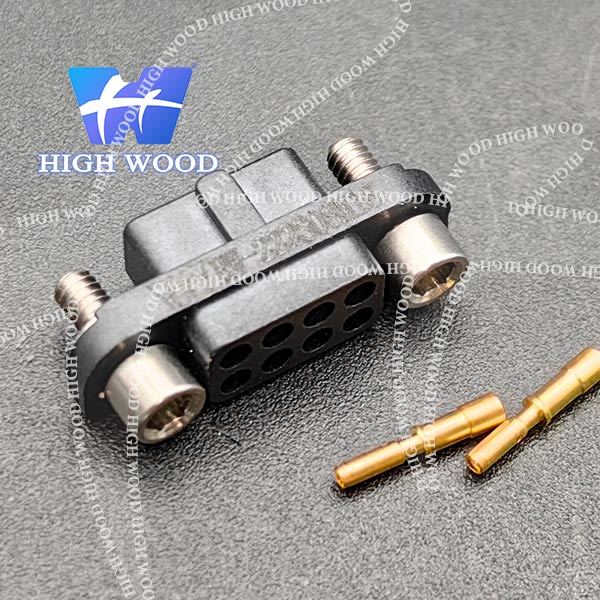

Product pictures:


HW-CMM Connector, HW-222S08M16, 2mm pitch. 3HW-CMM Connector, HW-222S08M16, 2mm pitch. 4HW-CMM Connector, HW-222S08M16, 2mm pitch. 5HW-CMM Connector, HW-222S08M16, 2mm pitch. 6





HW-222S08M16

HW-CMM Connector, HW-222S08M16, 2mm pitch. 7HW-CMM Connector, HW-222S08M16, 2mm pitch. 8

HW-CMM Connector, HW-222S08M16, 2mm pitch. 9
