HW-CMM Connector,HW-322C039H01

  • HW-CMM Connector,HW-322C039H01
  • HW-CMM Connector,HW-322C039H01
  • HW-CMM Connector,HW-322C039H01
  • HW-CMM Connector,HW-322C039H01
  • HW-CMM Connector,HW-322C039H01
Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number HW-322C039H01
Minimum Order Quantity 100PCS
Price 10＄--150＄
Packaging Details standard export package
Delivery Time 2--9 weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CRIMP LF CONTACTS Male: Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ FIXING HARDARE Jackscrew:Stainless Steel Latch:Bertllium Copper/plated Nickel
MECHANICAL Mechanical Operations:Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles P.C.LF CONTACTS(Female) Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ
INSULATOR Special PPS UL 94-V0 P.C.LF CONTACTS(Male) Male:tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ
Leave a Message
Product Description

HW-322C039H01

The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications,The CMM MICRO CONNECTOR interconnection system is a 2mm pitch connector (square matrix) witch proven high.


 Part numbering:



HW-CMM Connector,HW-322C039H01 0

RACK INTERCONNECTION:

Male connectors cmm series 320&340 rack
Type of contact in connetor PCB contacts contacts on cable
Type of PCB mount straight 90° straight 90°
      PCB chickness(mm)

0.8min

2max

1.5min

4max

0.8min

2max

1.5min

4max

 4max

0.8min

2max

 1,5min4max 4max Floation

No fixing on pcb




Fixing M38 M38H M36 M36H F58 F58H F59 F59H F48 H11 M35 M39 F48 H11 M3xx F40
      0.8 min

M35





Ok



Ok



Ok



Ok



Ok





Ok





Ok


2max M35H         OK OK OK OK OK       OK     OK
  straight

1.5min



M39





Ok



Ok



Ok



Ok



Ok





OK





OK


4max M39h         OK OK OK OK OK       OK     OK
  90° 4max

H11



















 OK OK OK OK A













 A











OK
  F48 OK OK OK OK           A OK OK   A OK


No fixing

On PCB

 F40 OK OK OK OK           OK OK OK   OK OK
    Straight

0.8min

2max

M35





         OK OK OK OK OK       OK     OK


1.5min

4max

 M39         OK OK OK OK OK       OK     OK
    90° 4max

H11



















 OK OK OK OK A       A










  F48 OK OK OK OK           A OK OK   A OK
      floating M3xx         OK OK OK OK OK       OK     OK


NO fixing

On PCB

 No fixing on PCB F40 OK OK OK OK           OK OK OK   OK OK





REFERENCE



ASSEMBLY ON PCB



OVERALL DIMENSIONS



RECOMMENDATION



H01

H01C

HW-CMM Connector,HW-322C039H01 1



 HW-CMM Connector,HW-322C039H01 2

H01/H01C :

CMM female :

Y-YL-S-C-E (D : straight)

CMM male :

Y-YL-S-C-E (D : straight)












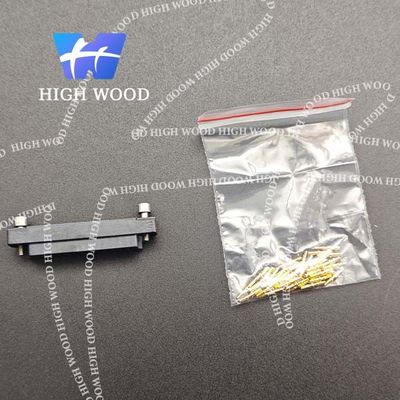

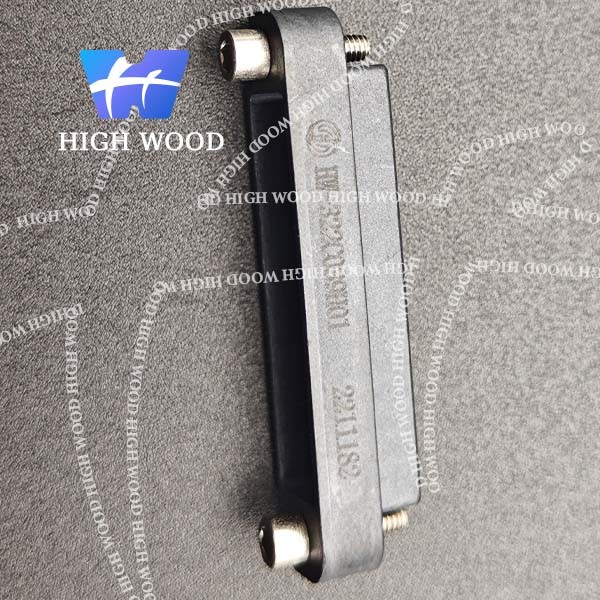

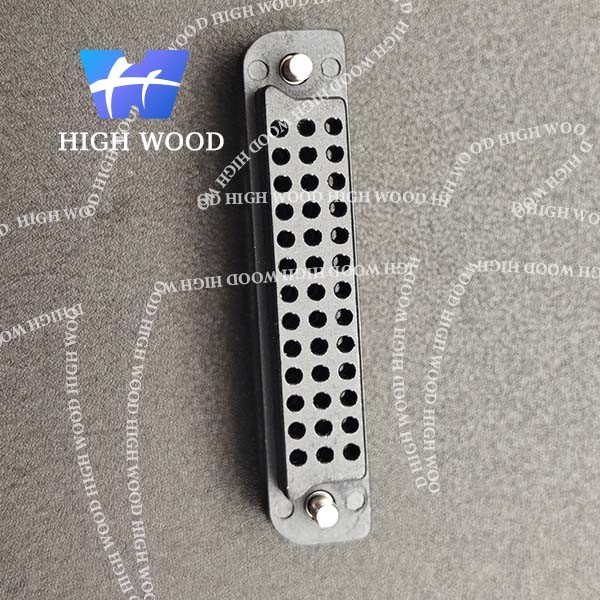

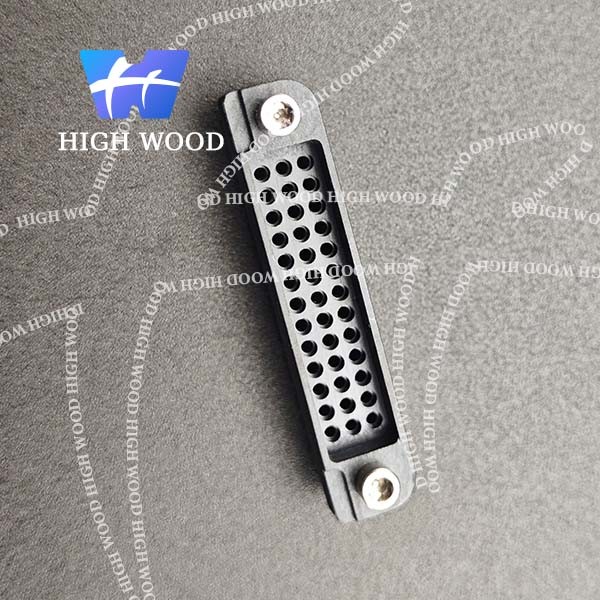

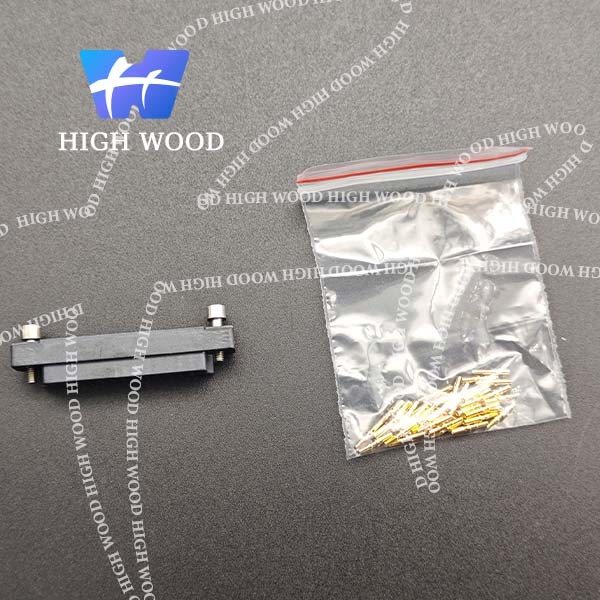

Product showing:

HW-CMM Connector,HW-322C039H01 3

HW-CMM Connector,HW-322C039H01 4

HW-CMM Connector,HW-322C039H01 5

HW-CMM Connector,HW-322C039H01 6
