HW-CMM Connector, HW-221Y06F22-0100-1300CMM, HW-M80 Connectors Micron-D Connectors Nano-D Connectors
| Place of Origin | China |
|---|---|
| Brand Name | HIGH WOOD |
| Certification | AS9001 |
| Model Number | HW-221Y06F22-0100-1300CMM |
| Minimum Order Quantity | 100PCS |
| Price | 10＄--150＄ |
| Packaging Details | standard export package |
| Delivery Time | 2--9 weeks |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CRIMP LF CONTACTS | Male: Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ | INSULATOR | Special PPS UL 94-V0 |
|---|---|---|---|
| FIXING HARDARE | Jackscrew:Stainless Steel Latch:Bertllium Copper/plated Nickel | P.C.LF CONTACTS(Male) | Male:tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ |
| P.C.LF CONTACTS(Female) | Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ | MECHANICAL | Mechanical Operations:Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles |
Product Description

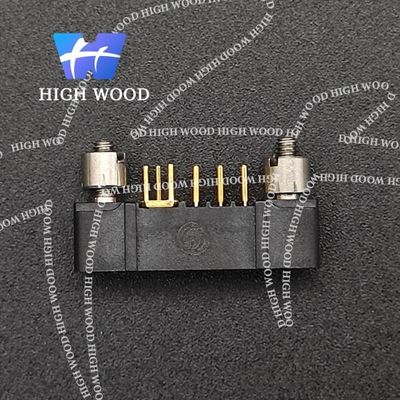

HW-221Y06F22-0100-1300CMM
The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications, pecializes in the design,development and manufacture of electronic connectors.
Part numbering:
FIXING HARDWARE FOR CMM 220 FEMALE
| REFERENC | ASSEMBLY ON PCB | OVERALL DIMENSIONS | RECOMMENDATION |
|
M16 |
|
|
M16 : |
MALE STRAIGHT ON CABLE P/N 30-33xx (solder or crimp):
| Loaded | Unloaded | Ampere | Cable A | ØB | ØC | Length D hole | Length E body | Length F conductor | Solder | ||||
| AWG 20 | AWG 18 | AWG 16 | AWG 14 | AWG 12 | |||||||||
| 3305 | 30-3305 | 5A | × | 1,1mm |
1,65 |
6,2mm | 6,7mm | 4,5mm | OK | ||||
| 3308 | 30-3308 | 8A | × | 1,35mm |
1,85 |
6,2mm | 6,7mm | 4,5mm | OK | ||||
| 3310 | 30-3310 | 10A | × | × | × | 1,7mm | 6,2mm | 6,7mm | 6mm | OK | |||
| 3315 | 30-3315 | 15A | × | 2mm | 6,2mm | 6,7mm | 6mm | OK | |||||
| 3320 | 30-3320 | 20A | × | 2,6mm | 6,2mm | 6,7mm | 5,3mm | OK | |||||
1. The contacts are distributed, and it is recommended to crimp the AWG22 wire for LF contacts;
2. After LF contact is pressed into the base with special tools, it is recommended to use the heat shrinkable sleeve
shrinks,its tail and fills the base cavity with glue;
Product details:
| Materials and coating | |
| Insulation medium | Glass fiber reinforced PPS,UL94-VO Radiation resistant,non hygroscopic,ozone resistant |
| Contact | LF contact copper alloy nickel base plating gold 0.8μ |
| Epiphy | Stainless steel |
| Electrical performance index | |
| Voltage withstand test(sea level) | 600V AC/DC |
| Insulation resitance | ≥100mΩ |
| Contact | Signal contact:working current 25*C,≤3A,working current 85C,≤2.2A,contact resistance≤10mΩ |
| Mechanical performance index | |
| Mechanical life | 500 times of plugging and unolugging |
| Single core insertion and extraction force of contact | LF contact:insertion force≤2N,pull-out force≥0.2N |
| Retention Force in contact bace | ≥10N |
| Environmental performance index | |
| Operating ambient temperature | 60℃-260℃ |
| Vibrating level | 0.75mm, 10G (root mean square) random vibration superimposed with sinusoidal vibration, 6 hours, instant break less than 2 nanoseconds |
| lmpact grade | 100G, 6 ms |
| Salt resistance | HcFc 141 bMGX (ATOCHEM) solvent |
| Salt spray test | 96h |
|
Moisture resistance |
56 days, 90% humidity |
