HW-CMM Connector, HW-221V10F26,HW-M80 Connectors Micron-D Connectors Nano-D Connectors

Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number HW-221V10F26
Minimum Order Quantity 100PCS
Price 10$--150$
Packaging Details standard export package
Delivery Time 2--9 weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
INSULATOR Special PPS UL 94-VO MECHANICAL Mechanical Operations:Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles
P.C.LF CONTACTS(Female) Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ P.C.LF CONTACTS(Male) Male:tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ
CRIMP LF CONTACTS Male: Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ FIXING HARDARE Jackscrew:Stainless Steel Latch:Bertllium Copper/plated Nickel
Leave a Message
Product Description

HW-221V10F26

The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications,The CMM MICRO CONNECTOR interconnection system is a 2mm pitch connector (square matrix) witch proven high.




FIXING HARDWARE FOR CMM 220 MALE:



REFERENCE ASSEMBLY ON PCB OVERLL DIMENSIONS RECOMMENDATION
F21 HW-CMM Connector, HW-221V10F26,HW-M80 Connectors Micron-D Connectors Nano-D Connectors 0Straight on PCB HW-CMM Connector, HW-221V10F26,HW-M80 Connectors Micron-D Connectors Nano-D Connectors 1

F21 :

CMM male :

Y-YL-T-S-C

(D-E :straight)



HW-CMM Connector, HW-221V10F26,HW-M80 Connectors Micron-D Connectors Nano-D Connectors 2F22 Straight on PCB
0.8min/2maxHW-CMM Connector, HW-221V10F26,HW-M80 Connectors Micron-D Connectors Nano-D Connectors 3
HW-CMM Connector, HW-221V10F26,HW-M80 Connectors Micron-D Connectors Nano-D Connectors 4

F22 :CMM male :

Y-T-S-C

(D-E :straight)

F22H :CMM male :

Y-T

(D :straight)



HW-CMM Connector, HW-221V10F26,HW-M80 Connectors Micron-D Connectors Nano-D Connectors 5F22H
HW-CMM Connector, HW-221V10F26,HW-M80 Connectors Micron-D Connectors Nano-D Connectors 6F24

Straight on PCB 1.5min/4max






MALE STRAIGHT ON CABLE P/N 30-33xx (solder or crimp):


Loaded Unloaded Ampere Cable A ØB ØC Length D hole Length E body Length F conductor Solder Crimp by HX3 Hexagone size/Dies Crimp by AF8
      AWG 20 AWG 18 AWG 16 AWG 14 AWG 12
3305 30-3305 5A ×         1,1mm

1,65
mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3308 30-3308 8A   ×       1,35mm

1,85
mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3310 30-3310 10A × × ×     1,7mm   6,2mm 6,7mm 6mm OK   OK
3315 30-3315 15A       ×   2mm   6,2mm 6,7mm 6mm OK   OK
3320 30-3320 20A         × 2,6mm   6,2mm 6,7mm 5,3mm OK   OK



Loaded Unloaded Ampere Cable A ØB ØC Length D hole Length E body Length F conductor Solder Crimp by HX3 Hexagone size/Dies Crimp by AF8
      AWG 20 AWG 18 AWG 16 AWG 14 AWG 12
3305 30-3305 5A ×         1,1mm

1,65

mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3308 30-3308 8A   ×       1,35mm

1,85

mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3310 30-3310 10A × × ×     1,7mm   6,2mm 6,7mm 6mm OK   OK
3315 30-3315 15A       ×   2mm   6,2mm 6,7mm 6mm OK   OK
3320 30-3320 20A         × 2,6mm   6,2mm 6,7mm 5,3mm OK   OK





CMM 220 SERIES in male & female styles for HF/HP contacts:

CMM 220

Male & Female

Special

contacts only

Special contacts number 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Distance between

axis

A 4 8 12 16 20 24 28 32 36 40 44 48 52 56
B 13 17 21 25 29 33 37 41 45 49 53 57 61 65
Length in mm C 18 22 26 30 34 38 42 46 50 54 58 62 66 70







Part numbering:

HW-CMM Connector, HW-221V10F26,HW-M80 Connectors Micron-D Connectors Nano-D Connectors 7

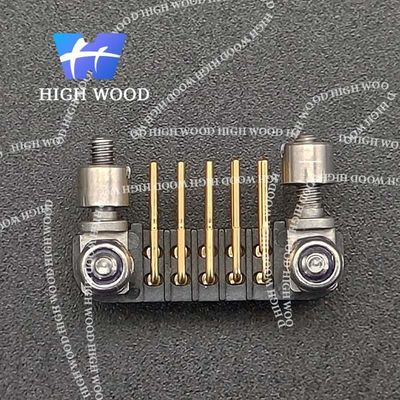

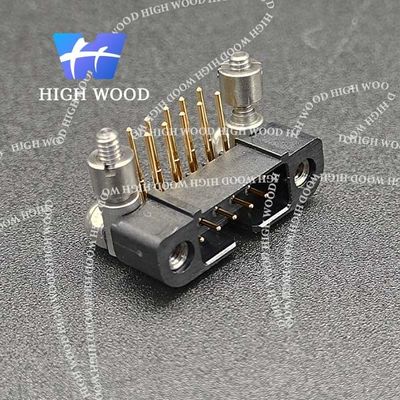

Product Pictures:

HW-CMM Connector, HW-221V10F26,HW-M80 Connectors Micron-D Connectors Nano-D Connectors 8HW-CMM Connector, HW-221V10F26,HW-M80 Connectors Micron-D Connectors Nano-D Connectors 9HW-CMM Connector, HW-221V10F26,HW-M80 Connectors Micron-D Connectors Nano-D Connectors 10HW-CMM Connector, HW-221V10F26,HW-M80 Connectors Micron-D Connectors Nano-D Connectors 11
