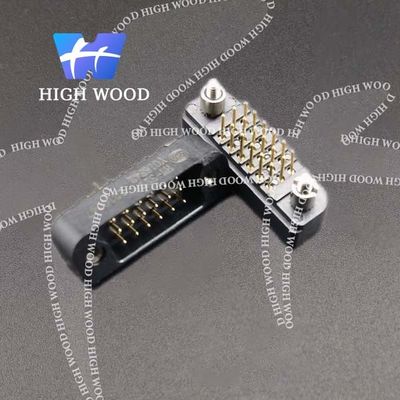

HW-CMM Connector, HW-321Y018F42,2mm Pitch.
| Place of Origin | China |
|---|---|
| Brand Name | HIGH WOOD |
| Certification | AS9001 |
| Model Number | HW-321Y018F42 |
| Minimum Order Quantity | 100PCS |
| Price | 10＄--150＄ |
| Packaging Details | standard export package |
| Delivery Time | 2--9 weeks |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| INSULATOR | Special PPS UL 94-V0 | CRIMP LF CONTACTS | Male: Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ |
|---|---|---|---|
| FIXING HARDARE | Jackscrew:Stainless Steel Latch:Bertllium Copper/plated Nickel | MECHANICAL | Mechanical Operations:Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles |
| P.C.LF CONTACTS(Female) | Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ | P.C.LF CONTACTS(Male) | Male:tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ |
Product Description
321Y018F42:
The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications,The CMM MICRO CONNECTOR interconnection system is a 2mm pitch connector (square matrix) witch proven high.
Part numbering:
RACK INTERCONNECTION:
| Male connectors cmm series 320&340 rack | ||||||||||||||||||||||||||
| Type of contact in connetor PCB contacts contacts on cable | ||||||||||||||||||||||||||
| Type of PCB mount straight 90° straight 90° | ||||||||||||||||||||||||||
| PCB chickness(mm) |
0.8min 2max |
1.5min 4max |
0.8min 2max |
1.5min 4max |
4max |
0.8min 2max |
1,5min4max | 4max | Floation |
No fixing on pcb
|
||||||||||||||||
| Fixing M38 M38H M36 M36H F58 F58H F59 F59H F48 H11 M35 M39 F48 H11 M3xx F40 | ||||||||||||||||||||||||||
| 0.8 min |
M35
|
Ok
|
Ok
|
Ok
|
Ok
|
Ok
|
Ok
|
Ok
|
||||||||||||||||||
| 2max | M35H | OK | OK | OK | OK | OK | OK | OK | ||||||||||||||||||
| straight |
1.5min
|
M39
|
Ok
|
Ok
|
Ok
|
Ok
|
Ok
|
OK
|
OK
|
|||||||||||||||||
| 4max | M39h | OK | OK | OK | OK | OK | OK | OK | ||||||||||||||||||
| 90° | 4max |
H11
|
|
|
|
|
OK | OK | OK | OK | A |
|
|
|
A |
|
|
OK |
||||||||
| F48 | OK | OK | OK | OK | A | OK | OK | A | OK | |||||||||||||||||
|
No fixing On PCB |
F40 | OK | OK | OK | OK | OK | OK | OK | OK | OK | ||||||||||||||||
| Straight |
0.8min 2max |
M35
|
OK | OK | OK | OK | OK | OK | OK | |||||||||||||||||
|
1.5min 4max |
M39 | OK | OK | OK | OK | OK | OK | OK | ||||||||||||||||||
| 90° | 4max |
H11
|
|
|
|
|
OK | OK | OK | OK | A | A |
|
|
||||||||||||
| F48 | OK | OK | OK | OK | A | OK | OK | A | OK | |||||||||||||||||
| floating | M3xx | OK | OK | OK | OK | OK | OK | OK | ||||||||||||||||||
|
NO fixing On PCB |
No fixing on PCB | F40 | OK | OK | OK | OK | OK | OK | OK | OK | OK | |||||||||||||||
| REFERENCE | ASSEMBLY ON PCB | OVERALL DIMENSIONS | RECOMMENDATION |
|
F4XX xx = (PCB thickness + 0,2 mm) x 10 Example : for 3 mm PCB, the reference is F432 (3 + 0,2) x 10 = 32 xx = 32
|
|
|
F4XX : CMM female : S-C (E : straight) CMM male : S-C (E : straight) |
| F41 | |
|
F41 : CMM female : Y-YL-S-C-E (D : straight) CMM male : S-C-E
|
| F52 |
|
F52 : CMM female : Y-S-C (D-E : straight) CMM male : S-C (E : straight)
|
|
|
F52H
|
|
F52H : CMM female : Y (D : straight) |
|
| F45 |
|
|
F45 : CMM female : YL-S-C (D-E : straight) CMM male : S-C (E : straight)
|
| F45H |
|
|
F45H : CMM female : YL (D : straight) |
| F42 |
|
|
F42 : CMM male : Y (D : straight) F42H : CMM male : Y (D : straight)
|
