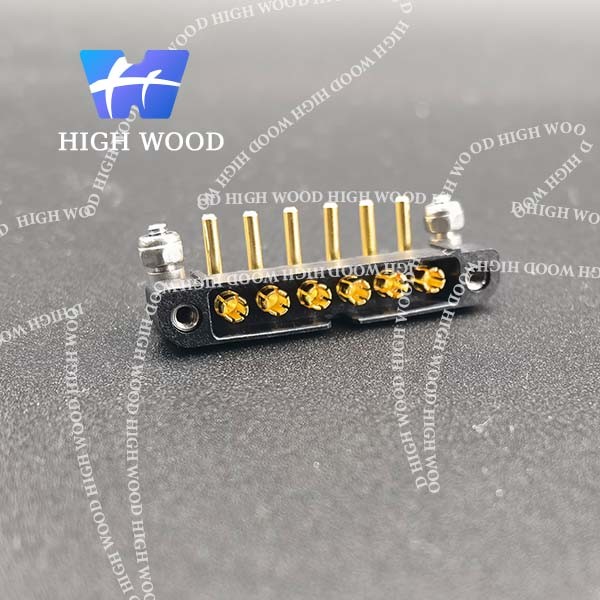

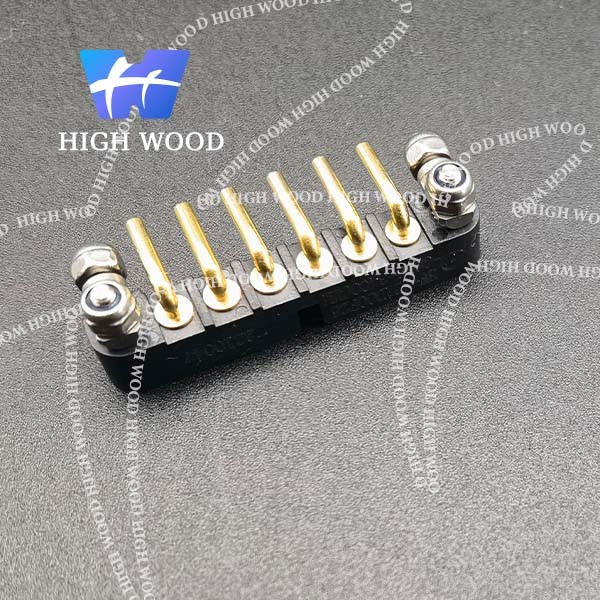

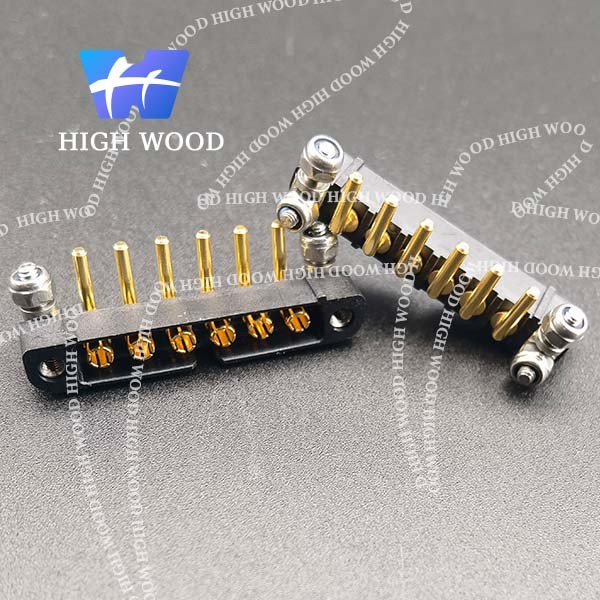

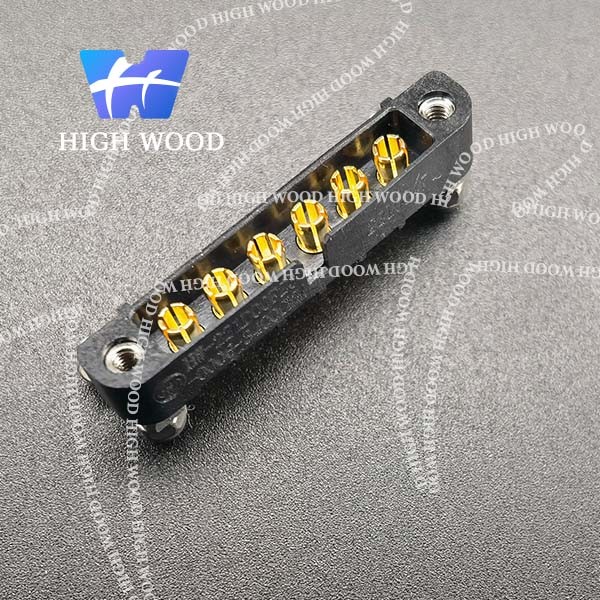

HW-CMM Connector, HW-221D00F26-0006-3400CMM,MTL-55302F,2mm Pitch.
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xP.C.LF CONTACTS(Female) | Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ | CRIMP LF CONTACTS | Male: Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ |
---|---|---|---|
MECHANICAL | Mechanical Operations:Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles | P.C.LF CONTACTS(Male) | Male:tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ |
INSULATOR | Special PPS UL 94-V0 | FIXING HARDARE | Jackscrew:Stainless Steel Latch:Bertllium Copper/plated Nickel |
221D00F26-0006-3400CMM:
The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications.
FIXING HARDWARE FOR CMM 220 FEMALE:
REFERENCE | ASSEMBLY ON PCB | OVERLL DIMENSIONS | RECOMMENDATION |
F21 | Straight on PCB |
F21 : CMM male : Y-YL-T-S-C (D-E :straight)
|
|
F22 |
Straight on PCB 0.8min/2max |
F22 :CMM male : Y-T-S-C (D-E :straight) F22H :CMM male : Y-T (D :straight)
|
|
F22H | |||
F24 |
Straight on PCB 1.5min/4max
|
F26 |
F26/F23: CMM male : V-VL-R-S-C-E (D :90°)
|
MALE STRAIGHT ON CABLE P/N 30-33xx (solder or crimp):
Loaded | Unloaded | Ampere | Cable A | ØB | ØC | Length D hole | Length E body | Length F conductor | Solder | Crimp by HX3 Hexagone size/Dies | Crimp by AF8 | ||||
AWG 20 | AWG 18 | AWG 16 | AWG 14 | AWG 12 | |||||||||||
3305 | 30-3305 | 5A | × | 1,1mm |
1,65 |
6,2mm | 6,7mm | 4,5mm | OK | Hex.1,9 mm/C14923 | OK | ||||
3308 | 30-3308 | 8A | × | 1,35mm |
1,85 |
6,2mm | 6,7mm | 4,5mm | OK | Hex.1,9 mm/C14923 | OK | ||||
3310 | 30-3310 | 10A | × | × | × | 1,7mm | 6,2mm | 6,7mm | 6mm | OK | OK | ||||
3315 | 30-3315 | 15A | × | 2mm | 6,2mm | 6,7mm | 6mm | OK | OK | ||||||
3320 | 30-3320 | 20A | × | 2,6mm | 6,2mm | 6,7mm | 5,3mm | OK | OK |
CMM 220 SERIES in male & female styles for HF/HP contacts:
CMM 220 Male & Female Special contacts only |
Special contacts number | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | |
Distance between axis |
A | 4 | 8 | 12 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | |
B | 13 | 17 | 21 | 25 | 29 | 33 | 37 | 41 | 45 | 49 | 53 | 57 | 61 | 65 | ||
Length in mm | C | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 | 58 | 62 | 66 | 70 |
