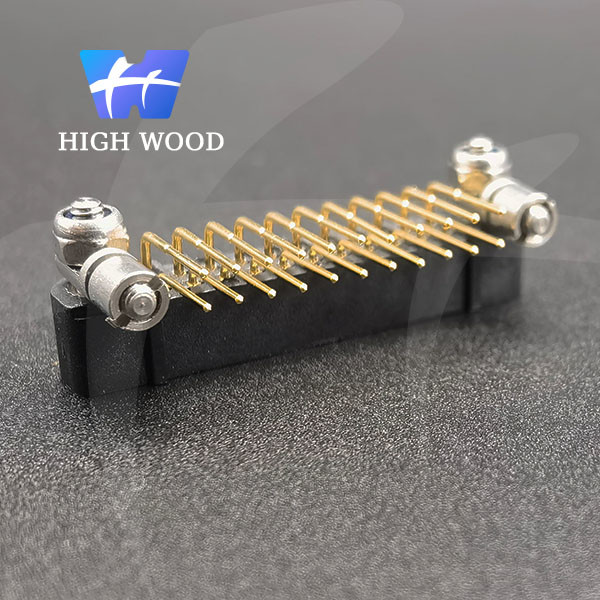

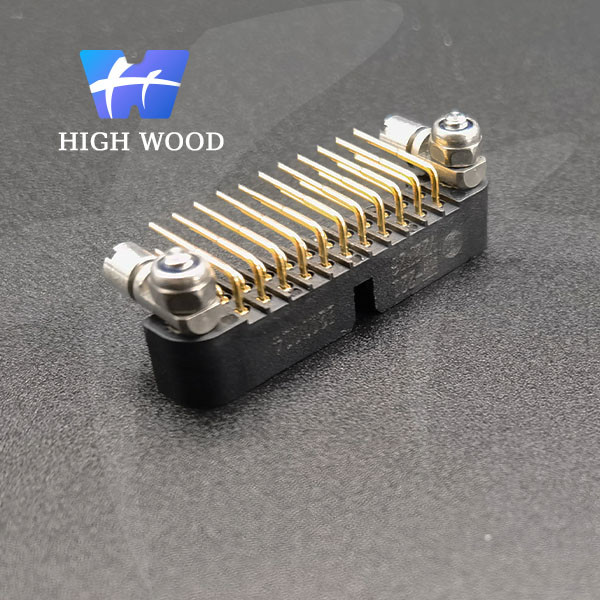

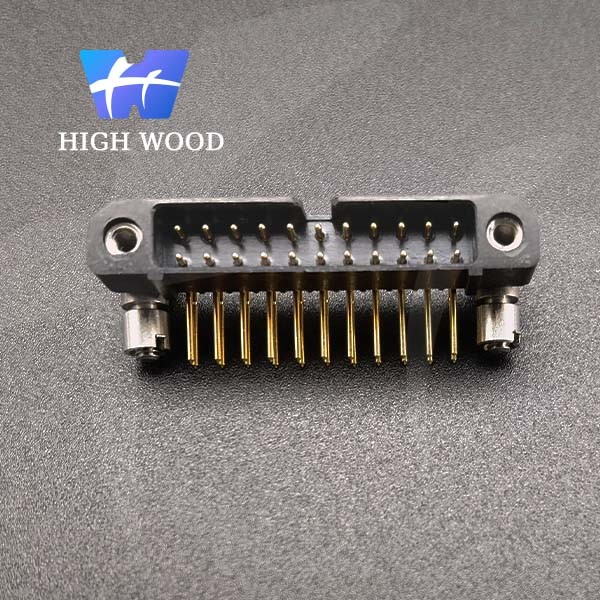

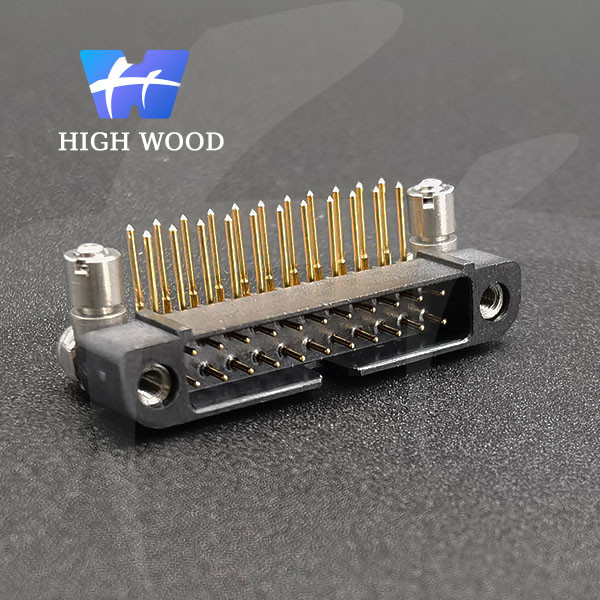

HW-CMM Connectors, HW-221V22F26,MTL-55302F,2mm Pitch.
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMECHANICAL | Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles | FIXING HARDARE | Stainless Steel Latch:Bertllium Copper/plated Nickel |
---|---|---|---|
P.C.LF CONTACTS(Female) | Copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ | CRIMP LF CONTACTS | Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ |
P.C.LF CONTACTS(Male) | Tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ | INSULATOR | Special PPS UL 94-V0 |
HW-CMM Connectoc, HW-221V22F26,MTL-55302F,2mm Pitch.
NICOMATIC specializes in the design,development and manufacture of electronic connectors.
The CMM MICRO CONNECTOR interconnection system is a 2mm pitch connector (square matrix) witch proven high reliability under the most extreme environmental conditions:
- Flexible architecture: “Board to Board”, “Board to Wire”and “Wire to Wire”configuration
- Modular and hybrid design:mixed layout full option with Low Frequency - LF(over 5 Amp)-and High Frequency-
HF-(over 11 GHz)and High Power -HP-(over 30 Amp)
- High reliability contact design&High performance under harsh use conditions
- Secure:integral jacking mechanism or locking by spring latch
How to order.
CMM SERIES 220 Male & Female |
LF contacts number | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | |
Distance between axis |
A | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
B | 9 | 11 | 13 | 15 | 17 | 19 | 21 | 23 | 25 | 27 | ||
Length in mm | C | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | |
LF contacts reference mark number |
D | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
E | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||
F | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||
G | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 |
24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 56 | 58 | 60 |
22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 54 | 56 | 58 |
29 | 31 | 33 | 35 | 37 | 39 | 41 | 43 | 45 | 61 | 63 | 65 |
34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 66 | 68 | 70 |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 28 | 29 | 30 |
13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 29 | 30 | 31 |
24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 56 | 58 | 60 |
42 | 44 | 46 | 48 | 50 | 52 | 54 |
40 | 42 | 44 | 46 | 48 | 50 | 52 |
47 | 49 | 51 | 53 | 55 | 57 | 59 |
52 | 54 | 56 | 58 | 60 | 62 | 64 |
1 | 1 | 1 | 1 | 1 | 1 | 1 |
21 | 22 | 23 | 24 | 25 | 26 | 27 |
22 | 23 | 24 | 25 | 26 | 27 | 28 |
42 | 44 | 46 | 48 | 50 | 52 | 54 |
