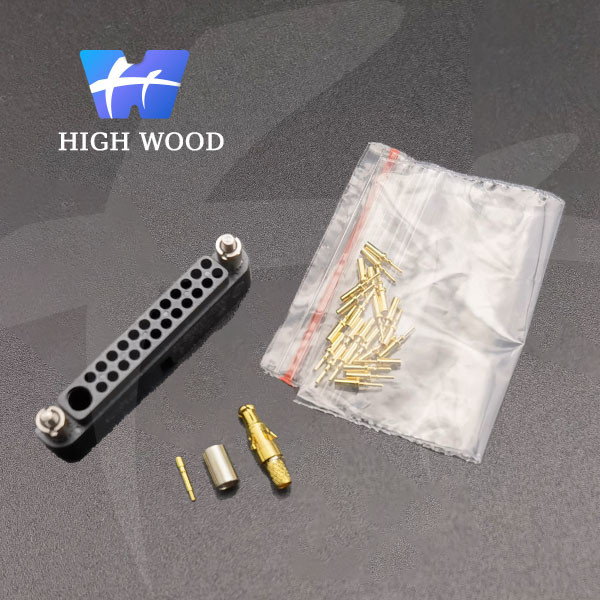

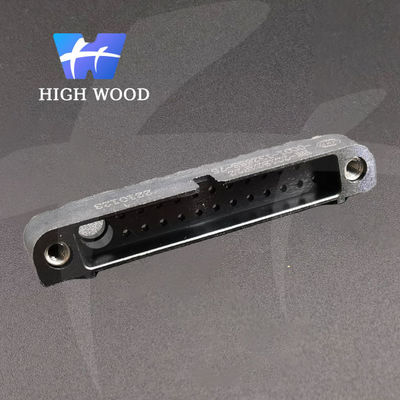

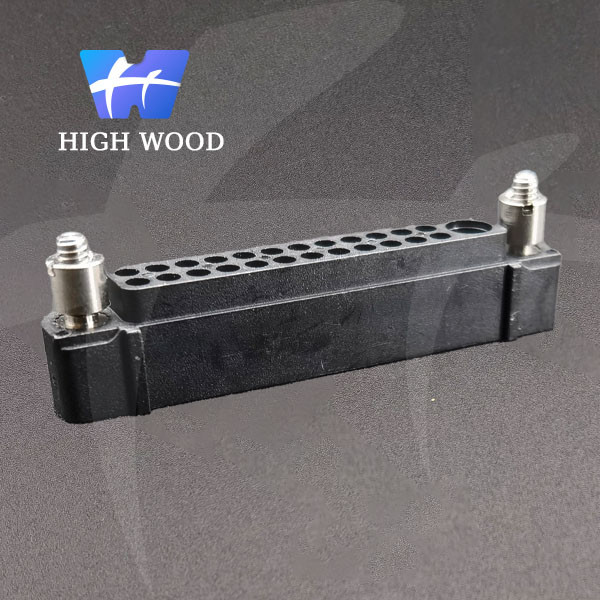

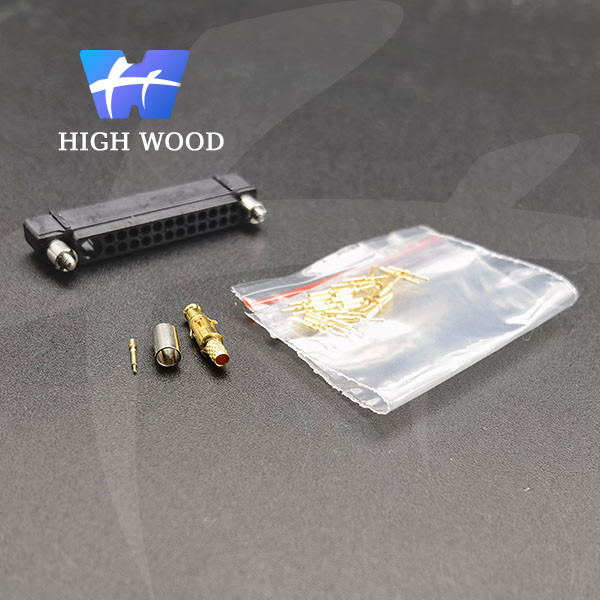

HW-CMM Connectors, HW-221S24F22-0001-1326SS-75
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMECHANICAL | Mechanical Operations:Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles | FIXING HARDARE | Jackscrew:Stainless Steel Latch:Bertllium Copper/plated Nickel |
---|---|---|---|
P.C.LF CONTACTS(Female) | Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ | CRIMP LF CONTACTS | Male: Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ |
P.C.LF CONTACTS(Male) | Male:tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ | INSULATOR | Special PPS UL 94-V0 |
HW-CMM Connectoc, HW-221S24F22-0001-1326SS-75
NICOMATIC specializes in the design,development and manufacture of electronic connectors.
The CMM MICRO CONNECTOR interconnection system is a 2mm pitch connector (square matrix) witch proven high reliability under the most extreme environmental conditions:
- Flexible architecture: “Board to Board”, “Board to Wire”and “Wire to Wire”configuration
- Modular and hybrid design:mixed layout full option with Low Frequency - LF(over 5 Amp)-and High Frequency-
HF-(over 11 GHz)and High Power -HP-(over 30 Amp)
- High reliability contact design&High performance under harsh use conditions
- Secure:integral jacking mechanism or locking by spring latch
How to order.
CMM SERIES 220 Male & Female |
LF contacts number | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | |
Distance between axis |
A | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
B | 9 | 11 | 13 | 15 | 17 | 19 | 21 | 23 | 25 | 27 | ||
Length in mm | C | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | |
LF contacts reference mark number |
D | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
E | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||
F | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||
G | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 |
24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 56 | 58 | 60 |
22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 54 | 56 | 58 |
29 | 31 | 33 | 35 | 37 | 39 | 41 | 43 | 45 | 61 | 63 | 65 |
34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 66 | 68 | 70 |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 28 | 29 | 30 |
13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 29 | 30 | 31 |
24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 56 | 58 | 60 |
42 | 44 | 46 | 48 | 50 | 52 | 54 |
40 | 42 | 44 | 46 | 48 | 50 | 52 |
47 | 49 | 51 | 53 | 55 | 57 | 59 |
52 | 54 | 56 | 58 | 60 | 62 | 64 |
1 | 1 | 1 | 1 | 1 | 1 | 1 |
21 | 22 | 23 | 24 | 25 | 26 | 27 |
22 | 23 | 24 | 25 | 26 | 27 | 28 |
42 | 44 | 46 | 48 | 50 | 52 | 54 |
CMM RANGE
|
USE
|
|||||||||||||
STRAIGHT ON PCB
|
90° ON PCB
|
STRAIGHT SMT
|
90° SMT
|
CRIMP
|
||||||||||
1000/200 |
Male
|
Y L=3,0 |
YL L=4,5 |
YM L=5,1 |
YX L=9,1 |
V L=3,0 |
VL L=4,5 |
T L=2,25 |
T L=3,35 |
R L=0,9 |
C Gauge 22 |
S Gauge 24-28 |
||
Female
|
Y L=3,0 |
YL L=4,5 |
YC L=1,2 |
PF Press fit |
V L=3,0 |
VL L=4,5 |
T L=2,25 |
T L=3,35 |
R L=0,9 |
C Gauge 22 |
S Gauge 24-28 |
|||
220
|
Male
|
Y L=3,0 |
YL L=4,5 |
YM L=5,1 |
YX L=9,1 |
V L=3,0 |
VL L=4,5 |
T L=2,25 |
T L=3,35 |
R L=0,9 |
C Gauge 22 |
S Gauge 24-28 |
||
Female
|
Y L=3,0 |
YL L=4,5 |
YC L=1,2 |
PF Press fit |
V L=3,0 |
VL L=4,5 |
T L=2,25 |
T L=3,35 |
R L=0,9 |
C Gauge 22 |
S Gauge 24-28 |
|||
320 |
Male
|
Y L=3,0 |
YL L=4,5 |
YM L=5,1 |
YX L=9,1 |
V L=3,0 |
VL L=4,5 |
C Gauge 22 |
S Gauge 24-28 |
|||||
Female
|
Y L=3,0 |
YL L=4,5 |
PF Press fit |
V L=3,0 |
VL L=4,5 |
C Gauge 22 |
S Gauge 24-28 |
|||||||
340 |
Male
|
Y L=3,0 |
YL L=4,5 |
YM L=5,1 |
YX L=9,1 |
V L=3,0 |
VL L=4,5 |
C Gauge 22 |
S Gauge 24-28 |
|||||
Female
|
Y L=3,0 |
YL L=4,5 |
PF Press fit |
V L=3,0 |
VL L=4,5 |
C Gauge 22 |
S Gauge 24-28 |
Loaded | Unloaded | Cable A | ØB | ØC | ØD | Hex.E |
1320SS | 30-1320-SS | Ø2,0 | 1mm | 2,2mm | 0,5mm | 2,4 on flat |
1324SS | 30-1324-SS | Ø2,4 | 1,5mm | 2,8mm | 0,6mm | 2,8 on flat |
1326SS | 30-1326-SS | Ø2,7 | 1,7mm | 2,8mm | 0,6mm | 2,8 on flat |
Product showing.
