HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors

Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number HW-22Y0202N
Minimum Order Quantity 100PCS
Price 10$--150$
Packaging Details Details standard export package
Delivery Time 2--9 weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature Range From-60℃ To +260℃ P.C.LF Contacts Copper Alloy/Ni+Au
Insulator Special PPS (Polyphenylene Sulfide Fiberglass Filled Thermoplastic) Mechanical Operations Up To 2500 Cycles
Insulation Resistance 1 000 ΜΩ Min Proof Voltage Tested At 1 200 V DC
Leave a Message
Product Description

HW-22Y0202N



The CMM MICRO CONNECTOR interconnection system is a 2mm pitch connector (square matrix) witch proven high reliability under the most extreme environmental conditions:

- Flexible architecture: “Board to Board”, “Board to Wire”and “Wire to Wire”configuration

- Modular and hybrid design:mixed layout full option with Low Frequency - LF(over 5 Amp)-and High Frequency-

   HF-(over 11 GHz)and High Power -HP-(over 30 Amp)

- High reliability contact design&High performance under harsh use conditions

- Secure:integral jacking mechanism or locking by spring latch



How to order.



CMM RANGE



USE



STRAIGHT ON PCB



90° ON PCB



STRAIGHT SMT



90° SMT



CRIMP



1000/200

Male



Y

L=3,0

YL

L=4,5

YM

L=5,1

YX

L=9,1



V

L=3,0

VL

L=4,5

T

L=2,25

T

L=3,35

R

L=0,9

C

Gauge 22

S

Gauge

24-28

Female



Y

L=3,0

YL

L=4,5



YC

L=1,2

PF

Press fit

V

L=3,0

VL

L=4,5

T

L=2,25

T

L=3,35

R

L=0,9

C

Gauge 22

S

Gauge

24-28

220



Male



Y

L=3,0

YL

L=4,5

YM

L=5,1

YX

L=9,1



V

L=3,0

VL

L=4,5

T

L=2,25

T

L=3,35

R

L=0,9

C

Gauge 22

S

Gauge

24-28

Female



Y

L=3,0

YL

L=4,5



YC

L=1,2

PF

Press fit

V

L=3,0

VL

L=4,5

T

L=2,25

T

L=3,35

R

L=0,9

C

Gauge 22

S

Gauge

24-28

320

Male



Y

L=3,0

YL

L=4,5

YM

L=5,1

YX

L=9,1



V

L=3,0

VL

L=4,5



C

Gauge 22

S

Gauge

24-28

Female



Y

L=3,0

YL

L=4,5



PF

Press fit

V

L=3,0

VL

L=4,5



C

Gauge 22

S

Gauge

24-28

340

Male



Y

L=3,0

YL

L=4,5

YM

L=5,1

YX

L=9,1



V

L=3,0

VL

L=4,5



C

Gauge 22

S

Gauge

24-28

Female



Y

L=3,0

YL

L=4,5



PF

Press fit

V

L=3,0

VL

L=4,5



C

Gauge 22

S

Gauge

24-28



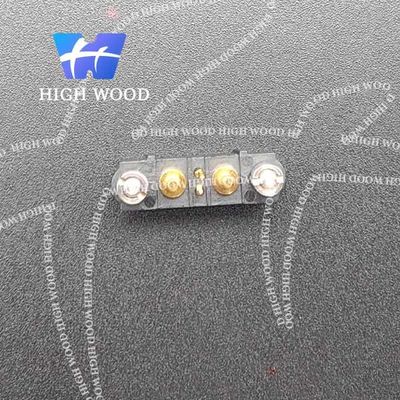

Product pictures:

HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors 0HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors 1HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors 2HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors 3



CMM 320/340 MALE AND FEMALE THREADED FIXING HARDWARE

REFERENCE

ASSEMBLY ON PCB

OVERALL DIMENSIONS

RECOMMENDATION

H01





H01C

HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors 4

HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors 5

HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors 6

H01/H01C :

CMM female :

Y-YL-S-C-E (D :straight)

CMM male :

Y-YL-S-C-E(D : straight)



H08 PCB :

1 min. / 2 max.

H08M PCB :

2 min. / 3 max.

H08L PCB :

3 min. / 4 max



HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors 7 HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors 8

H08/H08M/H08L :

CMM female :

V-VL-S-C-E (D : 90°)

CMM male :

V-VL-R-S-C-E (D : 90°)





ELECTRICAL

All contacts

3 A max.@25℃

2.2A max.@85℃

Working voltage(see level) Tested at 800 V DC
Proof voltage Tested at 1 200 V DC
Contact resistance(initially) max .10 mΩ
Insulation resistance 1 000 ΜΩ min.



MATERIALS:



INSULATOR:Special PPS (Polyphenylene Sulfide Fiberglass filled thermoplastic)UL 94-V0

HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors 9Radiation resistance

HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors 10No humidity absorption

HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors 11Oxygen free

Note :PPS characteristics are recognized for space applications



P.C.LF CONTACTS: Female:

Male: Body:copper alloy/Ni+Au 0,2 µ

Tail:copper alloy/Ni+Au flash 0,1 µ Socket:beryllium copper/Ni+Au>1,25 µ

Contact area:copper alloy/Ni+Au>1 µ



P.C.LF CONTACTS:

Male: Female:

Tail:copper alloy/Ni+Au>1 µ Body:copper alloy/Ni+Au 0,2 µ

Socket:beryllium copper/Ni+Au>1,25 µ



FIXING HARDARE:

HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors 12 Jackscrew:Stainless steel.

HW-CMM Connector, HW-22Y0202N, HW-M80 Connectors Micron-D Connectors Nano-D Connectors 13 Latch:Beryllium copper/plated nickel

(CMM 100/200 series only)
