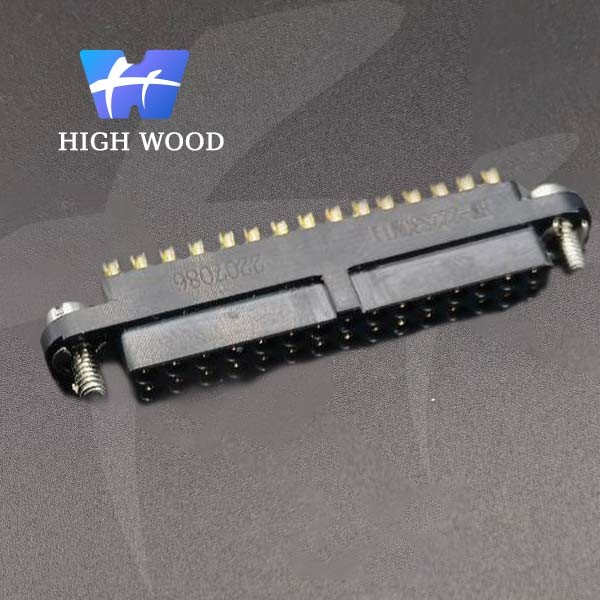

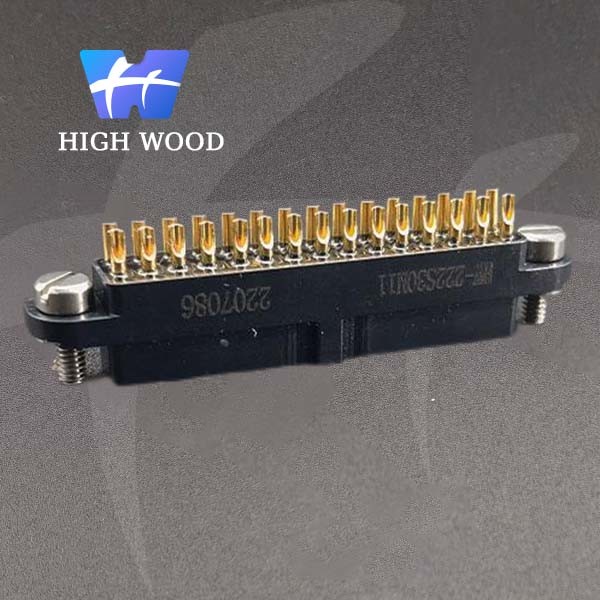

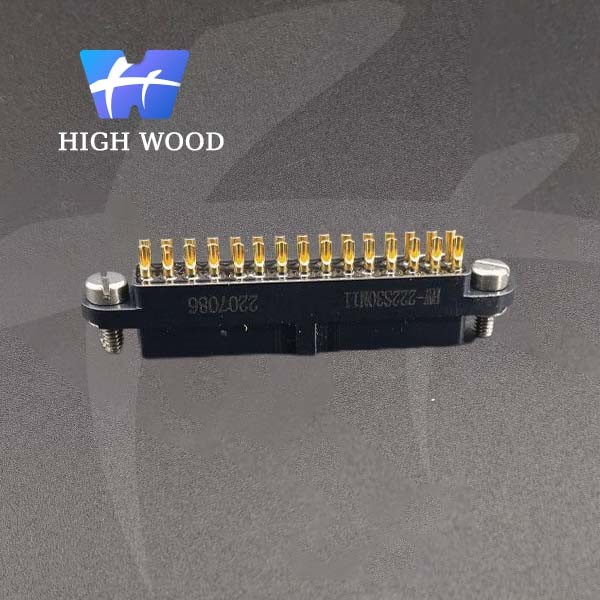

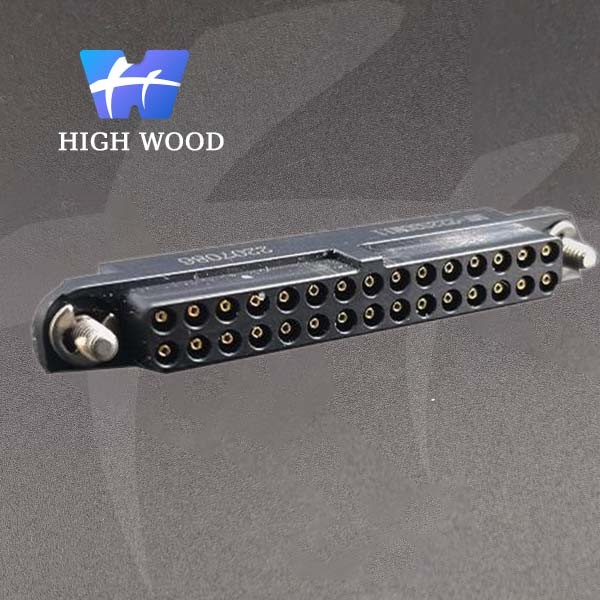

HW-CMM Connector, HW-222S30M11,MTL-55302F,2mm Pitch.

  • HW-CMM Connector, HW-222S30M11,MTL-55302F,2mm Pitch.
  • HW-CMM Connector, HW-222S30M11,MTL-55302F,2mm Pitch.
  • HW-CMM Connector, HW-222S30M11,MTL-55302F,2mm Pitch.
  • HW-CMM Connector, HW-222S30M11,MTL-55302F,2mm Pitch.
Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number HW-222S30M11-2207086
Minimum Order Quantity 100PCS
Price 10＄--150＄
Packaging Details standard export package
Delivery Time 2--9 weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P.C.LF CONTACTS(Male) Male:tail:copper Alloy/Ni+Au Flash 0,1µContact Area:copper Alloy/Ni+Au>1 µ MECHANICAL Mechanical Operations:Up To 2500 Cycles Contact Inssertion And Withdrawal Force:2 N Max./0.2n Min.oer Ciontact Contact Retention In Insulator:10 N Min Contact Replacement In Insulator:3 Cycles
INSULATOR Special PPS UL 94-V0 CRIMP LF CONTACTS Male: Body:copper Alloy/Ni+Au>1µ Female: Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ
P.C.LF CONTACTS(Female) Body:copper Alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ FIXING HARDARE Jackscrew:Stainless Steel Latch:Bertllium Copper/plated Nickel
Leave a Message
Product Description

HW-222S30M11

The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications,The CMM MICRO CONNECTOR interconnection system is a 2mm pitch connector (square matrix) witch proven high.




Part numbering:

HW-CMM Connector, HW-222S30M11,MTL-55302F,2mm Pitch. 0


TypeL
S24-28
C22


FIXING HARDWARE FOR CMM 220 FEMALE

REFERENCASSEMBLY ON PCBOVERALL DIMENSIONSRECOMMENDATION

M11


HW-CMM Connector, HW-222S30M11,MTL-55302F,2mm Pitch. 1

HW-CMM Connector, HW-222S30M11,MTL-55302F,2mm Pitch. 2


M11 :
CMM Female :
Y-YL-T-S-C-E
(D :straight)



MALE STRAIGHT ON CABLE P/N 30-33xx (solder or crimp)


LoadedUnloadedAmpereCable AØBØCLength D holeLength E bodyLength F conductorSolderCrimp by HX3 Hexagone size/DiesCrimp by AF8
   AWG 20AWG 18AWG 16AWG 14AWG 12
330530-33055A×    1,1mm

1,65
mm

6,2mm6,7mm4,5mmOKHex.1,9 mm/C14923OK
330830-33088A ×   1,35mm

1,85
mm

6,2mm6,7mm4,5mmOKHex.1,9 mm/C14923OK
331030-331010A×××  1,7mm 6,2mm6,7mm6mmOK OK
331530-331515A   × 2mm 6,2mm6,7mm6mmOK OK
332030-332020A    ×2,6mm 6,2mm6,7mm5,3mmOK OK


Ordering model:



HW-CMM Connector, HW-222S30M11,MTL-55302F,2mm Pitch. 3HW-CMM Connector, HW-222S30M11,MTL-55302F,2mm Pitch. 4
