MIL-DTL-38999 Series Ⅰ,Ⅱ,and Ⅲ Connectors, D3899924WD19PA D38999 Series Ⅲ
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPlating | Olive Green Cadmium Plating | Type Of Connector | Jam Nut Receptacle |
---|---|---|---|
Contact | Copper Alloy With Gold Plated | Endurance | 500 Cycles |
Type Of Contact | Crimp Socket | Insulator | Thermo-set Plastic |
D3899924WD19PA
Datasheets Download: MIL-DTL-38999 Series III Connectors-HW.pdf
This series of round connectors, compliant with MIL-DTL-38999 III series requirements, adopt Triple-start threaded quick connection, with an anti-loose mechanism, featuring small size, light weight, high-density contacts, EMI/RFI shielding, removable crimp contacts, and anti oblique-mating;
This product has a fireproof shell, a variety of coatings, and vibration performance of high strength under high temperature, suitable for use in harsh sandstorm and damp circumstances.the material of shell is optional in aluminum-alloy, naval brass, stainless steel or composite.
How to order:
D38999/ | 20 | W | B | 35 | P | N |
Basic series | ||||||
Type of connector 20 = Square flange receptacle 24 = Jam nut receptacle 26 = Shielding plug |
||||||
Finish W = Olive green cadmium plating F = Electroless nickel plating T = Marine Bronze (copper aluminium alloy) K = Stainless steel passivated L = Black anodized J = Composite material + W M = Composite material + F |
||||||
Shell size 09 (A), 11 (B), 13 (C), 15 (D), 17 (E), 19 (F), 21 (G), 23 (H), 25 (J) |
||||||
Contact layout (See below) | ||||||
Type of contact P = Crimp pin S = Crimp socket PL = Long PCB pin PC = Short PCB pin SL = Long PCB socket SC = Short PCB socket |
||||||
Orientation N = Normal A, B, C, D = Alternative |

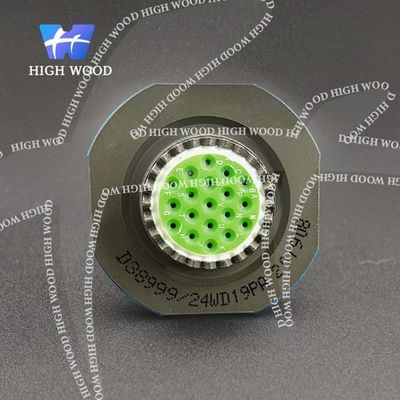

Product pictures:
Shell size:
Shell No. | A | B (max) |
C (max) |
D (max) | E (max) | F | G Thread | d | p |
09 | 16.50 | 9.90 | 3.20 | 30.50 | 24.00 | 27.00 | M12*1-6g | 17.70 | 16.99 |
11 | 19.30 | 9.90 | 3.20 | 35.20 | 27.00 | 31.80 | M15*1-6g | 20.88 | 19.53 |
13 | 24.00 | 9.90 | 3.20 | 38.40 | 32.00 | 34.90 | M18*1-6g | 25.58 | 24.26 |
15 | 27.20 | 9.90 | 3.20 | 41.60 | 36.00 | 38.10 | M22*1-6g | 28.80 | 27.53 |
17 | 30.40 | 9.90 | 3.20 | 44.80 | 37.00 | 41.30 | M25*1-6g | 31.98 | 30.68 |
19 | 33.40 | 9.90 | 3.20 | 49.30 | 41.00 | 46.00 | M28*1-6g | 35.15 | 33.86 |
21 | 36.50 | 9.90 | 3.20 | 52.70 | 46.00 | 49.20 | M31*1-6g | 38.28 | 37.06 |
23 | 39.70 | 9.90 | 3.20 | 55.90 | 50.00 | 52.40 | M34*1-6g | 41.50 | 40.24 |
25 | 42.80 | 9.90 | 3.20 | 59.00 | 51.23 | 55.60 | M37*1-6g | 44.68 | 43.41 |
Electrical:
Contact resistance and current rating:
Contact ID | Diameter (mm) | Resistance (mΩ) | Current (A) |
22D# | Φ 0.76 | ≤ 12.0 | 5.0 |
20# | Φ 1.00 | ≤ 5.0 | 7.5 |
16# | Φ 1.60 | ≤ 2.5 | 13.0 |
12# | Φ 2.40 | ≤ 1.5 | 23.0 |
10# | Φ 3.15 | ≤ 1.0 | 40.0 |
EMI shielding:
At 1GHz: minimum attenuation 85dB (F and W) At 10GHz: minimum attenuation 65dB (F)
At 10GHz: minimum attenuation 50dB (W)
Withstanding voltage (V):
Service rating | M | I | II | N |
Sea level | 1300 | 1800 | 2300 | 1000 |
21000m | 800 | 1000 | 1000 | 600 |
Insulation resistance:
Normal ≥ 5000 MΩ, damp heat ≥ 100 MΩ Electrical continuity between shells:
W class ≤ 2.5 mΩ, F class ≤ 1.0 mΩ, K class ≤ 5.0 mΩ
Mechanical:
Shell: Aluminum alloy, stainless steel or copper-alloy Plating:
W class: Olive green cadmium plating K class: Stainless steel passivated
F class: Electroless nickel plating
Insulator: Thermo-set plastic
Grommet and seal: Silicon rubber
Contact: Copper alloy with gold plated
Endurance: 500 cycles
Vibration:Sine: 60g, with temperature cycling and simulated accessory (36 hours)
Random: 44.1 grms in high temperature
49.5 grms in ambient temperature
Shock: At 3 ms half sinusoid, peak value of acceleration: 300g
Contact retention:
22D#, 45N 20#, 67N 16#, 111N 12#, 111N 10#, 111N 8#, 111N
Jam nut receptacle (D38999/24)
