J30J SERIES glass sintered gas sealed rectangular electrical connector, J30JM1-25ZKHY-Q6-1

J30JM1-25ZKHY-Q6-1 Glass sintered gas sealed rectangular electrical connector

THE J30J SERIES CONNECTOR FEATURES:

• Product characteristics
  ■ Specifications are 5, 9, 11, 13, 15, 21, 25, 31, 37 core nine specifications
  ■ Twisted wire twist needle, contact spacing is 1.27mm, row spacing is 1.1mm.
  ■ Product features: high density, miniaturization, high reliability
  ■ Wire suitable for 0.1mm2 ~ 0.15mm2
  ■ The product performance meets the requirements of GJB2446, equivalent to the US military standard MIL-DT-83513
  ■ Implementation standards

         Technical characteristics
          ■ Ambient temperature: -55℃ ~ +125℃
          ■ Vibration: 10Hz ~ 2000Hz 196m/s2
          ■ Random vibration: power spectral density 0.4G2/Hz total speed root mean square value of 23.1G
          ■ Impact: 735m/s2 11ms
          ■ Rated current: 3A
          ■ Contact resistance: ≤10mΩ
          ■ Insulation resistance: ≥5000MΩ 500VDC
          ■ Medium voltage: 600V
          ■ Mechanical life: 500 times

How to order:

① Main name code :J30J
② Series modification: B- matching plug with glass sintering
M1- glass sintering gas seal type
③ Number of contact parts :5, 9, 11, 13, 15, 21, 25, 31, 37
④ Types of connectors and contacts:
TJ A plug insert pin TK- Plug insert jack
ZK- Socket jack ZJ- Seat pin
⑤ end form:
Unmarked - crimped wire
H-welding (H, H1, H2, HY, HV9- see product outline)
N Insert the printed board
⑥ Lock type :L, L90, L24, F24, L60 (see product outline)
⑦ Series code: Q1, Q2, Q3, Q41, Q51, Q6, Q8, Q9, Q45A, Q60A (See product outline for details)

Contact layout:

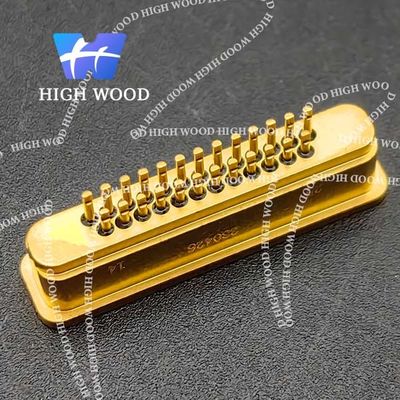

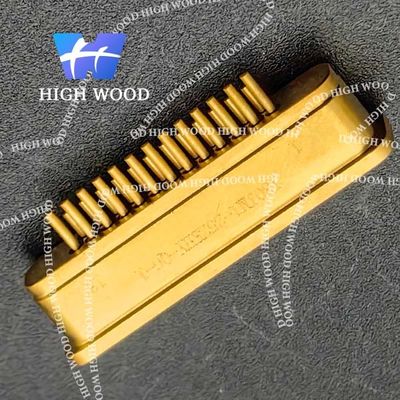

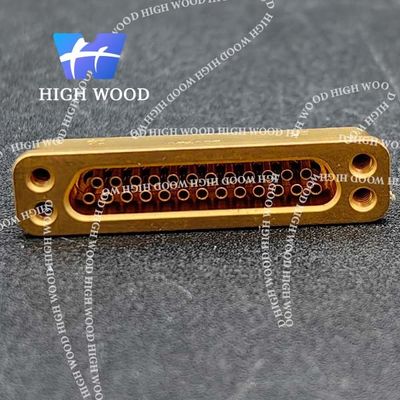

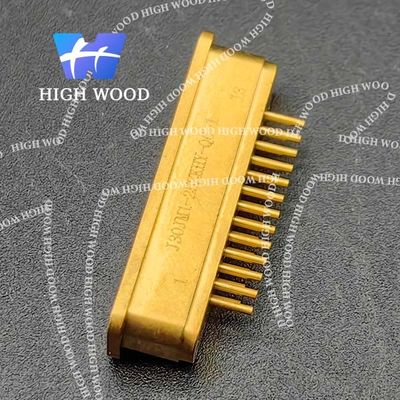

Product showing:
