J30JB SERIES glass sintered gas sealed rectangular electrical connector, J30JB-9TJL-Q9

Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number J30JB-9TJL-Q9
Minimum Order Quantity 100PCS
Price 10$--150$
Packaging Details standard export package
Delivery Time 2--9 weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature -55℃~+125℃ Salt Spray 96h
Rated Current 3A Mating Times 500 Cycle
Contact Resistance ≤ 10mΩ Shock Acceleration 735m/s²
Leave a Message
Product Description

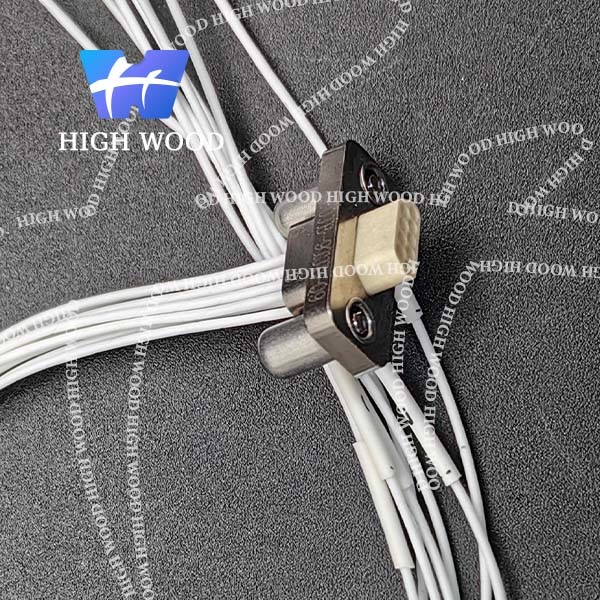

J30JB-9TJL-Q9 Glass sintered gas sealed rectangular electrical connector



THE J30JB SERIES CONNECTOR FEATURES:

  • Product characteristics
    ■ Specifications are 5, 9, 11, 13, 15, 21, 25, 31, 37 core nine specifications
    ■ Twisted wire twist needle, contact spacing is 1.27mm, row spacing is 1.1mm.
    ■ Product features: high density, miniaturization, high reliability
    ■ Wire suitable for 0.1mm2 ~ 0.15mm2
    ■ The product performance meets the requirements of GJB2446, equivalent to the US military standard MIL-DT-83513
    ■ Implementation standards

         Technical characteristics
          ■ Ambient temperature: -55℃ ~ +125℃
          ■ Vibration: 10Hz ~ 2000Hz 196m/s2
          ■ Random vibration: power spectral density 0.4G2/Hz total speed root mean square value of 23.1G
          ■ Impact: 735m/s2 11ms
          ■ Rated current: 3A
          ■ Contact resistance: ≤10mΩ
          ■ Insulation resistance: ≥5000MΩ 500VDC
          ■ Medium voltage: 600V
          ■ Mechanical life: 500 times



How to order:

J30JB SERIES glass sintered gas sealed rectangular electrical connector, J30JB-9TJL-Q9 0

① Main name code :J30J
② Series modification: B- matching plug with glass sintering
M1- glass sintering gas seal type
③ Number of contact parts :5, 9, 11, 13, 15, 21, 25, 31, 37
④ Types of connectors and contacts:
TJ A plug insert pin TK- Plug insert jack
ZK- Socket jack ZJ- Seat pin
⑤ end form:
Unmarked - crimped wire
H-welding (H, H1, H2, HY, HV9- see product outline)
N Insert the printed board
⑥ Lock type :L, L90, L24, F24, L60 (see product outline)
⑦ Series code: Q1, Q2, Q3, Q41, Q51, Q6, Q8, Q9, Q45A, Q60A (See product outline for details)



Contact layout:

J30JB SERIES glass sintered gas sealed rectangular electrical connector, J30JB-9TJL-Q9 1



Product showing:

J30JB SERIES glass sintered gas sealed rectangular electrical connector, J30JB-9TJL-Q9 2J30JB SERIES glass sintered gas sealed rectangular electrical connector, J30JB-9TJL-Q9 3J30JB SERIES glass sintered gas sealed rectangular electrical connector, J30JB-9TJL-Q9 4J30JB SERIES glass sintered gas sealed rectangular electrical connector, J30JB-9TJL-Q9 5
