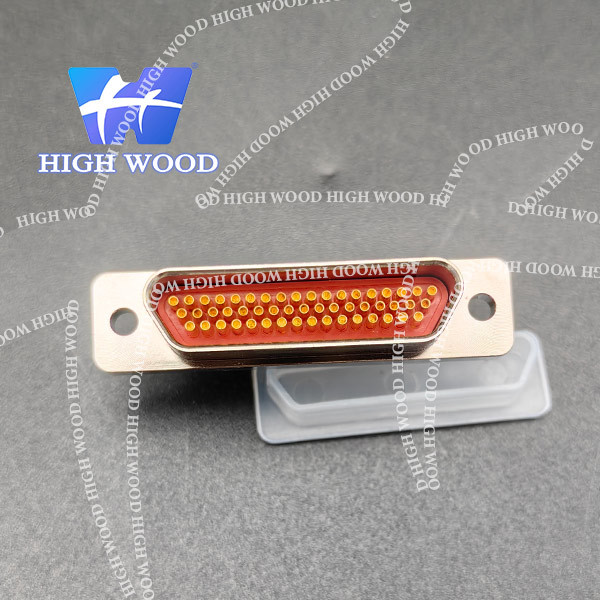

HWW-J30JHT-51ZKSA,1.91X1.91MM

Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number HWW-J30JHT-51ZKSA
Minimum Order Quantity 100PCS
Price 10$--150$
Packaging Details standard export package
Delivery Time 2--9 weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ambient -55 ~ +125°C Relative +40°C Attain 95%
Vibrate 10~ 2000Hz 294m/s2 Mediator Resistant Oneself 800V
Mechanical Life 500 Salt Fog Time 96h
Leave a Message
Product Description

HWW-J30JHT-51ZKSA:



  • Number of cores: 9,15,21,25,31,37, A51,51,69,100 cores have ten specififica.
  • Use stranded elastic needle (twist needle) with high contact density.
  • The tail end form has the swing line type, the welding cup type, the straight insert printed plate type.
  • The products are small in size, light in weight, high contact density and high serializatn
  • The locking components of this family of products shall be assembled together with the order requirements.
  • If not necessary, the locking components shall be indicated in the contract.
  • The product performance meets the requirements of the GJB2446.
  • Implementation Standard: Q / FY QJ0022-2016 Detailed Specifification for J30JHT Series
  • Micro Rectangular Electrical Connectors.




 Part numbering





HWW-J30JHT-51ZKSA,1.91X1.91MM 0



1 Principal:J30J



2 Shell structure and materials:Electroless nickel plating on aluminum alloy,Casing flflange hole diameter (9-69 core is 02.31,100 core is 3.7)



3 Number of contacts:9,15,21,25,31,37,A51,51,69 ,100


4 Connector and contact parts type:TJ- Plug insert pin; ZK- Socket with jack

5 Form of the end of the contact:
Type I: 00- Sling type, crimping wire wire gauge AWG26 (wire brand, length on demand)
CA- Sling type, crimped C55/0112-26 conductor, sling length 450mm.
CB- Sling type, crimped C55/0112-26 conductor, sling length 900mm.
Type II: SA- welding cup type
ND -- In-line printed board, pin length 2.77mm,9-37 core spacing 2.54mm
x row spacing 1.91mm. 51-100 core spacing 1.91mm x 1.91mm.
ND -- In-line printed board, pin length 3.56mm,9-37 core spacing 2.54mm
x row spacing 1.91mm. 51-100 core spacing 1.91mm x 1.91mm.
ND -- In-line printed board, pin length 4.37mm,9-37 core spacing 2.54mm
x row spacing 1.91mm. 51-100 core spacing 1.91mm x 1.91mm.

6 Type of locking component:
000- without locking assembly;
Type B - Free end locking assembly, thread #2-56UNC-2A, 100 cores for 9-69 cores
Use thread #4-40UNC-2A (refer to locking attachment in product family tree);
Type N - Free end locking assembly, thread #2-56UNC-2B, 100 cores for 9-69 cores
Use thread #4-40UNC-2B (refer to locking attachment in product family tree);

7 Tail cover accessories Category:
Type I: Not indicated - without tail cover attachment
Type II: With plastic tail cover attachment
SF has been inserted into the printed board, 9, 15, 21, 25, 31, 37 core pins for 4 rows.
Type III: Accessories with metal tail cover (see product pedigree for details)

8 Plastic tail Cover Type:
Unsympathetic - No plastic tail cover
Type K - Through hole for mounting of tail cover (in-line printed board only)





MAIN TECHNICAL FEATURES



Ambient



-55 ~ +125°C



Contactresistance



≤ 10Ω



Relative



+40°C attain 95%



Insulation resistance



≥5000 Ω



Vibrate



10~ 2000Hz 294m/s2



Mediator resistant oneself



800V

Lash



980m/s2





Mechanical life



500

Accelerated



735m/s2

Instantaneous time



≤1μs



Rated

current



3A

Salt fog time



96h






CONTACT ARRANGEMENT (FROM THE BUTT END)



HWW-J30JHT-51ZKSA,1.91X1.91MM 1










Product showing



HWW-J30JHT-51ZKSA,1.91X1.91MM 2HWW-J30JHT-51ZKSA,1.91X1.91MM 3HWW-J30JHT-51ZKSA,1.91X1.91MM 4HWW-J30JHT-51ZKSA,1.91X1.91MM 5
