Product Details
Operating Temperature Range -55 ℃ ~ +200 ℃ Material Aluminium-alloy, Copper-alloy Or Stainless Steel
Anti-RFI At Frequency 100 ~ 1000 MHz, Leakage Attenuation: 65~45dB. Durability ≥ 500 Mating Cycles
Shock Max Acceleration 294 M/s2 Random Vibration Frequency 10 Hz ~ 2000 Hz At 196 M/s2
Highlight

connector mil c 26482

,

mil c 26482 circular

,

mil c 26482 circular connectors
Leave a Message
Product Description

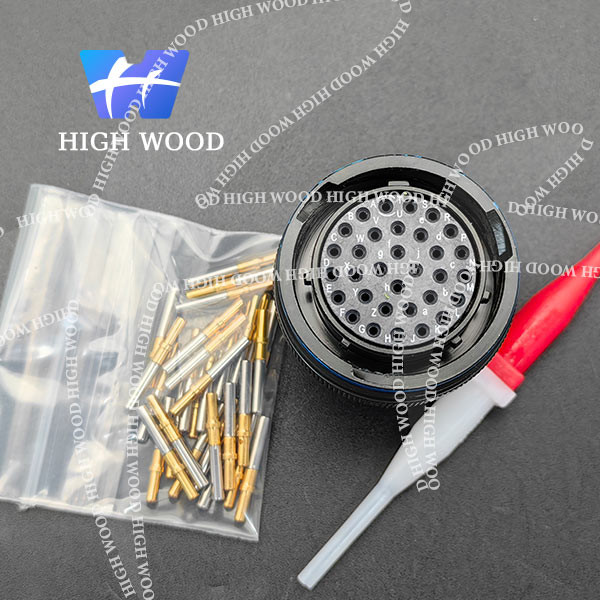

MS3476W18-32S,MIL-C-26482Ⅱ,MS26482 seriesⅡ

MIL-C-26482 series II connector is the upgrade to MIL-C-26482 Series I. They are designed
as bayonet coupling, rear-removable crimp contact, medium contact density, mating hermetic
and RFI shielding.
This family of circular connectors is offered 3 kinds of material shell, 9 kinds of size shell,
4 kinds of finish, 2 plug styles, 4 receptacle-mounting styles, 3 kinds of contact and more
than 30 kinds of contact layout.
Widely used on commercial, military and aerospace systems, etc.

How to order.
  MS 3474 W 18     -06 P N
Basic series

Type of shell
3470 = Narrow flange receptacle
3471 = Cable connecting receptacle
3472 = Wide flange receptacle
3474 = Jam nut receptacle
3475 = RFI shielding plug
3476 = Straight plug



Finish
A = Black anodized
L = Electroless nickel plating
W = Olive drab cadmium plating
S = Stainless steel passivated
B = Olive green cadmium plating



Shell size
08, 10, 12, 14, 16, 18, 20, 22, 24


Contact layout (see next page)

Contact
P = Pin
S = Socket
PL = PCB pin
SL = PCB socket



Orientation
N, W, X, Y, Z


Product showing.
MS26482 Connector, MS3476W18-32S, MIL-C-26482Ⅱ, MS26482 SeriesⅡ 0MS26482 Connector, MS3476W18-32S, MIL-C-26482Ⅱ, MS26482 SeriesⅡ 1MS26482 Connector, MS3476W18-32S, MIL-C-26482Ⅱ, MS26482 SeriesⅡ 2MS26482 Connector, MS3476W18-32S, MIL-C-26482Ⅱ, MS26482 SeriesⅡ 3


Shell size.

Shell No. D1 D2
08 19.7 0.5000-20
10 23.5 0.6250-24
12 27.0 0.7500-20
14 30.5 0.8750-20
16 34.0 1.0000-20
18 35.3 1.0625-18
20 39.3 1.1875-18
22 43.0 1.3125-18
24 46.0 1.4375-18





Contact.

Contact NO. Diameter (mm) Cross section area of cable (mm²) Resistance (mΩ) Current (A)



20#



Φ 1.00

 0.20



≤ 5

 3.0
0.30 5.0
0.50 7.5



16#



Φ 1.59

 0.50



≤ 3

 7.5
0.80 10.0
1.25 13.0



12#



Φ 2.39

 2.00



≤ 2

 17.0
3.15 23.0



Straight plug (MS3475/MS3476)

MS26482 Connector, MS3476W18-32S, MIL-C-26482Ⅱ, MS26482 SeriesⅡ 4

Contact layout

MS26482 Connector, MS3476W18-32S, MIL-C-26482Ⅱ, MS26482 SeriesⅡ 5
