MIL-DTL-38999 Series Ⅰ,Ⅱ,And Ⅲ Connectors, D38999/24WE26PLN. D38999 Series Ⅲ

Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number D38999/24WE26PLN
Minimum Order Quantity 100pcs
Price 10$-150$ each
Packaging Details Standard export package
Delivery Time 2-9weeks
Payment Terms T/T, L/C, Western Union
Supply Ability 100,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Plating Olive Green Cadmium Plating Type Of Connector Jam Nut Receptacle
Contact Copper Alloy With Gold Plated Endurance 500 Cycles
Type Of Contact Crimp Socket Insulator Thermo-set Plastic
Leave a Message
Product Description

D38999/24WE26PLN



This series of round connectors, compliant with MIL-DTL-38999 III series requirements, adopt Triple-start threaded quick connection, with an anti-loose mechanism, featuring small size, light weight, high-density contacts, EMI/RFI shielding, removable crimp contacts, and anti oblique-mating;

This product has a fireproof shell, a variety of coatings, and vibration performance of high strength under high temperature, suitable for use in harsh sandstorm and damp circumstances.the material of shell is optional in aluminum-alloy, naval brass, stainless steel or composite.



How to order:

MIL-DTL-38999 Series Ⅰ,Ⅱ,And Ⅲ Connectors, D38999/24WE26PLN. D38999 Series Ⅲ 0











Shell size:



Jam nut receptacle (D38999/26)



MIL-DTL-38999 Series Ⅰ,Ⅱ,And Ⅲ Connectors, D38999/24WE26PLN. D38999 Series Ⅲ 1





Electrical:



Contact resistance and current rating

Contact ID Diameter (mm) Resistance (mΩ) Current (A)
22D# Φ 0.76 ≤ 12.0 5.0
20# Φ 1.00 ≤ 5.0 7.5
16# Φ 1.60 ≤ 2.5 13.0
12# Φ 2.40 ≤ 1.5 23.0
10# Φ 3.15 ≤ 1.0 40.0





EMI shielding:



At 1GHz: minimum attenuation 85dB (F and W) At 10GHz: minimum attenuation 65dB (F)

At 10GHz: minimum attenuation 50dB (W)



Withstanding voltage (V)

Service rating M I II N
Sea level 1300 1800 2300 1000
21000m 800 1000 1000 600



Insulation resistance:



Normal ≥ 5000 MΩ, damp heat ≥ 100 MΩ Electrical continuity between shells:

W class ≤ 2.5 mΩ, F class ≤ 1.0 mΩ, K class ≤ 5.0 mΩ

Mechanical:

Shell: Composite material
Finish: J class: Olive green
cadmium plating M class: Electroless nickel plating Insulator: Thermo-set
plastic
Grommet and seal: Silicon rubber
Contact: Copper alloy gold plating
Endurance: ≥ 1500 cycles Shock: At 3 ms half sinusoid, peak value of acceleration: 300 g



Environmental:

MIL-DTL-38999 Series Ⅰ,Ⅱ,And Ⅲ Connectors, D38999/24WE26PLN. D38999 Series Ⅲ 2

Contact layout:

MIL-DTL-38999 Series Ⅰ,Ⅱ,And Ⅲ Connectors, D38999/24WE26PLN. D38999 Series Ⅲ 3

MIL-DTL-38999 Series Ⅰ,Ⅱ,And Ⅲ Connectors, D38999/24WE26PLN. D38999 Series Ⅲ 4



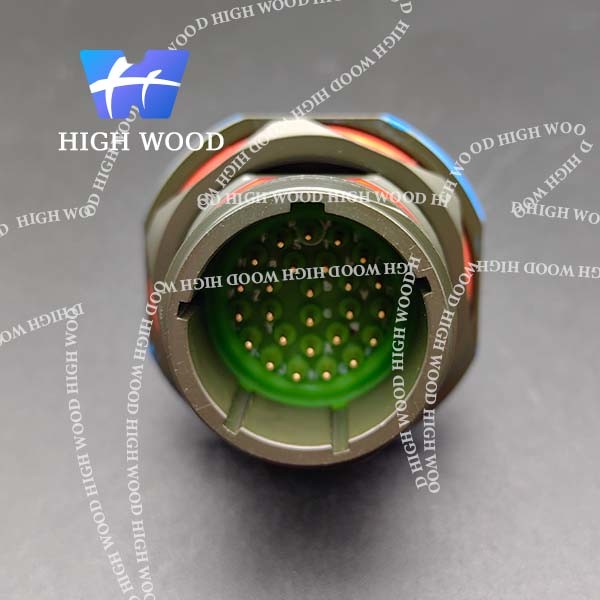

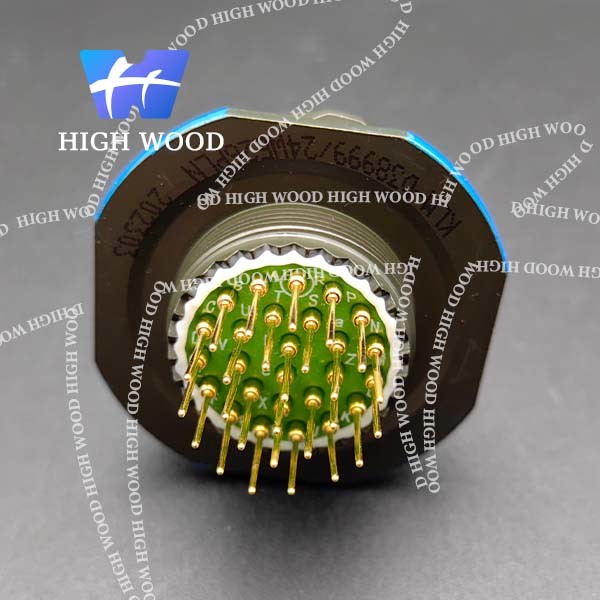

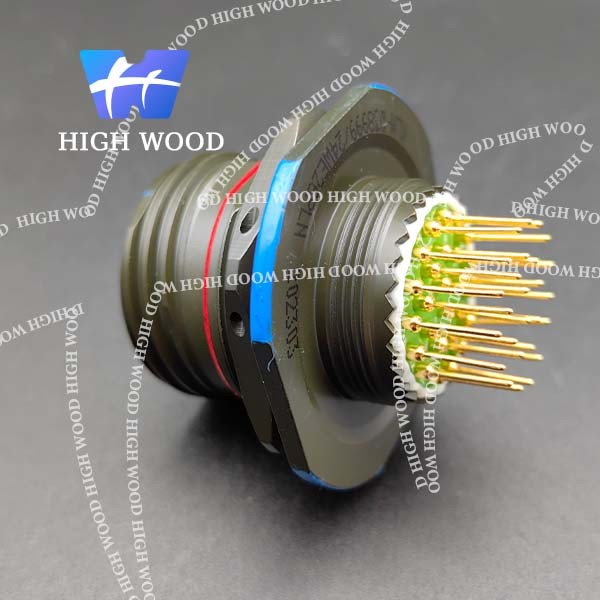

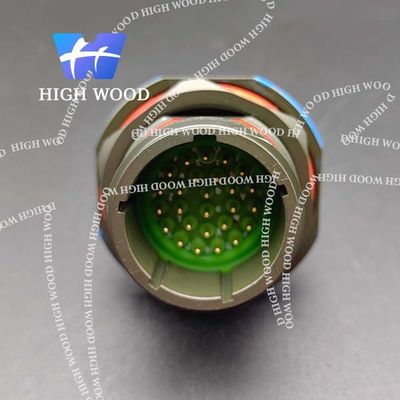

Product pictures:



MIL-DTL-38999 Series Ⅰ,Ⅱ,And Ⅲ Connectors, D38999/24WE26PLN. D38999 Series Ⅲ 5

MIL-DTL-38999 Series Ⅰ,Ⅱ,And Ⅲ Connectors, D38999/24WE26PLN. D38999 Series Ⅲ 6

MIL-DTL-38999 Series Ⅰ,Ⅱ,And Ⅲ Connectors, D38999/24WE26PLN. D38999 Series Ⅲ 7

MIL-DTL-38999 Series Ⅰ,Ⅱ,And Ⅲ Connectors, D38999/24WE26PLN. D38999 Series Ⅲ 8
