J30J SERIES MICRO-D Rectangular Connectors, J30J-31TJWP7-J

  • J30J SERIES MICRO-D Rectangular Connectors, J30J-31TJWP7-J
  • J30J SERIES MICRO-D Rectangular Connectors, J30J-31TJWP7-J
  • J30J SERIES MICRO-D Rectangular Connectors, J30J-31TJWP7-J
  • J30J SERIES MICRO-D Rectangular Connectors, J30J-31TJWP7-J
Place of Origin China
Brand Name HIGH WOOD
Certification AS9001
Model Number J30J-31TJWP7-J
Minimum Order Quantity 100PCS
Price 10＄--150＄
Packaging Details standard export package
Delivery Time 2--9 weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature -55℃～+125℃ Salt Spray 96h
Rated Current 3A Mating Times 500 Cycle
Contact Resistance ≤ 10mΩ Shock Acceleration 735m/s²
High Light

MICRO-D Connectors 3A

,

J30J-31TJWP7-J
Leave a Message
Product Description

J30J-31TJWP7-J

The product has the advantages of high density, lightweight and miniaturization, which can realize the reliable interconnection of the electrical circuit system from cable to cable, cable to printed board, and between printed board and printed board.

The product can withstand strong vibration, shock and other harsh operating environment, especially suitable for the use of space, equipment lightweight has special requirements for the use of the occasion.



THE J30J SERIES CONNECTOR FEATURES:

  • Conforms to GJB2446A (equivalent to MIL-C-83513)
  • Male pin is twist pin
  • High-density contact, spacing 1.27mm
  • metal shield shell, equivalent to the American MDM series
  • There are 11 specifications including 9-144 cores
  • There are tail end changes that apply to the hole spacing of the printed board
  • Implement enterprise standards:

                 J30J series ordinary products: 21E0.204.118JT

                 J30JM series rubber seal products: Q/21EJ618

                 J30J series glass sintering seal products: Q/21EJ1001



How to order:

J30J X -X ZK/TJ X X -X X X

Basic series

J30J -Basic type

J30JC-Nickel copper plating

(weldable)

J30JS-Passivation of stainless steel

(not weldable)



Serial variant

Unmarked: Basic type

A:Quick lock

E:The connector housing height is

reduced from the basic type

M:Rubber sealing product

R :Contact pin,Jack are mounted in

reverse

Number of contacts:

9,15,21,25,31,37,51,66,74,100,144 Core

Electrical connector type:

ZK:The socket is equipped with a jack,TJ:The plug is inserted into the pin

ZJ:The socket is equipped with a pin, TK:The plug is inserted into a jack

Contact end form:

No mark-Type of crimping

S - Type of Welding

N,N3,N8,N12-Horizontal PCB model, the grid spacing of PCB is 2.54×2.54,

in which type N is the basic type product

W-90° PCB model, the grid spacing of PCB is 2.54×2.54

Type of locking and mounting components:

No mark - Default locking component((Type L with wire or welded plug , type P with wire or welded socket, type P7 with 90°PCB products and type P5 with horizontal PCB products)

Y-No locking component is provided

Common locking components - such as L, K, P, etc., see the locking component type and instructions

Modified product identification(If it is multiple, write in alphabetical order, such as -AD, -JQ, etc.) :

A -The product conductor is covered with wave proof sleeve, and the tail has a clamping plate

D -The shell is added with anti-rotating structure

D2 -Screw compression spring and screw locking structure, plug matching clamp wire

J -printed board grid spacing changed to 1.27×2.54

Q,Q8 -Shell flange is widened

R4,Q4-The locking structure adopts the spring fast locking structure

Attachment identification:

A1-Tail clamp accessories (only suitable for wire pressing and welding products)

A3-Tail clamp accessories (only suitable for wire pressing and welding products)

Specific requirements for conductors:

Including wire cross-sectional area, color, length, external protection, etc., (Only suitable for pressed wire products)



Product showing:

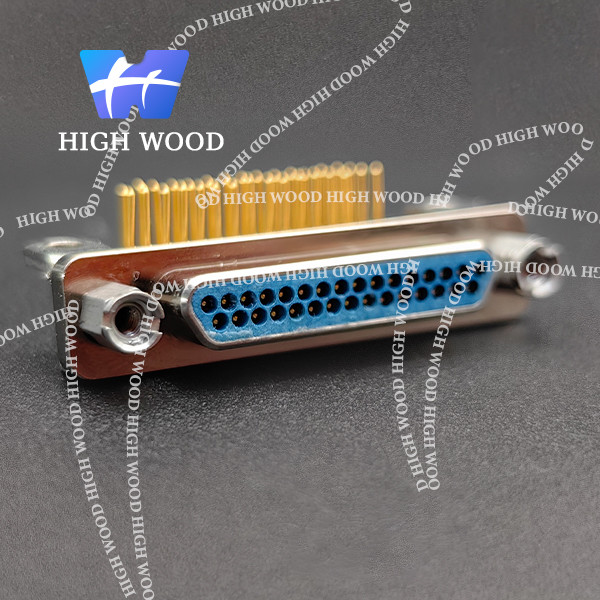

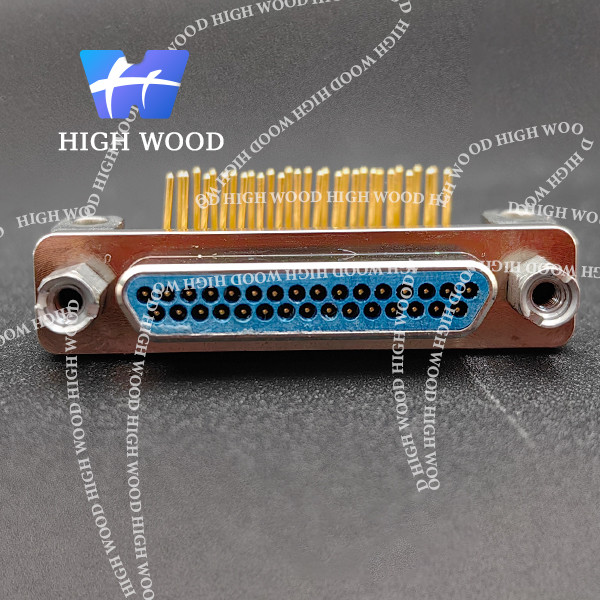

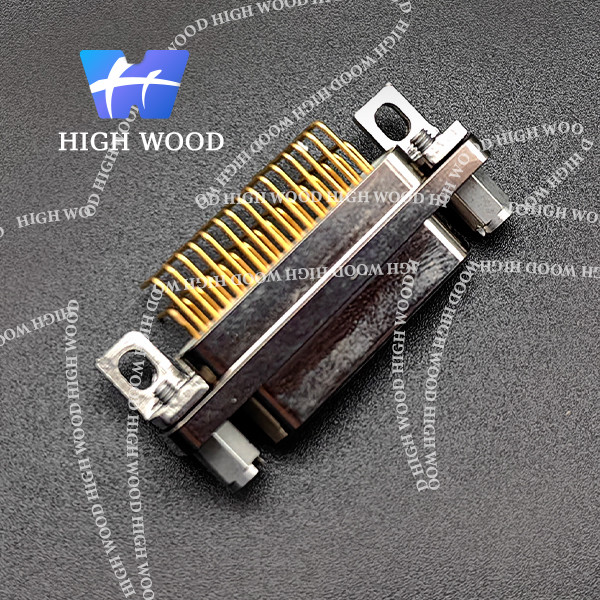

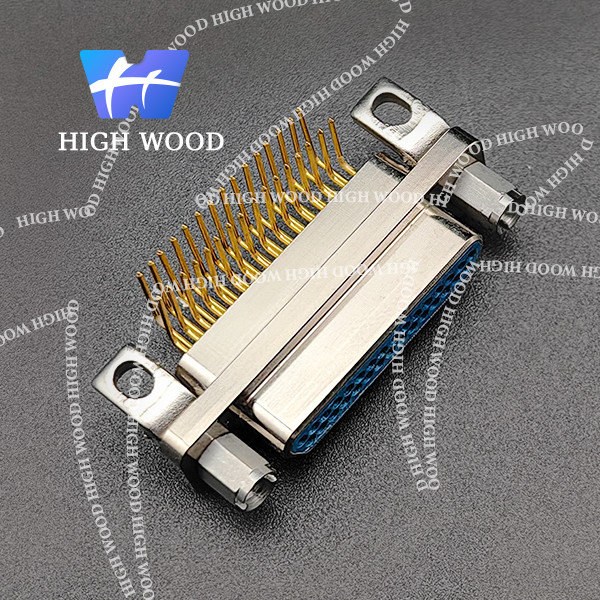

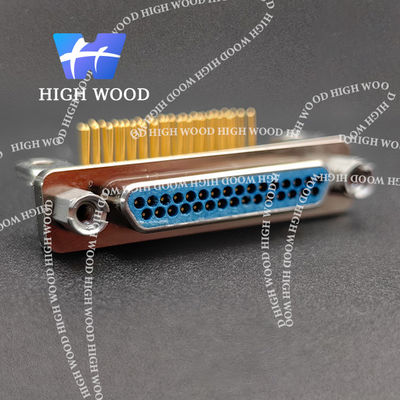

J30J SERIES MICRO-D Rectangular Connectors, J30J-31TJWP7-J 0J30J SERIES MICRO-D Rectangular Connectors, J30J-31TJWP7-J 1J30J SERIES MICRO-D Rectangular Connectors, J30J-31TJWP7-J 2J30J SERIES MICRO-D Rectangular Connectors, J30J-31TJWP7-J 3



Contact arrangement

J30J SERIES MICRO-D Rectangular Connectors, J30J-31TJWP7-J 4




Tags:

144 cores Rectangular Connectors

J30J-66TJWP7

J30J-66ZKP3
