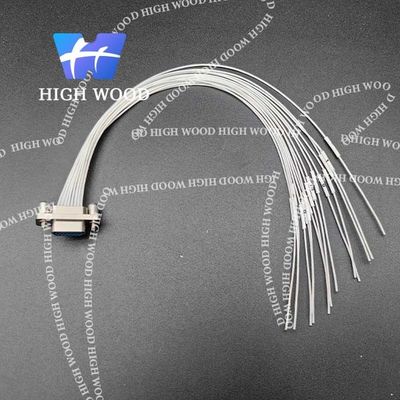

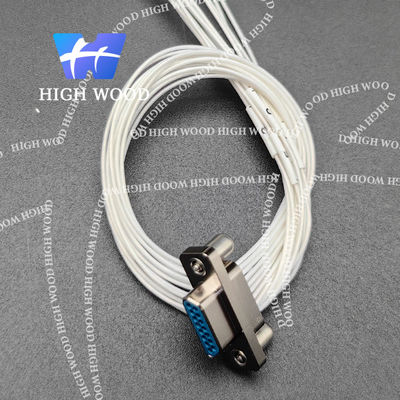

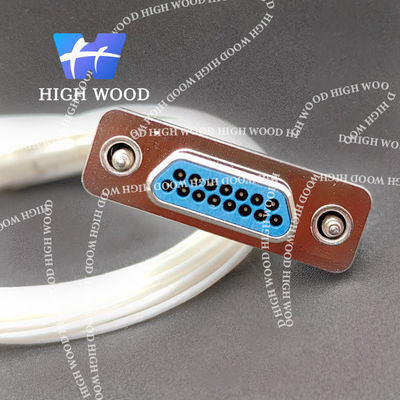

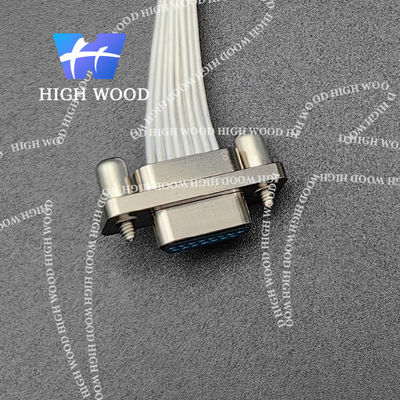

J30J-15TJL L=200

Product Introduction:

1,Conforms to GJB2446A (equivalent to MIL-C-83513)

2,Male pin is twist pin

3,High-density contact, spacing 1.27mm

4,metal shield shell, equivalent to the American MDM series

5,There are 11 specifications including 9-144 cores

6,There are tail end changes that apply to the hole spacing of the printed board

7,Implement enterprise standards:

J30J series ordinary products: 21E0.204.118JT

J30JM series rubber seal products: Q/21EJ618

J30J series glass sintering seal products: Q/21EJ1001

How to order:

1. Series main code: J30J

2. Number of contacts:9,15,21,25,31,37,51,66,74,100,144

3. Type of electrical connector; TJ means plug pin, ZK means socket hole (optional)

4. Locking and installation component type: Common locking component, see locking component type and instructions (optional)

5. Identification of modified product: no identification -- ordinary J30J crimped product, A-- lengthened shell with tail clip (when the cable requires overall shielding, select P in section 13 of the model, then the wave proof sleeve is connected with the tail clip and the shell)

6. Number of contacts: The number shall be consistent with that in Section 2 of the model

7. Type of electrical connector; TJ means plug pin, ZK means socket hole (optional)

8. Lock and install component type: Common lock component, see lock component type and instructions (optional)

9. Identification of modified products: no identification -- ordinary J30J crimped products, A-- the shell is lengthened with tail wire clip (when the cable requires overall shielding, type 13 section J30J 1-
×2 ×3 ×4× / 5 ×6 ×7 ×8 ×9(0.12 10 white 11 L300 12 ×13 ×) 14 Select P, then the wave proof sleeve is connected with the tail clip and the shell)

10. Wire specification: 0.07, 0.1, 0.12, 0.14, 0.15 (optional)

11. Conductor color: white, black, green, brown, blue, red, gray, yellow, etc. (optional)

12. Length of wire: The length is determined by the user. L300 means the length of wire between the two ends of the shell is 300mm (excluding the shell).

13.     Coat wave cover: no mark -- cable does not cover wave cover, P-- cable coat wave cover

14.     Nylon jacket: No logo -- cable without nylon jacket,F-- cable jacket nylon jacket (military green)Model naming example

a. Both ends are J30J-15TJL, the conductor is AFR-250-1*0.12-250V white conductor, the length of wire is 200mm, without wave proof sleeve and nylon silk sleeve, the model is: J30J-15TJL/15TJL(0.12 White L200)；

b. One end is J30J-15TJL-A, the other end is J30J-15ZKP-A, and the conductor is AFR-250-1*0.1-250V red conductor, the length of the conductor is 500mm, with a wave proof sleeve and no nylon silk sleeve, the model is: J30J-15TJL-A/15ZKP-A(0.1 red L500P)；

c. One end is J30J-15ZKL7, the other end is J30J-15ZKP4, the conductor is AFR-250-1*0.07-250V black conductor, the length of the conductor is 500mm, with nylon silk sleeve without wave proof sleeve, then the model is: "J30J-15ZKL7/15ZKP4(0.07 black L500F)"；

d. One end is J30J-15TJL-A, the other end is J30J-15TJK-A, the conductor is AFR-250-1*0.15-250V blue conductor,the length of the conductor is 800mm, with wave proof sleeve and nylon silk sleeve, then the model is: J30J-15TJL-A/15TJK-A(0.15 blue L800PF)
