MS26482 Connector,MS3474W16-23SN,MIL-C-26482Ⅱ,MS26482 seriesⅡ

Place of Origin CHINA
Brand Name HIGH WOOD
Certification AS9001
Model Number MS3474W16-23SN
Minimum Order Quantity 100PCS
Price 10$-150$
Packaging Details standard expect package
Delivery Time 2-9weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Durability ≥ 500 Mating Cycles Operating Temperature Range -55 ℃ ~ +200 ℃
Shock Max Acceleration 294 M/s2 Anti-RFI At Frequency 100 ~ 1000 MHz, Leakage Attenuation: 65~45dB.
Random Vibration Frequency 10 Hz ~ 2000 Hz At 196 M/s2 Material Aluminium-alloy, Copper-alloy Or Stainless Steel
Leave a Message
Product Description

MS3474W16-23SN,MIL-C-26482Ⅱ,MS26482 seriesⅡ

MIL-C-26482 series II connector is the upgrade to MIL-C-26482 Series I. They are designed
as bayonet coupling, rear-removable crimp contact, medium contact density, mating hermetic
and RFI shielding.
This family of circular connectors is offered 3 kinds of material shell, 9 kinds of size shell,
4 kinds of finish, 2 plug styles, 4 receptacle-mounting styles, 3 kinds of contact and more
than 30 kinds of contact layout.
Widely used on commercial, military and aerospace systems, etc.

How to order.
 MS3474W18   -06PN
Basic series

Type of shell
3470 = Narrow flange receptacle
3471 = Cable connecting receptacle
3472 = Wide flange receptacle
3474 = Jam nut receptacle
3475 = RFI shielding plug
3476 = Straight plug



Finish
A = Black anodized
L = Electroless nickel plating
W = Olive drab cadmium plating
S = Stainless steel passivated
B = Olive green cadmium plating



Shell size
08, 10, 12, 14, 16, 18, 20, 22, 24


Contact layout (see next page)

Contact
P = Pin
S = Socket
PL = PCB pin
SL = PCB socket



Orientation
N, W, X, Y, Z

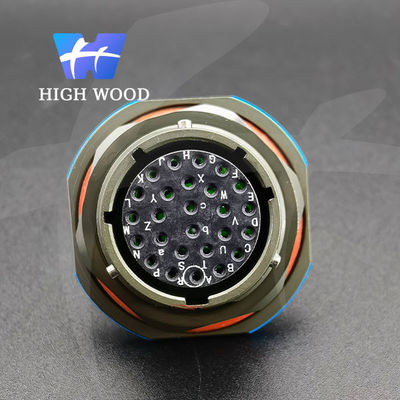

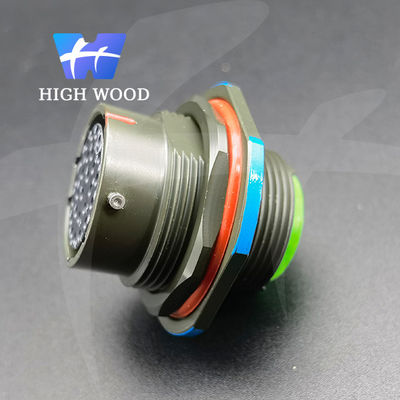

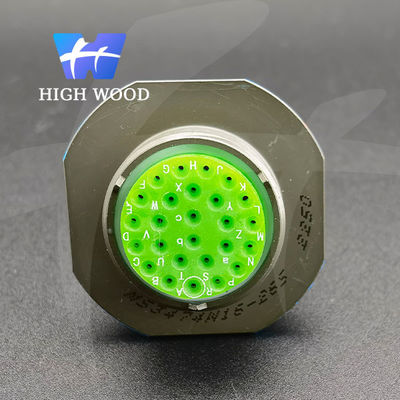

Product showing.
MS26482 Connector,MS3474W16-23SN,MIL-C-26482Ⅱ,MS26482 seriesⅡ 0
MS26482 Connector,MS3474W16-23SN,MIL-C-26482Ⅱ,MS26482 seriesⅡ 1
MS26482 Connector,MS3474W16-23SN,MIL-C-26482Ⅱ,MS26482 seriesⅡ 2
MS26482 Connector,MS3474W16-23SN,MIL-C-26482Ⅱ,MS26482 seriesⅡ 3
MS26482 Connector,MS3474W16-23SN,MIL-C-26482Ⅱ,MS26482 seriesⅡ 4


Shell size.
Shell NO.D1D2
0819.70.5000-20
1023.50.6250-24
1227.00.7500-20
1430.50.8750-20
1634.01.0000-20
1835.31.0625-18
2039.31.1875-18
2243.01.3125-18
2446.01.4375-18






Contact.

Contact NO.Diameter (mm)Cross section area of cable (mm²)Resistance (mΩ)Current (A)



20#



Φ 1.00

0.20



≤ 5

3.0
0.305.0
0.507.5



16#



Φ 1.59

0.50



≤ 3

7.5
0.8010.0
1.2513.0



12#



Φ 2.39

2.00



≤ 2

17.0
3.1523.0



 Contact layout.

 MS26482 Connector,MS3474W16-23SN,MIL-C-26482Ⅱ,MS26482 seriesⅡ 5
