Product Details
Plating Olive Green Cadmium Plating Type Of Connector Jam Nut Receptacle
Contact Copper Alloy With Gold Plated Endurance 500 Cycles
Type Of Contact Crimp Pin Insulator Thermo-set Plastic
Leave a Message
Product Description

D38999/24WA35PN

This series of round connectors, compliant with MIL-DTL-38999 III series requirements, adopt Triple-start threaded quick connection, with an anti-loose mechanism, featuring small size, light weight, high-density contacts, EMI/RFI shielding, removable crimp contacts, and anti oblique-mating;

This product has a fireproof shell, a variety of coatings, and vibration performance of high strength under high temperature, suitable for use in harsh sandstorm and damp circumstances.the material of shell is optional in aluminum-alloy, naval brass, stainless steel or composite.



How to order:

D38999/ 20 W B 35 P N
Basic series
Type of connector
20 = Square flange receptacle
24 = Jam nut receptacle
26 = Shielding plug
Finish
W = Olive green cadmium plating
F = Electroless nickel plating
T = Marine Bronze (copper aluminium alloy)
K = Stainless steel passivated
L = Black anodized
J = Composite material + W
M = Composite material + F
Shell size
09 (A), 11 (B), 13 (C), 15 (D), 17 (E), 19 (F), 21 (G), 23 (H), 25 (J)
Contact layout (See below)
Type of contact
P = Crimp pin
S = Crimp socket
PL = Long PCB pin
PC = Short PCB pin
SL = Long PCB socket
SC = Short PCB socket
Orientation
N = Normal
A, B, C, D = Alternative



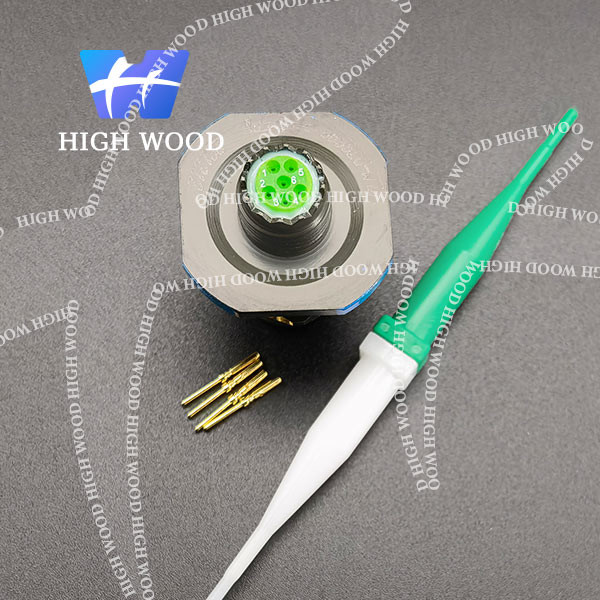

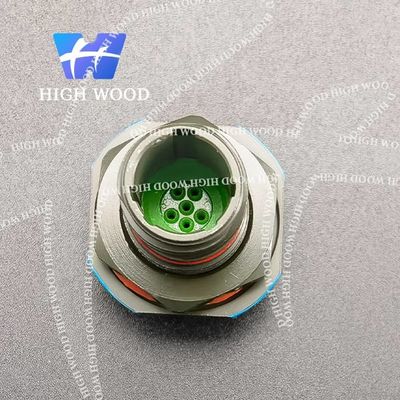

Product pictures:

MIL-DTL-38999 Series Ⅰ,Ⅱ,and Ⅲ Connectors, D38999/24WA35PN. D38999 Series Ⅲ 0MIL-DTL-38999 Series Ⅰ,Ⅱ,and Ⅲ Connectors, D38999/24WA35PN. D38999 Series Ⅲ 1MIL-DTL-38999 Series Ⅰ,Ⅱ,and Ⅲ Connectors, D38999/24WA35PN. D38999 Series Ⅲ 2MIL-DTL-38999 Series Ⅰ,Ⅱ,and Ⅲ Connectors, D38999/24WA35PN. D38999 Series Ⅲ 3







Shell size:

Shell No. A B (max)

C (max)

D (max) E (max) F G Thread d p
09 16.50 9.90 3.20 30.50 24.00 27.00 M12*1-6g 17.70 16.99
11 19.30 9.90 3.20 35.20 27.00 31.80 M15*1-6g 20.88 19.53
13 24.00 9.90 3.20 38.40 32.00 34.90 M18*1-6g 25.58 24.26
15 27.20 9.90 3.20 41.60 36.00 38.10 M22*1-6g 28.80 27.53
17 30.40 9.90 3.20 44.80 37.00 41.30 M25*1-6g 31.98 30.68
19 33.40 9.90 3.20 49.30 41.00 46.00 M28*1-6g 35.15 33.86
21 36.50 9.90 3.20 52.70 46.00 49.20 M31*1-6g 38.28 37.06
23 39.70 9.90 3.20 55.90 50.00 52.40 M34*1-6g 41.50 40.24
25 42.80 9.90 3.20 59.00 51.23 55.60 M37*1-6g 44.68 43.41







Electrical:

Contact resistance and current rating:

Contact ID Diameter (mm) Resistance (mΩ) Current (A)
22D# Φ 0.76 ≤ 12.0 5.0
20# Φ 1.00 ≤ 5.0 7.5
16# Φ 1.60 ≤ 2.5 13.0
12# Φ 2.40 ≤ 1.5 23.0
10# Φ 3.15 ≤ 1.0 40.0





EMI shielding:

At 1GHz: minimum attenuation 85dB (F and W) At 10GHz: minimum attenuation 65dB (F)

At 10GHz: minimum attenuation 50dB (W)



Withstanding voltage (V):

Service rating M I II N
Sea level 1300 1800 2300 1000
21000m 800 1000 1000 600



Insulation resistance:

Normal ≥ 5000 MΩ, damp heat ≥ 100 MΩ Electrical continuity between shells:

W class ≤ 2.5 mΩ, F class ≤ 1.0 mΩ, K class ≤ 5.0 mΩ

Mechanical:

Shell: Aluminum alloy, stainless steel or copper-alloy Plating:

W class: Olive green cadmium plating K class: Stainless steel passivated

F class: Electroless nickel plating

Insulator: Thermo-set plastic

Grommet and seal: Silicon rubber

Contact: Copper alloy with gold plated

Endurance: 500 cycles

Vibration:Sine: 60g, with temperature cycling and simulated accessory (36 hours)

Random: 44.1 grms in high temperature

               49.5 grms in ambient temperature

Shock: At 3 ms half sinusoid, peak value of acceleration: 300g

Contact retention:

22D#, 45N 20#, 67N 16#, 111N 12#, 111N 10#, 111N 8#, 111N

Jam nut receptacle (D38999/24)

MIL-DTL-38999 Series Ⅰ,Ⅱ,and Ⅲ Connectors, D38999/24WA35PN. D38999 Series Ⅲ 4



Contact layout:

MIL-DTL-38999 Series Ⅰ,Ⅱ,and Ⅲ Connectors, D38999/24WA35PN. D38999 Series Ⅲ 5

MIL-DTL-38999 Series Ⅰ,Ⅱ,and Ⅲ Connectors, D38999/24WA35PN. D38999 Series Ⅲ 6
