MS26482 Connector,MS3475W8-98S,MIL-C-26482Ⅱ，MS26482 seriesⅡ
| Place of Origin | CHINA |
|---|---|
| Brand Name | HIGH WOOD |
| Certification | AS9001 |
| Model Number | MS3475W8-98S |
| Minimum Order Quantity | 100PCS |
| Price | 10＄-150＄ |
| Packaging Details | standard expect package |
| Delivery Time | 2-9weeks |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100，000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Durability | ≥ 500 Mating Cycles | Operating Temperature Range | -55 ℃ ~ +200 ℃ |
|---|---|---|---|
| Shock | Max Acceleration 294 M/s2 | Random Vibration | Frequency 10 Hz ~ 2000 Hz At 196 M/s2 |
| Anti-RFI | At Frequency 100 ~ 1000 MHz, Leakage Attenuation: 65~45dB. | Material | Aluminium-alloy, Copper-alloy Or Stainless Steel |
Product Description
MS3475W8-98S,MIL-C-26482Ⅱ,MS26482 seriesⅡ
MIL-C-26482 series II connector is the upgrade to MIL-C-26482 Series I. They are designed
as bayonet coupling, rear-removable crimp contact, medium contact density, mating hermetic
and RFI shielding.
This family of circular connectors is offered 3 kinds of material shell, 9 kinds of size shell,
4 kinds of finish, 2 plug styles, 4 receptacle-mounting styles, 3 kinds of contact and more
than 30 kinds of contact layout.
Widely used on commercial, military and aerospace systems, etc.
How to order.
| MS | 3474 | W | 18 | -06 | P | N | ||||
| Basic series | ||||||||||
Type of shell | ||||||||||
Finish | ||||||||||
Shell size | ||||||||||
| Contact layout (see next page) | ||||||||||
Contact | ||||||||||
Orientation | ||||||||||

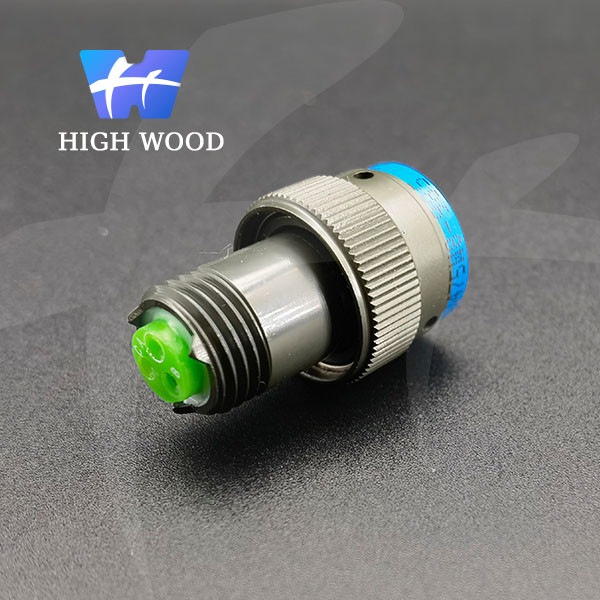

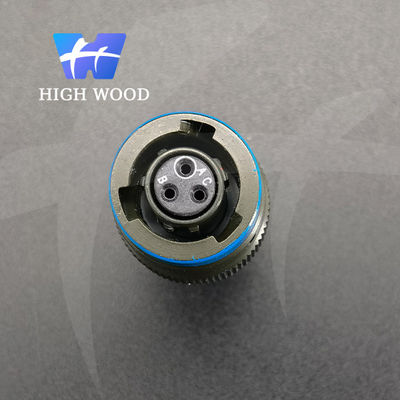

Product showing.
Shell size.
| Shell NO. | D1 | D2 |
| 08 | 19.7 | 0.5000-20 |
| 10 | 23.5 | 0.6250-24 |
| 12 | 27.0 | 0.7500-20 |
| 14 | 30.5 | 0.8750-20 |
| 16 | 34.0 | 1.0000-20 |
| 18 | 35.3 | 1.0625-18 |
| 20 | 39.3 | 1.1875-18 |
| 22 | 43.0 | 1.3125-18 |
| 24 | 46.0 | 1.4375-18 |
Contact.
| Contact NO. | Diameter (mm) | Cross section area of cable (mm²) | Resistance (mΩ) | Current (A) |
20# |
Φ 1.00 | 0.20 |
≤ 5 | 3.0 |
| 0.30 | 5.0 | |||
| 0.50 | 7.5 | |||
16# |
Φ 1.59 | 0.50 |
≤ 3 | 7.5 |
| 0.80 | 10.0 | |||
| 1.25 | 13.0 | |||
12# |
Φ 2.39 | 2.00 |
≤ 2 | 17.0 |
| 3.15 | 23.0 |
