Double Coaxial Fiber Optic Connectors 4 Contacts Plug J599 / A8 Aluminum Alloy

Place of Origin Nanjing
Brand Name HighWood
Certification AS9100, Military Standard System Certification
Model Number J599/A8
Minimum Order Quantity 150 pcs
Price USD 50~100 $
Packaging Details Standard packing
Delivery Time 15 days
Payment Terms T/T, Western Union
Supply Ability 1000pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum Alloy Plating Stainless Steel Passivated
Waterproof IP68 Salt Spray Test ≧1000hours
Usage ScenarioUsage Scenario Light Weight,Signal Transmission, Anti-corrosion, High Reliability Endurances 500 Cycles
Operating Temperature -40℃~85℃ Construction Kaida's J
High Light

fiber optic plug

,

military fiber optic connectors

Leave a Message
Product Description

Datasheet download:

J599A8 Series.pdf



Part number:J599/A8



Product features:

Perform corporate standards:Apply to the GJB599A(MIL - DTL - 38999) Ⅲ, ARINC801 standard performance.

The outer shell can be made of different materials and coated to meet different environmental requirements.

Five key positioning, blind insertion and anti - insertion function Three - thread quick connection with anti - trip mechanism.

The contact parts are precisely butted by ceramic insert and sleeve A variety of tail variations are available.

There are adapter socket (optional gas seal) form, get rid of the cable bondage.

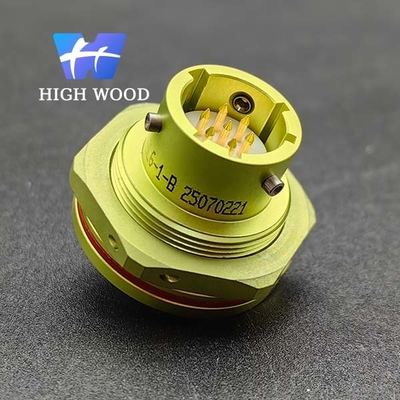

Double Coaxial Fiber Optic Connectors 4 Contacts Plug J599 / A8 Aluminum Alloy 0

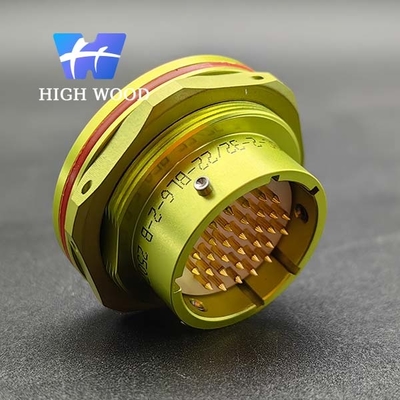

Double Coaxial Fiber Optic Connectors 4 Contacts Plug J599 / A8 Aluminum Alloy 1

Double Coaxial Fiber Optic Connectors 4 Contacts Plug J599 / A8 Aluminum Alloy 2

Double Coaxial Fiber Optic Connectors 4 Contacts Plug J599 / A8 Aluminum Alloy 3



Basic series                   J599/A8    24 Y B C1 2 N M
Type 20-Square Socket   24-Nut fastening socket
Plating W-Aluminum alloy Olive green cadmium plating
F-Aluminum alloy nickel plating
K-Stainless steel passivated
Y-Stainless steel passivated(Gas seal)
Shell NO 11 13 15 17 19 21 23 25
A B C D E F G H
Contact layout See below picture
Type of contacts C1-Fiber optic needle through the wall
Orientation N = Normal A, B, C, D = Alternative
Transfer mode M-multimode(62.5/125) M1-multimode(50/125)
MIV-Multimode high-speedOM3(50/125)



Shell no MS Shell no A Maximum B Maximum C Maximum D Screw E F G H J d1Minimum d2Minimum
11 B 20.7 13.15 2.5 M15×1-6g 26.2 20.6 18.3 3.25 4.93 20.22 15.88
13 C 20.7 13.15 2.5 M18×1-6g 28.6 23 20.6 3.25 4.93 23.42 19.05
15 D 20.7 13.15 2.5 M22×1-6g 31 24.6 23 3.25 4.93 26.59 23.01
17 E 20.7 13.15 2.5 M25×1-6g 33.3 27 24.6 3.25 4.93 30.96 25.81
19 F 20.7 13.15 2.5 M28×1-6g 36.5 29.4 27 3.25 4.93 32.94 28.98
21 G 19.9 13.25 3.2 M31×1-6g 39.7 31.8 29.4 3.25 4.93 36.12 32.16
23 H 19.9 13.25 3.2 M34×1-6g 42.9 34.9 31.8 3.91 6.15 39.29 34.93
25 J 19.9 13.25 3.2 M37×1-6g 46 38.1 34.9 3.91 6.15 42.47 37.69
