Product Details
Operating Temperature Range -55 ℃ ~ +125 ℃ Corrosion Resistance Class L Withstand 48 Hours Salt Spray And Others Withstand 500 Hours Salt Spray
Durability ≥ 500 Mating Cycles Shock Max Acceleration 490 M/s2
Material Aluminium-alloy, Copper-alloy Or Stainless Steel Random Vibration Frequency 10Hz ~ 2000Hz At 147 M/s2
Leave a Message
Product Description
MS3112E14-19P,MIL-C-26482Ⅰ,MS26482 seriesⅠ

Datasheets Download: MS26482 I-HW.pdf

MIL-C-26482 series I circular connector is designed for quick bayonet coupling, solder contact, small size and medium contact density.


This family of circular connectors is offered 3 kinds of shell of different material, 9 kinds of size Shell, 4 kinds of finishes, 6 plug styles, 18 receptacle-mounting styles, 3 kinds of contact and more than 30 kinds of contact layout.



Widely used on commercial, military and aerospace systems, etc.



How to order.
MS 3110 E 18 -32 P N L
Basic series
Type of shell
3110 = Wall mounting square receptacle
3111 = Cable connecting receptacle
3112 = Box mounting square receptacle
3114 = Jam nut receptacle
3116 = Straight plug
3117 = Thru bulkhead receptacle
Type
B = PCB
E = Grommet seal, conductive shell
F = Grommet seal, conductive shell with cable clamp
J = Hermetic cable, conductive shell
M = Waterproof
P = Hermetic encapsulation, conductive shell
R = Without back shell
Shell size
08, 10, 12, 14, 16, 18, 20, 22, 24
Contact layout (see below)
Contact
P = Pin
S = Socket
Orientation
N, W, X, Y, Z
Finish
Omit = Olive drab cadmium plating
A = Black anodized
B = Olive green cadmium plating
S = Stainless steel passivated
L = Electroless nickel plating


Product showing.




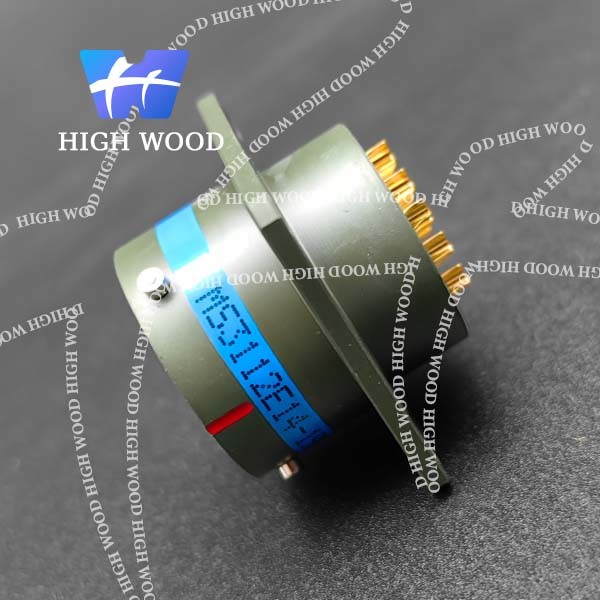

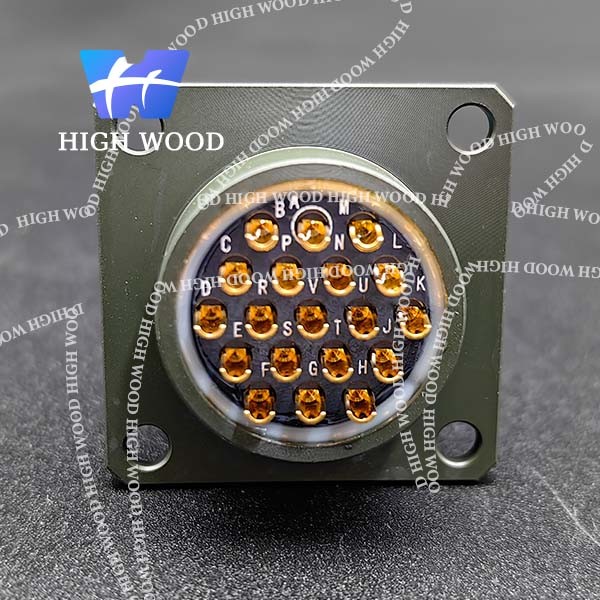

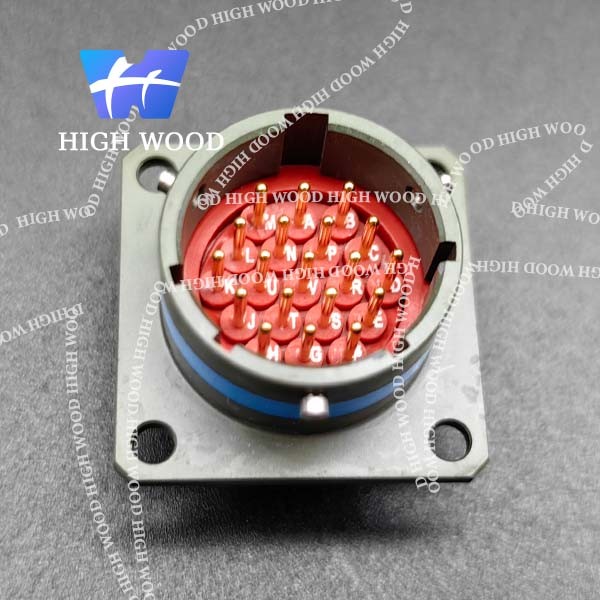

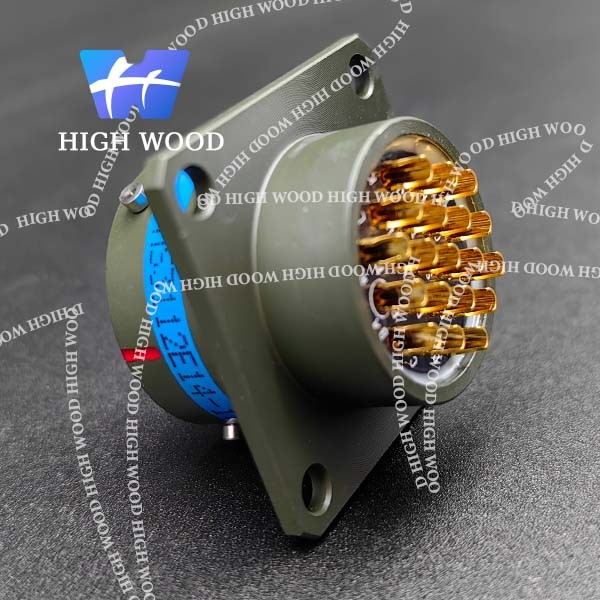

MS26482 Connector,MS3122E14-4SW,MS3112E14-19P，MS26482 seriesⅠ 0MS26482 Connector,MS3122E14-4SW,MS3112E14-19P，MS26482 seriesⅠ 1MS26482 Connector,MS3122E14-4SW,MS3112E14-19P，MS26482 seriesⅠ 2MS26482 Connector,MS3122E14-4SW,MS3112E14-19P，MS26482 seriesⅠ 3


Voltage rating (V)



Service rating

 Suggested operating voltage Test voltage
I II I II
Sea level 600 1000 1500 2300
22000 m 300 450 375 500


Contact.

Contact No. Diameter (mm) Resistance (mΩ) Current (A)
20 # Φ 1.00 ≤ 5 7.5
16 # Φ 1.59 ≤ 3 13.0
12 # Φ 2.39 ≤ 2 23.0



Tags:

M12 connector

M8 Connector

military power connectors
